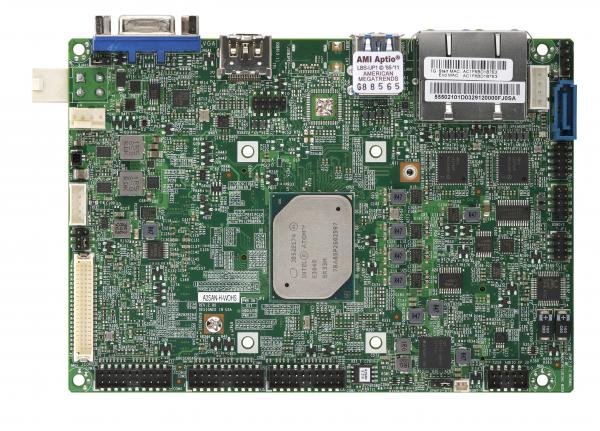

A2SAN-H-WOH,A2SAN-H w/o Heatsink,Apollo Lake E3940,DDR3L

MBD-A2SAN-H-WOHS-O
https://safeconsulting.no/web/image/product.template/10187/image_1920?unique=5e77b27

kr 2,549.55 2549.55 NOK kr 2,549.55

kr 2,549.55

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro MBD-A2SAN-H-WOHS-O is a 3.5" SBC featuring an Intel Atom processor E3940, dual LAN with Intel Ethernet Controller I210-IT, multiple I/O ports, and TPM 2.0 support. Ideal for embedded applications.

    Key Features

    • Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
    • Intel® Atom processor E3940 (9.5W, 4C)
    • Dual LAN with Intel® Ethernet Controller I210-IT
    • 1 M.2 B-Key 2280, 1 Full size Mini-PCIe, 1 SATA 3.0
    • Intel® Goldmont microarchitecture 14nm System-on-Chip
    • 2 USB3.0, 4 USB2.0, 6 COM ports, 8-bit GPIO, SMBus
    • Supports 12V DC power input
    • 1 HDMI, 1 VGA, 1 48-bit LVDS, Intel® HD Graphic 3 independent displays
    • Supports on board TPM 2.0

    Key Applications

    • Embedded systems
    • Industrial PCs
    • Digital signage
    • Automation
    • Kiosk systems

    Description

    The Supermicro MBD-A2SAN-H-WOHS-O motherboard is designed for robust embedded applications. Equipped with the Intel Atom processor E3940, it supports up to 8GB of 1866MHz DDR3L memory in a single SO-DIMM socket. The board includes dual LAN with Intel I210-IT controllers, a variety of expansion slots including M.2 and Mini-PCIe, and multiple I/O options such as USB 3.0, VGA, HDMI, and LVDS. Additionally, it features TPM 2.0 for enhanced security. The compact size (5.7" x 4") makes it perfect for space-constrained installations.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A2SAN-H-WOHS
    Physical Stats
    Form Factor
    • 3.5" SBC
    Dimension
    • 5.7" x 4" (14.6cm x 10.16cm)
    Processor
    CPU
    • Intel® Atom® Processor E3940
    • Single Socket FCBGA-1296 supported, CPU TDP supports Up to 9.5W TDP
    Core
    • Up to 4 cores, 4 threads / 2MB Cache
    Note
    System Memory
    Memory Capacity
    • 1 DIMM slots
    • Up to 8GB Unbuffered non-ECC SODIMM, DDR3-1866MT/s
    Memory Type
    • 1866 MT/s non-ECC DDR3 SODIMM Unbuffered DDR3L up to 8GB
    DIMM Sizes
    • 2GB, 4GB, 8GB
    Memory Voltage
    • 1.35V
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 1 SATA3 (6 Gbps) ports
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 Intel® HD Graphics port(s)
    Network Controllers
    • Dual LAN with Intel® Ethernet Controller I210IT
    Input / Output
    SATA
    • 1 SATA3 (6Gbps) port(s)
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 4 USB 2.0 port(s) (4 via header)
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 VGA port(s), 1 HDMI port(s), 1 48-bit LVDS port(s)
    Serial Port
    • 6 COM Port(s) (6 header)
    TPM
    • 1 TPM Chip
    Others
    • 1 8-bit GPIO header
    • 1 SMBus header
    • 1 System Fan
    • 1 Panel backlight power header
    • 1 Speaker
    • 1 HD Audio header (Mic-in/Headphone-out)
    Expansion Slots
    PCIe
    • 1 x Full size Mini-PCIe (USB2.0 x 1,PCIe Gen2 x 1)
    • 1 x M.2 2280 B-Key for SATA or PCIe SSD (2242/3042 B-key M.2 module is supported by extender bracket)
    M.2
    • M.2 Interface: SATA; PCIe 2.0 x1; USB 2.0
    • Form Factor: 2280
    • Key: B-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.0
    • SMBIOS 3.0
    • UEFI 2.5
    • PCI FW 3.0
    Management
    Software
    • SuperDoctor® 5, Watchdog
    System Management Software
    • SuperDoctor 5
    Power Configurations
    • ACPI Power Management, +12V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, System level control, 3.3V standby, +5V, +3.3V, +12V, +1.35V, VCGI
    LED
    • Standby alert LED
    Temperature
    • CPU thermal trip support
    FAN
    • 1x 4-pin fan header (up to 1 fan)
    • Thermal control tachometer fan connectors
    • System level control
    • PWM fan speed control
    • Low noise fan speed control
    • Fan speed control
    Other Features
    • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 4-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range
    • -30°C - 75°C (-22°F - 167°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    SATA cable
    CBL-SAST-08811SATA Data cable 25CM
    SATA Power Cable
    CBL-PWEX-09821SATA Power Cable 25cm
    Retail Package
    Audio Cable
    CBL-OTHR-09861Audio Cable 20cm
    COM Cable
    CBL-CUSB-09841COM Cable 20cm
    QRG
    MNL-1935-QRG1Motherboard Quick Reference Guide
    SATA cable
    CBL-SAST-08811SATA Data cable 25CM
    SATA Power Cable
    CBL-PWEX-09821SATA Power Cable 25cm
    USB Cable
    CBL-CUSB-09831USB2.0 cable 20cm

    Optional Part List

    Part Number Quantity Description
    M.2 Module bracket
    MCP-290-00161-0N1Bracket for add 2242/3042 module support
    Mini PCIe extended bracket
    MCP-110-00097-0N1Mini PCIe extended bracket to extend half size to full size
