    Summary Description

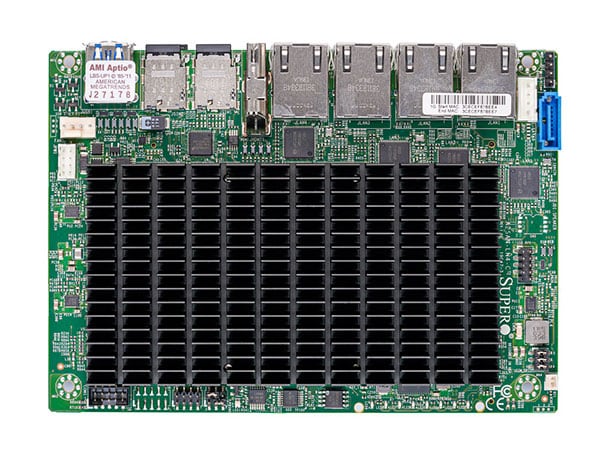

    The Supermicro MBD-A2SAN-LN4-C-O is a versatile 3.5" single board computer featuring the low-power Intel Celeron J3455 Processor. It supports up to 8GB of DDR3L memory, has multiple LAN ports, and a variety of expansion slots.

    Key Features

    • Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
    • Intel® Celeron® Processor J3455 (10W, 4C)
    • Quad LAN with Intel® Ethernet Controller I211-AT
    • Intel® Goldmont microarchitecture 14nm System-on-Chip
    • Supports 12V DC power input
    • 3 M.2 B-Key 2242/3042 with nano SIM slot, 1 M.2 E-Key 2230
    • 2 USB 3.0 ports, 2 USB 2.0 ports, 1 SATA 3.0, SMBus

    Key Applications

    • Embedded computing solutions
    • Industrial automation
    • Networking appliances
    • IoT devices
    • Digital signage
    • Mini servers
    • Kiosk systems

    Description

    The Supermicro MBD-A2SAN-LN4-C-O offers a compact yet powerful solution for a range of applications. Featuring the Intel Celeron J3455 Processor with 4 cores, 2MB cache, and a TDP of 10W, this SBC supports up to 8GB DDR3L memory in a single SO-DIMM slot. It includes 4 RJ45 Gigabit LAN ports, multiple USB ports, HDMI output, and several M.2 expansion slots for enhanced connectivity. Designed for low power consumption and high performance, it is ideal for embedded and industrial computing applications.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A2SAN-LN4-C
    Physical Stats
    Form Factor
    • 3.5" SBC
    Dimension
    • 5.87" x 4.17" (14.9cm x 10.6cm)
    Processor
    CPU
    • Intel® Celeron® Processor J3455
    • Single Socket FCBGA-1296 supported, CPU TDP supports Up to 10W TDP
    Core
    • Up to 4 cores, 4 threads / 2MB Cache
    Note
    System Memory
    Memory Capacity
    • 1 DIMM slots
    • Up to 8GB Unbuffered non-ECC SODIMM, DDR3-1866MT/s
    Memory Type
    • 1866 MT/s non-ECC DDR3 SODIMM Unbuffered DDR3L up to 8GB
    DIMM Sizes
    • 2GB, 4GB, 8GB
    Memory Voltage
    • 1.35V
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 1 SATA3 (6 Gbps) ports
    Graphics
    • 1 Intel® HD Graphics port(s)
    Network Controllers
    • Quad LAN with Intel® Ethernet Controller I211-AT
    Input / Output
    SATA
    • 1 SATA3 (6Gbps) port(s)
    LAN
    • 4 RJ45 Gigabit Ethernet LAN ports
    USB
    • 2 USB 2.0 port(s) (2 via header)
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 HDMI port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    Others
    • 1 SMBus header
    • 1 System Fan
    • 1 onboard M2 active LED
    • 1 onboard GbE LAN active LED
    Expansion Slots
    PCIe
    • No/A
    M.2
    • Key: B-Key, E-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.0
    • SMBIOS 3.0
    • UEFI 2.5
    • PCI FW 3.0
    Management
    Software
    • SuperDoctor® 5, Watchdog
    System Management Software
    • SuperDoctor 5
    Power Configurations
    • ACPI Power Management, +12V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, System level control, 3.3V standby, +5V, +3.3V, +12V, +1.35V, VCGI
    LED
    • Standby alert LED
    Temperature
    • CPU thermal trip support
    FAN
    • 1x 4-pin fan header (up to 1 fan)
    • Thermal control tachometer fan connectors
    • System level control
    • PWM fan speed control
    • Low noise fan speed control
    • Fan speed control
    Other Features
    • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 8-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    A2SAN-LN4-C Heatsink
    SNK-C0103L-11A2SAN-LN4-C Heatsink Height 19mm
    DC IN Power cable
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    SATA cable
    CBL-SAST-08811SATA Data cable 25CM
    SATA Power Cable
    CBL-PWEX-09821SATA Power Cable 25cm
    Retail Package
    A2SAN-LN4-C Heatsink
    SNK-C0103L-11A2SAN-LN4-C Heatsink Height 19mm
    COM Port Cable
    CBL-OTHR-1061-151COM Cable 15cm
    DC IN Power cable
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    QRG
    MNL-2285-QRG1Motherboard Quick Reference Guide
    SATA cable
    CBL-SAST-08811SATA Data cable 25CM
    SATA Power Cable
    CBL-PWEX-09821SATA Power Cable 25cm
    USB Cable
    CBL-CUSB-09831USB2.0 cable 20cm

    Optional Part List

    Part Number Quantity Description
    DC IN Power Cable (DC Jack)
    CBL-PWEX-1110-151DC IN Power cable 2x4P to 5.5x2.5 DC JACK with 17cm
    Power Adapter
    MCP-250-10134-0N160W 12V 5A, AC to DC lockable power adapter,HF
    MCP-250-10135-0N1FSP 40W 12V 3.33A, AC to DC lockable power adapter,HF,RoHS
