  2. A2SAN-LN4-E, Embedded SBC,Apollo Lake Atom,4 Core,DDR3L

A2SAN-LN4-E, Embedded SBC,Apollo Lake Atom,4 Core,DDR3L

MBD-A2SAN-LN4-E-B
https://safeconsulting.no/web/image/product.template/10178/image_1920?unique=ba3907f

kr 2,300.06 2300.06 NOK kr 2,300.06

kr 2,300.06

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

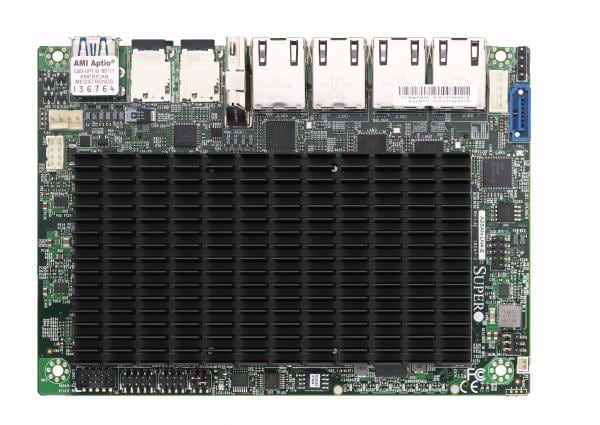

    The Supermicro MBD-A2SAN-LN4-E-B is a 3.5" Single Board Computer (SBC) packed with powerful Intel® Atom® Processor E3940, offering robust performance with up to 4 cores, quad LAN, and extensive input/output options including USB, HDMI, and SATA ports.

    Key Features

    • Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
    • Intel® Atom processor E3940 (9.5W, 4C)
    • Quad LAN with Intel® Ethernet Controller I210-IT
    • Intel® Goldmont microarchitecture 14nm System-on-Chip
    • 2 USB 3.0 ports, 2 USB 2.0 ports, 1 COM ports, 1 SATA 3.0, 8-bit GPIO, SMBus
    • Supports 12V DC power input
    • 3 M.2 B-Key 2242/3042 with nano SIM slot, 1 M.2 E-Key 2230

    Key Applications

    • Automation systems
    • Networking storage
    • Embedded computing
    • Industrial control
    • Digital signage
    • IoT solutions

    Description

    The Supermicro MBD-A2SAN-LN4-E-B is engineered for high efficiency in a compact form factor. Powered by the Intel® Atom® Processor E3940, this 3.5" SBC supports up to 4 cores and 8GB of DDR3L SODIMM memory. It features quad LAN ports with the Intel® Ethernet Controller I210-IT, extensive I/O options including USB 2.0 and 3.0 ports, HDMI, SATA, and M.2 slots with nano SIM slot, ensuring versatile connectivity. Additional features include comprehensive system monitoring and management via SuperDoctor® 5, watchdog, and ACPI power management. This product is designed for applications in automation, networking, storage, and more.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A2SAN-LN4-E
    Physical Stats
    Form Factor
    • 3.5" SBC
    Dimension
    • 5.866" x 4.17" (14.9cm x 10.6cm)
    Processor
    CPU
    • Intel® Atom® Processor E3940
    • Single Socket FCBGA-1296 supported, CPU TDP supports Up to 9.5W TDP
    Core
    • Up to 4 cores, 4 threads / 2MB Cache
    Note
    System Memory
    Memory Capacity
    • 1 DIMM slots
    • Up to 8GB Unbuffered non-ECC SODIMM, DDR3-1866MT/s
    Memory Type
    • 1866 MT/s non-ECC DDR3 SODIMM Unbuffered DDR3L up to 8GB
    DIMM Sizes
    • 2GB, 4GB, 8GB
    Memory Voltage
    • 1.35V
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 1 SATA3 (6 Gbps) ports
    Graphics
    • 1 Intel® HD Graphics port(s)
    Network Controllers
    • Quad LAN with Intel® Ethernet Controller I210IT
    Input / Output
    SATA
    • 1 SATA3 (6Gbps) port(s)
    LAN
    • 4 RJ45 Gigabit Ethernet LAN ports
    USB
    • 2 USB 2.0 port(s) (2 via header)
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 HDMI port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    Others
    • 1 8-bit GPIO header
    • 1 SMBus header
    • 1 System Fan
    • 1 onboard M2 active LED
    • 1 onboard GbE LAN active LED
    Expansion Slots
    PCIe
    • No/A
    M.2
    • Key: B-Key, E-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.0
    • SMBIOS 3.0
    • UEFI 2.5
    • PCI FW 3.0
    Management
    Software
    • SuperDoctor® 5, Watchdog
    System Management Software
    • SuperDoctor 5
    Power Configurations
    • ACPI Power Management, +12V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, System level control, 3.3V standby, +5V, +3.3V, +12V, +1.35V, VCGI
    LED
    • Standby alert LED
    Temperature
    • CPU thermal trip support
    FAN
    • 1x 4-pin fan header (up to 1 fan)
    • Thermal control tachometer fan connectors
    • System level control
    • PWM fan speed control
    • Low noise fan speed control
    • Fan speed control
    Other Features
    • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 8-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    A2SAN-E Heatsink
    SNK-C0103L1A2SAN-E Heatsink Height 20mm
    DC IN Power cable
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    SATA cable
    CBL-SAST-08811SATA Data cable 25CM
    SATA Power Cable
    CBL-PWEX-09821SATA Power Cable 25cm
    Retail Package
    A2SAN-E Heatsink
    SNK-C0103L1A2SAN-E Heatsink Height 20mm
    COM Port Cable
    CBL-OTHR-1061-151COM Cable 15cm
    DC IN Power cable
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    QRG
    MNL-2285-QRG1Motherboard Quick Reference Guide
    SATA cable
    CBL-SAST-08811SATA Data cable 25CM
    SATA Power Cable
    CBL-PWEX-09821SATA Power Cable 25cm
    USB Cable
    CBL-CUSB-09831USB2.0 cable 20cm

    Optional Part List

    Part Number Quantity Description
    DC IN Power Cable (DC Jack)
    CBL-PWEX-1110-151DC IN Power cable 2x4P to 5.5x2.5 DC JACK with 17cm
    Power Adapter
    MCP-250-10134-0N160W 12V 5A, AC to DC lockable power adapter,HF
    MCP-250-10135-0N1FSP 40W 12V 3.33A, AC to DC lockable power adapter,HF,RoHS
