    Summary Description

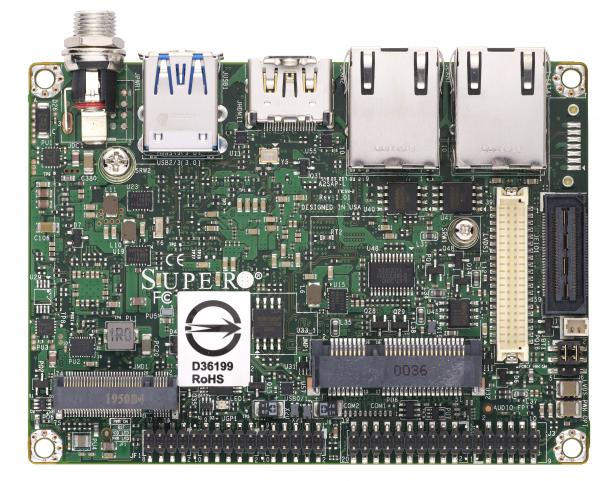

    The Supermicro MBD-A2SAP-H-B is a compact and versatile Pico-ITX motherboard designed for embedded applications. It features an Intel Atom processor E3940, dual LAN, multiple USB ports, and extension I/O capabilities, making it suitable for a wide range of industrial applications.

    Key Features

    • Intel® Atom processor E3940 (9.5W, 4C)
    • Dual LAN with Intel® Ethernet Controller I210-IT
    • 1 M.2 B-Key 2242/3042, 1 Half size Mini-PCIe
    • Extension I/O (1 DP/HDMI, 2 PCIe x1, 2 USB2.0, LPC, SATA, SMBus, Power)
    • Intel® Goldmont microarchitecture 14nm System-on-Chip
    • 1 HDMI, 1 48-bit LVDS, Intel® HD Graphic 2 independent displays
    • Supports 12V DC power input
    • Wide temperature suppot from -30°C to 75°C
    • 2 USB 3.0 ports (rear), 2 USB 2.0 ports (via headers), 2 COM ports (via headers)

    Key Applications

    • Embedded systems
    • Industrial PCs
    • Automated control systems
    • Kiosks
    • Digital signage
    • Networking equipment

    Description

    The Supermicro MBD-A2SAP-H-B motherboard is engineered for high performance and reliability, equipped with an Intel Atom processor E3940 and supporting up to 8GB of DDR3 memory. This Pico-ITX board offers dual LAN ports with Intel Ethernet Controller I210-IT, extensive I/O options including HDMI, LVDS, USB, and COM ports, as well as expansion slots like Mini-PCIe and M.2. Its wide temperature support and robust build quality make it ideal for industrial environments.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A2SAP-H
    Physical Stats
    Form Factor
    • Pico-ITX
    Dimension
    • 4" x 2.83" (10.16cm x 7.19cm)
    Processor
    CPU
    • Intel® Atom® Processor E3940
    • Single Socket FCBGA-1296 supported, CPU TDP supports Up to 9.5W TDP
    Core
    • Up to 4 cores, 4 threads / 2MB Cache
    System Memory
    Memory Capacity
    • 1 DIMM slots
    • Up to 8GB Unbuffered non-ECC SODIMM, DDR3-1866MT/s
    Memory Type
    • 1866 MT/s non-ECC DDR3 SODIMM Unbuffered DDR3L up to 8GBDDR3L up to 8GB
    DIMM Sizes
    • 2GB, 4GB, 8GB
    Memory Voltage
    • 1.35V
    On-Board Devices
    Chipset
    • System on Chip
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 Intel® HD Graphics port(s)
    Network Controllers
    • Dual LAN with Intel® Ethernet Controller I210IT
    Input / Output
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 HDMI port(s), 1 48-bit LVDS port(s)
    Others
    • 1 SMbus and 5V/A SATA Power bo header
    • 1 USB0
    • 1 2 pin Connector A (216-Pin
    • 1 0mm pitch): RS3/4/485
    • 1 HD AUDIO Mic-in /Headphone-out (Note:Audio only support 0~60C)
    • 1 4 pin Connector B (217-Pin
    • 1 0mm pitch):Power/Reset button
    • 1 HDD/Power LED
    • 1 -bit GPIO
    • 1 2V DC Jack power input connector
    Expansion Slots
    PCIe
    • 1 Half size Mini-PCIe (USB2.0 x 1,PCIe Gen2 x 1)
    • 1 EI/O (1 DP/HDMI, 2 PCIe x1, 2 USB2.0, LPC, SATA3, SMBus, 12Vsb 2A, 5Vsb 2.8A)
    M.2
    • M.2 Interface: USB 2.0; SATA; PCIe 2.0 x1
    • Form Factor: 2242, 3042
    • Key: B-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.0
    • SMBIOS 3.0
    • UEFI 2.5
    • PCI FW 3.0
    Management
    Software
    • SuperDoctor® 5, Watchdog
    System Management Software
    • SuperDoctor 5
    Power Configurations
    • ACPI Power Management, +12V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper
    PC Health Monitoring
    Voltage
    • VBAT, System level control, 3.3V standby, +3.3V, +12V, +1.35V, Memory Voltages, VCGI
    LED
    • Standby alert LED
    Temperature
    • CPU thermal trip support
    Other Features
    • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management
    Operating Environment
    Operating Temperature Range
    • -30°C - 75°C (-22°F - 167°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    Screw bag
    MCP-110-00096-0N1Screw bag for M3L4.5 screws x 4 and M4 Standoff 11mm height x 4
    Retail Package
    Audio Cable
    CBL-OTHR-09861Audio Cable 20cm
    COM Cable
    CBL-CUSB-09841COM Cable 20cm
    Passive heatsink
    SNK-C0115L1A2SAP Passive heatsink with 25mm height
    QRG
    MNL-1994-QRG1Motherboard Quick Reference Guide
    Screw bag
    MCP-110-00096-0N1Screw bag for M3L4.5 screws x 4 and M4 Standoff 11mm height x 4

    Optional Part List

    Part Number Quantity Description
    Power Adapter
    MCP-250-10134-0N160W 12V 5A, AC to DC lockable power adapter,HF
    MCP-250-10135-0N140W 12V 3.33A, AC to DC lockable power adapter,HF
