  2. Apollo Lake E3940,DDR3L 1867MHz SODIMM,up to 8GB,1 HDMI

Apollo Lake E3940,DDR3L 1867MHz SODIMM,up to 8GB,1 HDMI

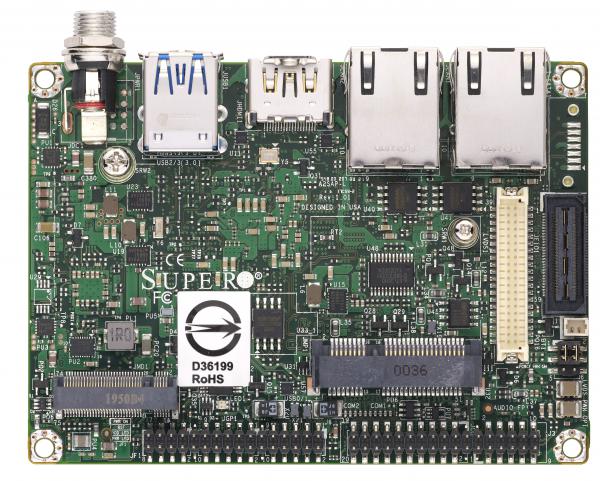

MBD-A2SAP-H-O
https://safeconsulting.no/web/image/product.template/10193/image_1920?unique=ba3907f

kr 2,287.35 2287.35 NOK kr 2,287.35

kr 2,287.35

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-A2SAP-H-O motherboard is equipped with Intel® Atom E3940 processor, ideal for embedded applications. Supports dual LAN, multiple I/O interfaces, and wide temperature range for rugged environments.

    Key Features

    • Intel® Atom processor E3940 (9.5W, 4C)
    • Dual LAN with Intel® Ethernet Controller I210-IT
    • 1 M.2 B-Key 2242/3042, 1 Half size Mini-PCIe
    • Extension I/O (1 DP/HDMI, 2 PCIe x1, 2 USB2.0, LPC, SATA, SMBus, Power)
    • Intel® Goldmont microarchitecture 14nm System-on-Chip
    • 1 HDMI, 1 48-bit LVDS, Intel® HD Graphic 2 independent displays
    • Supports 12V DC power input
    • Wide temperature suppot from -30°C to 75°C
    • 2 USB 3.0 ports (rear), 2 USB 2.0 ports (via headers), 2 COM ports (via headers)

    Key Applications

    • Industrial Automation
    • Embedded Systems
    • IoT Applications
    • Rugged Environments

    Description

    The Supermicro MBD-A2SAP-H-O motherboard is engineered with the Intel® Atom E3940 processor, offering low power consumption and quad-core performance. It features dual LAN, multiple I/O interfaces including HDMI, USB, and PCIe slots. The board supports up to 8GB of DDR3 memory and includes wide temperature and voltage range support. Ideal for industrial, embedded, and IoT applications, it provides reliability and flexibility.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A2SAP-H
    Physical Stats
    Form Factor
    • Pico-ITX
    Dimension
    • 4" x 2.83" (10.16cm x 7.19cm)
    Processor
    CPU
    • Intel® Atom® Processor E3940
    • Single Socket FCBGA-1296 supported, CPU TDP supports Up to 9.5W TDP
    Core
    • Up to 4 cores, 4 threads / 2MB Cache
    System Memory
    Memory Capacity
    • 1 DIMM slots
    • Up to 8GB Unbuffered non-ECC SODIMM, DDR3-1866MT/s
    Memory Type
    • 1866 MT/s non-ECC DDR3 SODIMM Unbuffered DDR3L up to 8GBDDR3L up to 8GB
    DIMM Sizes
    • 2GB, 4GB, 8GB
    Memory Voltage
    • 1.35V
    On-Board Devices
    Chipset
    • System on Chip
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 Intel® HD Graphics port(s)
    Network Controllers
    • Dual LAN with Intel® Ethernet Controller I210IT
    Input / Output
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 HDMI port(s), 1 48-bit LVDS port(s)
    Others
    • 1 SMbus and 5V/A SATA Power bo header
    • 1 USB0
    • 1 2 pin Connector A (216-Pin
    • 1 0mm pitch): RS3/4/485
    • 1 HD AUDIO Mic-in /Headphone-out (Note:Audio only support 0~60C)
    • 1 4 pin Connector B (217-Pin
    • 1 0mm pitch):Power/Reset button
    • 1 HDD/Power LED
    • 1 -bit GPIO
    • 1 2V DC Jack power input connector
    Expansion Slots
    PCIe
    • 1 Half size Mini-PCIe (USB2.0 x 1,PCIe Gen2 x 1)
    • 1 EI/O (1 DP/HDMI, 2 PCIe x1, 2 USB2.0, LPC, SATA3, SMBus, 12Vsb 2A, 5Vsb 2.8A)
    M.2
    • M.2 Interface: USB 2.0; SATA; PCIe 2.0 x1
    • Form Factor: 2242, 3042
    • Key: B-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.0
    • SMBIOS 3.0
    • UEFI 2.5
    • PCI FW 3.0
    Management
    Software
    • SuperDoctor® 5, Watchdog
    System Management Software
    • SuperDoctor 5
    Power Configurations
    • ACPI Power Management, +12V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper
    PC Health Monitoring
    Voltage
    • VBAT, System level control, 3.3V standby, +3.3V, +12V, +1.35V, Memory Voltages, VCGI
    LED
    • Standby alert LED
    Temperature
    • CPU thermal trip support
    Other Features
    • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management
    Operating Environment
    Operating Temperature Range
    • -30°C - 75°C (-22°F - 167°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    Screw bag
    MCP-110-00096-0N1Screw bag for M3L4.5 screws x 4 and M4 Standoff 11mm height x 4
    Retail Package
    Audio Cable
    CBL-OTHR-09861Audio Cable 20cm
    COM Cable
    CBL-CUSB-09841COM Cable 20cm
    Passive heatsink
    SNK-C0115L1A2SAP Passive heatsink with 25mm height
    QRG
    MNL-1994-QRG1Motherboard Quick Reference Guide
    Screw bag
    MCP-110-00096-0N1Screw bag for M3L4.5 screws x 4 and M4 Standoff 11mm height x 4

    Optional Part List

    Part Number Quantity Description
    Power Adapter
    MCP-250-10134-0N160W 12V 5A, AC to DC lockable power adapter,HF
    MCP-250-10135-0N140W 12V 3.33A, AC to DC lockable power adapter,HF
