Apollo Lake E3930, DDR3L 1867MHz SODIMM,up to 8GB,1 HDMI

• Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
• Intel® Atom processor E3930 (6.5W, 2C)
• 1 M.2 B-Key 2242/3042, 1 Half size Mini-PCIe, 1 SATA 3.0
• Intel® Goldmont microarchitecture 14nm System-on-Chip
• 1 HDMI, 1 48-bit LVDS, Intel® HD Graphic 2 independent displays
• Dual Gigabit Ethernet LAN ports via Intel® i210AT
• Supports 12V DC power input
• 2 USB 3.0 ports (rear), 2 USB 2.0 ports (via headers), 2 COM ports (via headers)

• Embedded systems
• Industrial automation
• Digital signage
• Point-of-sale systems
• Networking applications
• Medical devices

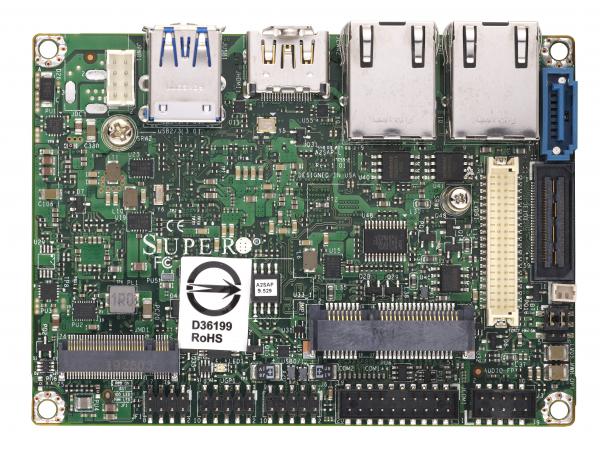

The Supermicro MBD-A2SAP-L-O motherboard is designed to deliver high performance within a compact Pico-ITX form factor. It features the Intel® Atom processor E3930 with dual cores and supports up to 8GB of 1866MHz DDR3L memory in a single socket. The motherboard includes a variety of connectivity options, such as dual Gigabit Ethernet, USB 3.0 and 2.0 ports, SATA 3.0, HDMI, and LVDS for versatile display support. Additionally, it offers robust on-board devices including Intel® HD Graphics, ALC 888S HD Audio, and comprehensive expansion slots like M.2 and Mini-PCIe. Ideal for applications requiring reliable performance under varying conditions, the MBD-A2SAP-L-O supports an operating temperature range from -30°C to 60°C.
