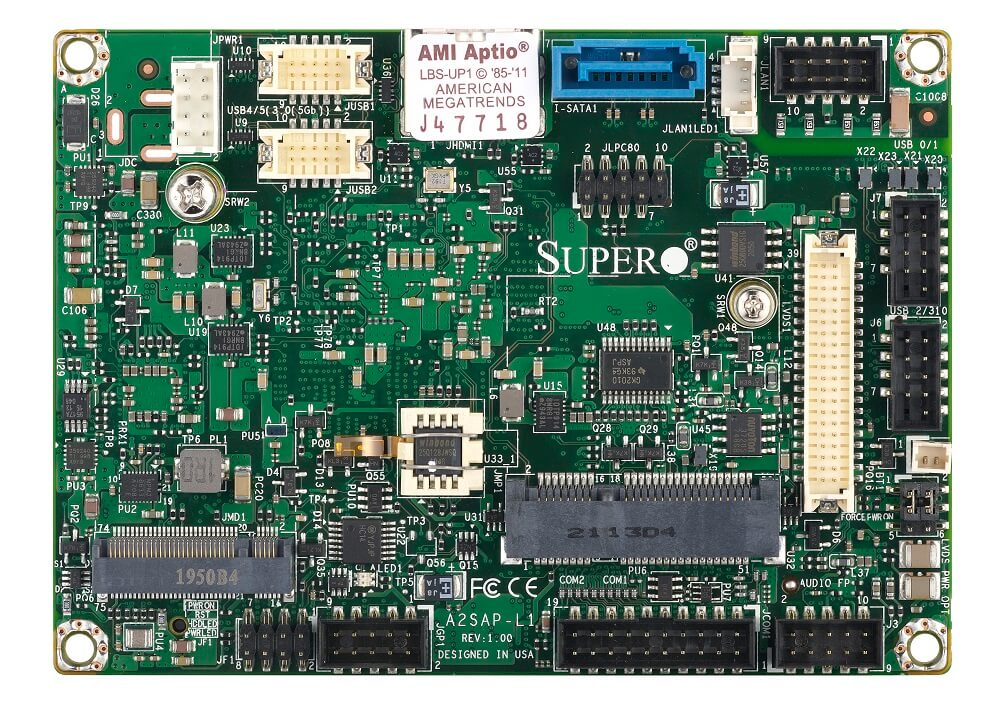

    The Supermicro MBD-A2SAP-L1-B is a compact, high-performance Pico-ITX motherboard featuring the Intel Atom E3940 processor, ideal for industrial and embedded applications.

    Key Features

    • Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
    • Intel® Atom processor E3940 (9.5W, 4C)
    • 1 M.2 B-Key 2242/3042, 1 Half size Mini-PCIe, 1 SATA 3.0
    • Intel® Goldmont microarchitecture 14nm System-on-Chip
    • 1 HDMI, 1 48-bit LVDS, Intel® HD Graphic 2 independent displays
    • All box header type for 2 COM, 2 USB3.0 ,4 USB2.0, 1GbE, LAN LED, Audio, GPIO, SMbus, LVDS, DC IN power
    • Supports 12V DC power input
    • Wide temperature suppot from -30°C to 75°C

    Key Applications

    • Industrial automation systems
    • Embedded computing
    • Digital signage kiosks
    • Medical devices

    Description

    The Supermicro MBD-A2SAP-L1-B is designed for performance and reliability with its Intel Atom E3940 processor and Intel Goldmont microarchitecture. It supports up to 8GB DDR3L RAM, and offers versatile connectivity options including HDMI, LVDS, multiple USB ports, SATA3, and a GbE LAN port. The motherboard also supports a wide temperature range, making it suitable for various industrial and embedded applications.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A2SAP-L1
    Physical Stats
    Form Factor
    • Pico-ITX
    Dimension
    • 4" x 2.83" (10.16cm x 7.19cm)
    Processor
    CPU
    • Intel® Atom® Processor E3940
    • Single Socket FCBGA-1296 supported, CPU TDP supports Up to 9.5W TDP
    Core
    • Up to 4 cores, 4 threads / 2MB Cache
    System Memory
    Memory Capacity
    • 1 DIMM slots
    • Up to 8GB Unbuffered non-ECC SODIMM, DDR3-1866MT/s
    Memory Type
    • 1866 MT/s non-ECC DDR3 SODIMM Unbuffered DDR3L up to 8GB
    DIMM Sizes
    • 2GB, 4GB, 8GB
    Memory Voltage
    • 1.35V
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 1 SATA3 (6 Gbps) ports
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 Intel® HD Graphics port(s)
    Network Controllers
    • Single LAN with Intel® Ethernet Controller I210IT, With Box Header
    Input / Output
    SATA
    • 1 SATA3 (6Gbps) port(s)
    LAN
    • 1 1GbE LAN port (via box header)
    USB
    • 4 USB 2.0 port(s) (4 via header)
    • 2 USB 3.2 Gen1 port(s) (2 via header)
    Video Output
    • 1 HDMI port(s), 1 LVDS port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    Others
    • 1 8-bit GPIO header
    • 1 HD Audio header (Mic-in/Headphone-out) (Note:Audio only support 0~60C)
    • 1 SMbus and 5V/A SATA Power bo header
    • 1 24-Pin 2V DC-IN power input bo header (20mm pitch)
    Expansion Slots
    PCIe
    • 1 Half size Mini-PCIe (USB2.0 x 1,PCIe Gen2 x 1)
    M.2
    • M.2 Interface: USB 2.0; SATA; PCIe 2.0 x1
    • Form Factor: 3042, 2242
    • Key: B-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.0
    • SMBIOS 3.0
    • UEFI 2.5
    • PCI FW 3.0
    Management
    Software
    • SuperDoctor® 5, Watchdog
    System Management Software
    • SuperDoctor 5
    Power Configurations
    • ACPI Power Management, +12V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, System level control, 3.3V standby, +3.3V, +12V, +1.35V, Memory Voltages, VCGI
    LED
    • Standby alert LED
    Temperature
    • CPU thermal trip support
    Other Features
    • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management
    Operating Environment
    Operating Temperature Range
    • -30°C - 75°C (-22°F - 167°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Retail Package
    Audio Cable
    CBL-OTHR-09861Audio Cable 20cm
    COM Cable
    CBL-CUSB-09841COM Cable 20cm
    DC IN Power cable
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    Passive heatsink
    SNK-C0115L1A2SAP Passive heatsink with 25mm height
    QRG
    MNL-2427-QRG1Motherboard Quick Reference Guide
    RJ45 LAN Cable
    CBL-CDAT-09341RJ45 1G LAN Cable Cable 10cm
    SATA cable
    CBL-SAST-05381SATA Data cable 29CM
    SATA Power Cable
    CBL-PWEX-10301SATA Power Cable 20cm
    USB Cable
    CBL-CUSB-09831USB2.0 cable 20cm
    USB3.0 Cable
    CBL-CUSB-08261USB3.0 cable 15cm

    Optional Part List

    Part Number Quantity Description
    DC IN Power Cable (DC Jack)
    CBL-PWEX-1110-151DC IN Power cable 2x4P to 5.5x2.5 DC JACK with 17cm
    Power Adapter
    MCP-250-10135-0N140W 12V 3.33A, AC to DC lockable power adapter,HF
