Apollo Lake E3940, DDR3L 1867MHz SODIMM, up to 8GB,1HDMI

MBD-A2SAP-L1-O
https://safeconsulting.no/web/image/product.template/10197/image_1920?unique=b674791

kr 2,287.10 2287.1 NOK kr 2,287.10

kr 2,287.10

Not Available For Sale

    This combination does not exist.

    Summary Description

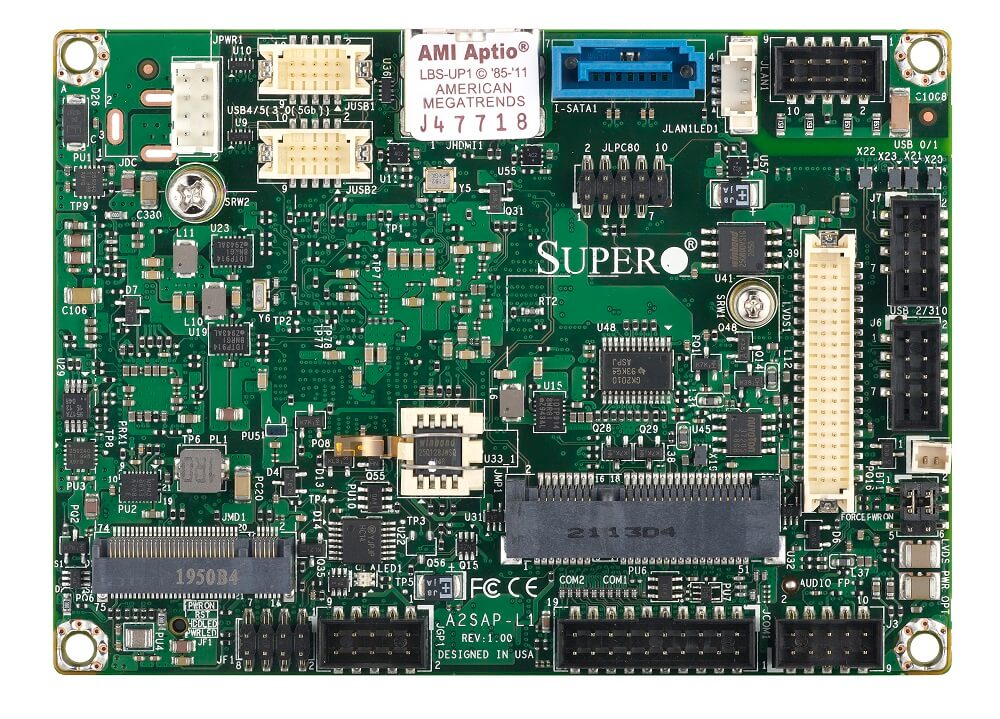

    The Supermicro MBD-A2SAP-L1-O offers powerful performance in a space-efficient Pico-ITX form factor. It features the Intel® Atom processor E3940 and supports up to 8GB of 1866MHz DDR3L non-ECC memory. Ideal for embedded and industrial computing applications.

    Key Features

    • Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
    • Intel® Atom processor E3940 (9.5W, 4C)
    • 1 M.2 B-Key 2242/3042, 1 Half size Mini-PCIe, 1 SATA 3.0
    • Intel® Goldmont microarchitecture 14nm System-on-Chip
    • 1 HDMI, 1 48-bit LVDS, Intel® HD Graphic 2 independent displays
    • All box header type for 2 COM, 2 USB3.0 ,4 USB2.0, 1GbE, LAN LED, Audio, GPIO, SMbus, LVDS, DC IN power
    • Supports 12V DC power input
    • Wide temperature suppot from -30°C to 75°C

    Key Applications

    • Industrial Automation
    • Digital Signage
    • Network Appliances
    • IoT Gateways
    • Medical Devices
    • POS Systems

    Description

    The Supermicro MBD-A2SAP-L1-O is engineered to bring robust performance and versatile connectivity to embedded applications. Featuring Intel® Atom processor E3940, it supports up to 8GB of 1866MHz DDR3L non-ECC memory. The board offers a variety of I/O ports including HDMI, LVDS, multiple USB ports, SATA3, and single LAN port. Additionally, it has expansion options with Mini-PCIe and M.2 slots. The wide operating temperature range from -30°C to 75°C ensures reliable operation in harsh environments. This motherboard is also equipped with rich features like Intel® HD Graphics, SuperDoctor® 5, and standby alert LED, making it ideal for a variety of industrial and embedded computing applications.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A2SAP-L1
    Physical Stats
    Form Factor
    • Pico-ITX
    Dimension
    • 4" x 2.83" (10.16cm x 7.19cm)
    Processor
    CPU
    • Intel® Atom® Processor E3940
    • Single Socket FCBGA-1296 supported, CPU TDP supports Up to 9.5W TDP
    Core
    • Up to 4 cores, 4 threads / 2MB Cache
    System Memory
    Memory Capacity
    • 1 DIMM slots
    • Up to 8GB Unbuffered non-ECC SODIMM, DDR3-1866MT/s
    Memory Type
    • 1866 MT/s non-ECC DDR3 SODIMM Unbuffered DDR3L up to 8GB
    DIMM Sizes
    • 2GB, 4GB, 8GB
    Memory Voltage
    • 1.35V
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 1 SATA3 (6 Gbps) ports
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 Intel® HD Graphics port(s)
    Network Controllers
    • Single LAN with Intel® Ethernet Controller I210IT, With Box Header
    Input / Output
    SATA
    • 1 SATA3 (6Gbps) port(s)
    LAN
    • 1 1GbE LAN port (via box header)
    USB
    • 4 USB 2.0 port(s) (4 via header)
    • 2 USB 3.2 Gen1 port(s) (2 via header)
    Video Output
    • 1 HDMI port(s), 1 LVDS port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    Others
    • 1 8-bit GPIO header
    • 1 HD Audio header (Mic-in/Headphone-out) (Note:Audio only support 0~60C)
    • 1 SMbus and 5V/A SATA Power bo header
    • 1 24-Pin 2V DC-IN power input bo header (20mm pitch)
    Expansion Slots
    PCIe
    • 1 Half size Mini-PCIe (USB2.0 x 1,PCIe Gen2 x 1)
    M.2
    • M.2 Interface: USB 2.0; SATA; PCIe 2.0 x1
    • Form Factor: 3042, 2242
    • Key: B-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.0
    • SMBIOS 3.0
    • UEFI 2.5
    • PCI FW 3.0
    Management
    Software
    • SuperDoctor® 5, Watchdog
    System Management Software
    • SuperDoctor 5
    Power Configurations
    • ACPI Power Management, +12V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, System level control, 3.3V standby, +3.3V, +12V, +1.35V, Memory Voltages, VCGI
    LED
    • Standby alert LED
    Temperature
    • CPU thermal trip support
    Other Features
    • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management
    Operating Environment
    Operating Temperature Range
    • -30°C - 75°C (-22°F - 167°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Retail Package
    Audio Cable
    CBL-OTHR-09861Audio Cable 20cm
    COM Cable
    CBL-CUSB-09841COM Cable 20cm
    DC IN Power cable
    CBL-PWEX-10291DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm
    Passive heatsink
    SNK-C0115L1A2SAP Passive heatsink with 25mm height
    QRG
    MNL-2427-QRG1Motherboard Quick Reference Guide
    RJ45 LAN Cable
    CBL-CDAT-09341RJ45 1G LAN Cable Cable 10cm
    SATA cable
    CBL-SAST-05381SATA Data cable 29CM
    SATA Power Cable
    CBL-PWEX-10301SATA Power Cable 20cm
    USB Cable
    CBL-CUSB-09831USB2.0 cable 20cm
    USB3.0 Cable
    CBL-CUSB-08261USB3.0 cable 15cm

    Optional Part List

    Part Number Quantity Description
    DC IN Power Cable (DC Jack)
    CBL-PWEX-1110-151DC IN Power cable 2x4P to 5.5x2.5 DC JACK with 17cm
    Power Adapter
    MCP-250-10135-0N140W 12V 3.33A, AC to DC lockable power adapter,HF
