    Summary Description

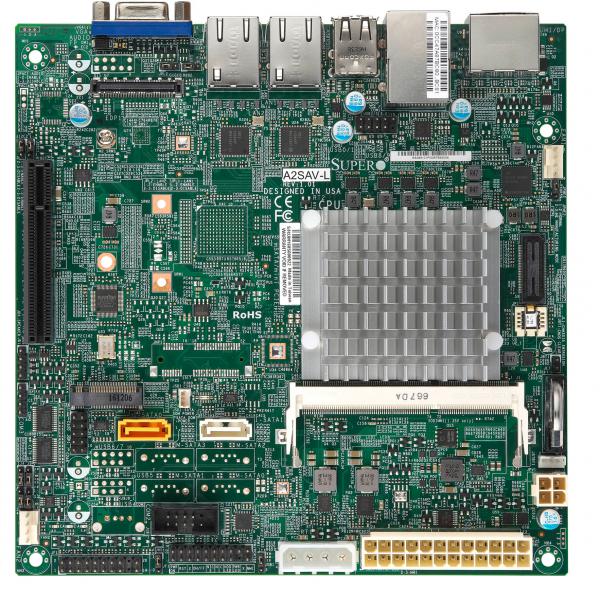

    The Supermicro MBD-A2SAV-2C-L-B is a versatile motherboard featuring the Intel Atom E3930 processor, dual GbE LAN, and support for up to 8GB DDR3L memory. Ideal for a range of industrial applications.

    Key Features

    • Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
    • Intel® Atom processor E3930 (6.5W, 2C)
    • 1 PCIe 2.0 x2 (in x8), and 2 SATA 3.0
    • Dual GbE LAN with Intel® i210-AT
    • Intel® Goldmont microarchitecture 14nm System-on-Chip
    • 1 M.2 M-key with SATA
    • 12V DC Input and ATX Power Source
    • 1 HDMI, 1 DP, 1 VGA or 1 eDP, Intel HD Graphic 3 independent displays
    • 2 USB 3.0 ports, 4 USB 2.0 ports, 3 COM ports, and 1 DOM connector

    Key Applications

    • Embedded applications
    • Industrial automation
    • Network devices
    • IoT systems
    • Digital signage

    Description

    The Supermicro MBD-A2SAV-2C-L-B motherboard offers robust performance with the Intel Atom E3930 processor, dual GbE LAN, and up to 8GB 1866MHz DDR3L memory. With dual PCIe slots, multiple USB ports, and versatile video output options, it's designed for flexible usage in various industrial and embedded applications. The board supports optimal power management and advanced monitoring capabilities, making it suitable for demanding environments.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A2SAV-2C-L
    Physical Stats
    Form Factor
    • Mini-ITX
    Dimension
    • 6.7" x 6.7" (17.02cm x 17.02cm)
    Processor
    CPU
    • Intel® Atom® Processor E3930
    System Memory
    Memory Capacity
    Memory Type
    • 1866 MT/s DDR3L up to 8GB
    DIMM Sizes
    • 2GB, 4GB, 8GB
    Memory Voltage
    • 1.35V
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 2 SATA3 (6 Gbps) ports
    Graphics
    • 1 Intel® HD Graphics port(s)
    Network Controllers
    • Dual LAN with Intel® Ethernet Controller I210IT
    Input / Output
    USB
    • 4 USB 2.0 port(s) (2 via header; 2 rear)
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s)
    Serial Port
    • 3 COM Port(s) (1 rear; 2 header)
    Others
    • 1 COM in RJ45
    • 1 COM in RS232
    • 1 COM in RS485
    Expansion Slots
    PCIe
    • 1 PCIe 2.0 x2 (in x8 slot)
    M.2
    • Form Factor: 2280, 2242
    • Double Height Connector
    System BIOS
    BIOS Type
    • AMI UEFI
    Management
    Software
    • SuperDoctor® 5, Watchdog
    Power Configurations
    • ACPI Power Management
    PC Health Monitoring
    Voltage
    • +5V standby, +5V, +12V
    FAN
    • 2x 4-pin fan headers (up to 2 fans)
    • PWM fan speed control
    • Low noise fan speed control
    • Fan speed control
    Other Features
    • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ATX Power connector, ACPI power management, 4-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range
    • -30°C - 70°C (-22°F - 158°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L157.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00058-0N1A2SAV-L standard 2U I/O Shield
    Retail Package
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00058-0N1A2SAV-L standard 2U I/O Shield

    Optional Part List

    Part Number Quantity Description
    1U I/O Shield
    MCP-260-00068-0B11U I/O Shield for A2SAV-L with EMI Gasket in CSE-510/505/504
