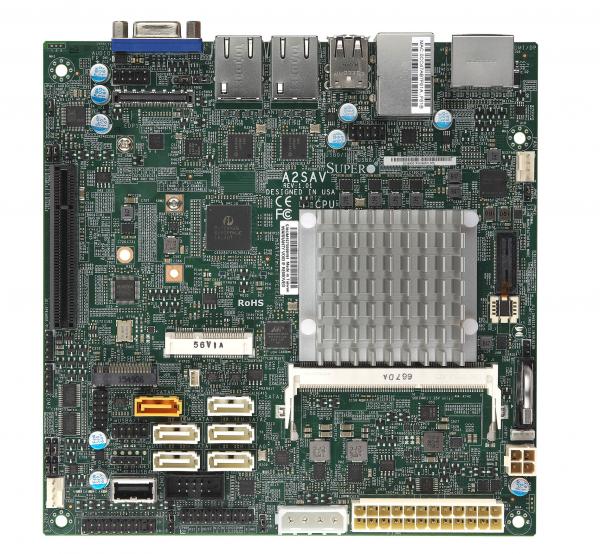

MBD-A2SAV-B

MBD-A2SAV-B
https://safeconsulting.no/web/image/product.template/10200/image_1920?unique=a1dbe1e

kr 2,592.33 2592.33 NOK kr 2,592.33

kr 2,592.33

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-A2SAV-B motherboard features an Intel Atom E3940 processor, dual GbE LAN, multiple expansion slots, comprehensive I/O options, and robust support for memory and storage, making it ideal for a variety of applications.

    Key Features

    • Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
    • Intel® Atom processor E3940 (9W, 4C)
    • 1 PCIe 2.0 x2 (in x8), 1 Mini-PCIe (mSATA support) and 2 SATA 3.0
    • Dual GbE LAN with Intel® i210-AT
    • Intel® Goldmont microarchitecture 14nm System-on-Chip
    • 1 M.2 M-key with SATA
    • 4 SATA 3.0 (RAID 0, 1, 10)
    • 1 HDMI, 1 DP, 1 VGA, Intel HD Graphic 3 independent displays
    • 12V DC Input and ATX Power Source
    • 2 USB 3.0 ports, 7 USB 2.0 ports, 3 COM ports, and 1 DOM connector

    Key Applications

    • Embedded systems
    • Industrial applications
    • Networking solutions
    • Digital signage
    • Kiosk machines
    • IoT devices

    Description

    The Supermicro MBD-A2SAV-B motherboard is designed to meet diverse computing needs with its Intel Atom E3940 processor and versatile I/O capabilities. With support for up to 8GB DDR3L memory, dual LAN ports, and various expansion slots including PCIe and Mini-PCIe, this motherboard offers both performance and flexibility. Key features include multiple SATA ports with RAID support, multiple video outputs including HDMI, DisplayPort, and VGA, and a range of USB and COM ports. It's ideal for embedded systems, networking, and industrial applications.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A2SAV
    Physical Stats
    Form Factor
    • Mini-ITX
    Dimension
    • 6.7" x 6.7" (17.02cm x 17.02cm)
    Processor
    CPU
    • Intel® Atom® Processor E3940
    • Single Socket FCBGA-1296 supported, CPU TDP supports Up to 9W TDP
    System Memory
    Memory Capacity
    • 1 DIMM slots
    Memory Type
    • 1866 MT/s DDR3L up to 8GB
    DIMM Sizes
    • 2GB, 4GB, 8GB
    Memory Voltage
    • 1.35V
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 2 SATA3 (6 Gbps) ports
    • Marvel 88SE9230 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,10
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 Intel® HD Graphics port(s)
    Network Controllers
    • Dual LAN with Intel® Ethernet Controller I210-AT
    Input / Output
    USB
    • 8 USB 2.0 port(s) (2 rear; 5 via header; 1 Type A)
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s)
    Serial Port
    • 3 COM Port(s) (1 rear; 2 header)
    Others
    • 1 COM in RJ45
    • 1 COM in RS232
    • 1 COM in RS485
    Expansion Slots
    PCIe
    • 1 PCIe 2.0 x2 (in x8 slot)
    • 1x Mini-PCIe with mSATA
    M.2
    • Form Factor: 2280, 2242
    System BIOS
    BIOS Type
    • AMI UEFI
    Management
    Software
    • SuperDoctor® 5, Watchdog
    Power Configurations
    • ACPI Power Management
    PC Health Monitoring
    Voltage
    • System level control, Monitors CPU voltages, +5V standby, +5V, +3.3V, +12V, +1.8V
    FAN
    • 2x 4-pin fan headers (up to 2 fans)
    • Thermal control tachometer fan connectors
    • System level control
    • PWM fan speed control
    • Low noise fan speed control
    • Fan speed control
    Other Features
    • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ATX Power connector, ACPI power management, 4-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00058-0N1Standard I/O Shield for A2SAV with EMI Gasket
    Retail Package
    I/O Cables
    CBL-0044L657.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00058-0N1A2SAV standard 2U I/O Shield

    Optional Part List

    Part Number Quantity Description
    1U I/O Shield
    MCP-260-00068-0B11U I/O Shield for A2SAV with EMI Gasket in CSE-510/505/504
