MBD-A2SAV-L-B

MBD-A2SAV-L-B
https://safeconsulting.no/web/image/product.template/10202/image_1920?unique=a1dbe1e

kr 2,198.40 2198.4 NOK kr 2,198.40

kr 2,198.40

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

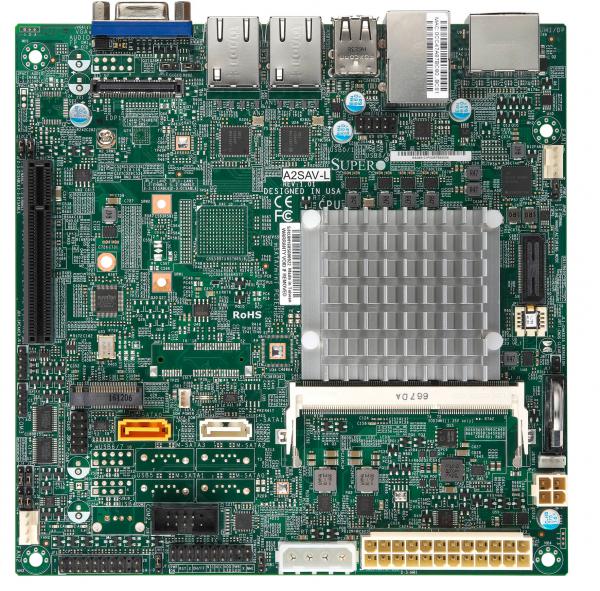

    The Supermicro MBD-A2SAV-L is a reliable Mini-ITX motherboard featuring the Intel® Atom® E3940 processor, up to 8GB DDR3L memory, dual GbE LAN, multiple USB ports, and advanced graphics support, making it an ideal solution for industrial and embedded applications.

    Key Features

    • Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
    • Intel® Atom processor E3940 (9W, 4C)
    • 1 PCIe 2.0 x2 (in x8), and 2 SATA 3.0
    • Dual GbE LAN with Intel® i210-AT
    • Intel® Goldmont microarchitecture 14nm System-on-Chip
    • 1 M.2 M-key with SATA
    • 12V DC Input and ATX Power Source
    • 1 HDMI, 1 DP, 1 VGA or 1 eDP, Intel HD Graphic 3 independent displays
    • 2 USB 3.0 ports, 4 USB 2.0 ports, 3 COM ports, and 1 DOM connector

    Key Applications

    • Embedded systems
    • Industrial automation
    • Network security appliances
    • Digital signage
    • IoT gateways

    Description

    Designed for industrial and embedded applications, the Supermicro MBD-A2SAV-L Mini-ITX motherboard integrates the Intel® Atom® E3940 processor. It supports up to 8GB DDR3L memory in a single DIMM slot, offers ample I/O options including multiple USB 3.0 and 2.0 ports, three COM ports, and dual GbE LAN. Additionally, it features an extensive range of graphics outputs, including HDMI, DP, and VGA, and provides robust system management with SuperDoctor® 5 and Watchdog software.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A2SAV-L
    Physical Stats
    Form Factor
    • Mini-ITX
    Dimension
    • 6.7" x 6.7" (17.02cm x 17.02cm)
    Processor
    CPU
    • Intel® Atom® Processor E3940
    • Single Socket FCBGA-1296 supported, CPU TDP supports Up to 9W TDP
    System Memory
    Memory Capacity
    • 1 DIMM slots
    Memory Type
    • 1866 MT/s DDR3L up to 8GB
    DIMM Sizes
    • 2GB, 4GB, 8GB
    Memory Voltage
    • 1.35V
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 2 SATA3 (6 Gbps) ports
    Graphics
    • 1 Intel® HD Graphics port(s)
    Network Controllers
    • Dual LAN with Intel® Ethernet Controller I210IT
    Input / Output
    USB
    • 4 USB 2.0 port(s) (2 via header; 2 rear)
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s)
    Serial Port
    • 3 COM Port(s) (1 rear; 2 header)
    Others
    • 1 COM in RJ45
    • 1 COM in RS232
    • 1 COM in RS485
    Expansion Slots
    PCIe
    • 1 PCIe 2.0 x2 (in x8 slot)
    M.2
    • Form Factor: 2280, 2242
    System BIOS
    BIOS Type
    • AMI UEFI
    Management
    Software
    • SuperDoctor® 5, Watchdog
    Power Configurations
    • ACPI Power Management
    PC Health Monitoring
    Voltage
    • +5V standby, +5V, +12V
    FAN
    • 2x 4-pin fan headers (up to 2 fans)
    • PWM fan speed control
    • Low noise fan speed control
    • Fan speed control
    Other Features
    • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ATX Power connector, ACPI power management, 4-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range
    • -30°C - 70°C (-22°F - 158°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L157.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00058-0N1A2SAV-L standard 2U I/O Shield
    Retail Package
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00058-0N1A2SAV-L standard 2U I/O Shield

    Optional Part List

    Part Number Quantity Description
    1U I/O Shield
    MCP-260-00068-0B11U I/O Shield for A2SAV-L with EMI Gasket in CSE-510/505/504
