    Summary Description

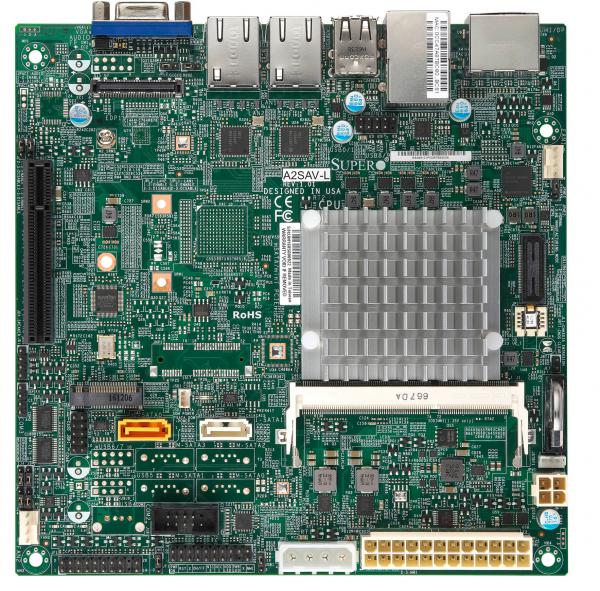

    The Supermicro MBD-A2SAV-L-O offers robust performance with an Intel Atom processor E3940 and supports up to 8GB DDR3L memory. Ideal for compact applications, it features dual GbE LAN, multiple video outputs, and versatile connectivity options.

    Key Features

    • Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
    • Intel® Atom processor E3940 (9W, 4C)
    • 1 PCIe 2.0 x2 (in x8), and 2 SATA 3.0
    • Dual GbE LAN with Intel® i210-AT
    • Intel® Goldmont microarchitecture 14nm System-on-Chip
    • 1 M.2 M-key with SATA
    • 12V DC Input and ATX Power Source
    • 1 HDMI, 1 DP, 1 VGA or 1 eDP, Intel HD Graphic 3 independent displays
    • 2 USB 3.0 ports, 4 USB 2.0 ports, 3 COM ports, and 1 DOM connector

    Key Applications

    • Compact Embedded Systems
    • Industrial Automation
    • Digital Signage
    • Network Applications

    Description

    The Supermicro MBD-A2SAV-L-O is a versatile Mini-ITX motherboard powered by the Intel Atom processor E3940. It offers 1 DIMM slot supporting up to 8GB DDR3L memory. With an array of connectivity options including dual GbE LAN, USB 3.0 and 2.0 ports, multiple serial ports, and versatile expansion slots, it is well-suited for various compact and embedded applications. Additionally, the board supports multiple video outputs including HDMI, DP, and VGA.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A2SAV-L
    Physical Stats
    Form Factor
    • Mini-ITX
    Dimension
    • 6.7" x 6.7" (17.02cm x 17.02cm)
    Processor
    CPU
    • Intel® Atom® Processor E3940
    • Single Socket FCBGA-1296 supported, CPU TDP supports Up to 9W TDP
    System Memory
    Memory Capacity
    • 1 DIMM slots
    Memory Type
    • 1866 MT/s DDR3L up to 8GB
    DIMM Sizes
    • 2GB, 4GB, 8GB
    Memory Voltage
    • 1.35V
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 2 SATA3 (6 Gbps) ports
    Graphics
    • 1 Intel® HD Graphics port(s)
    Network Controllers
    • Dual LAN with Intel® Ethernet Controller I210IT
    Input / Output
    USB
    • 4 USB 2.0 port(s) (2 via header; 2 rear)
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s)
    Serial Port
    • 3 COM Port(s) (1 rear; 2 header)
    Others
    • 1 COM in RJ45
    • 1 COM in RS232
    • 1 COM in RS485
    Expansion Slots
    PCIe
    • 1 PCIe 2.0 x2 (in x8 slot)
    M.2
    • Form Factor: 2280, 2242
    System BIOS
    BIOS Type
    • AMI UEFI
    Management
    Software
    • SuperDoctor® 5, Watchdog
    Power Configurations
    • ACPI Power Management
    PC Health Monitoring
    Voltage
    • +5V standby, +5V, +12V
    FAN
    • 2x 4-pin fan headers (up to 2 fans)
    • PWM fan speed control
    • Low noise fan speed control
    • Fan speed control
    Other Features
    • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ATX Power connector, ACPI power management, 4-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range
    • -30°C - 70°C (-22°F - 158°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L157.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00058-0N1A2SAV-L standard 2U I/O Shield
    Retail Package
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00058-0N1A2SAV-L standard 2U I/O Shield

    Optional Part List

    Part Number Quantity Description
    1U I/O Shield
    MCP-260-00068-0B11U I/O Shield for A2SAV-L with EMI Gasket in CSE-510/505/504
