MBD-A2SAV-O

MBD-A2SAV-O
https://safeconsulting.no/web/image/product.template/10199/image_1920?unique=dec9d2d

kr 2,907.64 2907.64 NOK kr 2,907.64

kr 2,907.64

Not Available For Sale

    This combination does not exist.

    Summary Description

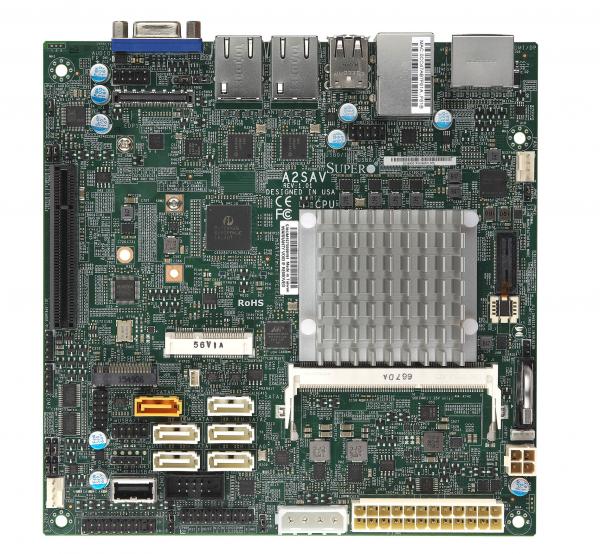

    Supermicro Motherboard MBD-A2SAV-O

    Product Highlights

    • Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
    • Intel® Atom processor E3940 (9W, 4C)
    • 1 PCIe 2.0 x2 (in x8), 1 Mini-PCIe (mSATA support) and 2 SATA 3.0
    • Dual GbE LAN with Intel® i210-AT
    • Intel® Goldmont microarchitecture 14nm System-on-Chip
    • 1 M.2 M-key with SATA
    • 4 SATA 3.0 (RAID 0, 1, 10)
    • 1 HDMI, 1 DP, 1 VGA, Intel HD Graphic 3 independent displays
    • 12V DC Input and ATX Power Source
    • 2 USB 3.0 ports, 7 USB 2.0 ports, 3 COM ports, and 1 DOM connector

    Description

    Supermicro Motherboard MBD-A2SAV-O

    Product Specifications

    Product SKUs:
    MBD-A2SAV
    Physical Stats
    Form FactorMini-ITX
    Dimension6.7" x 6.7" (17.02cm x 17.02cm)
    Processor
    CPUIntel® Atom® Processor E3940Single Socket FCBGA-1296 supported, CPU TDP supports Up to 9W TDP
    System Memory
    Memory Capacity1 DIMM slots
    Memory Type1866 MT/s DDR3L up to 8GB
    DIMM Sizes2GB, 4GB, 8GB
    Memory Voltage1.35V
    On-Board Devices
    ChipsetSystem on Chip
    SATASoC controller for 2 SATA3 (6 Gbps) portsMarvel 88SE9230 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,10
    AudioALC 888S HD Audio
    Graphics1 Intel® HD Graphics port(s)
    Network ControllersDual LAN with Intel® Ethernet Controller I210-AT
    Input / Output
    USB8 USB 2.0 port(s) (2 rear; 5 via header; 1 Type A)2 USB 3.0 port(s) (2 rear)
    Video Output1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s)
    Serial Port3 COM Port(s) (1 rear; 2 header)
    Others1 COM in RJ451 COM in RS2321 COM in RS485
    Expansion Slots
    PCIe1 PCIe 2.0 x2 (in x8 slot)1x Mini-PCIe with mSATA
    M.2Form Factor: 2280, 2242
    System BIOS
    BIOS TypeAMI UEFI
    Management
    SoftwareSuperDoctor® 5, Watchdog
    Power ConfigurationsACPI Power Management
    PC Health Monitoring
    VoltageSystem level control, Monitors CPU voltages, +5V standby, +5V, +3.3V, +12V, +1.8V
    FAN2x 4-pin fan headers (up to 2 fans)Thermal control tachometer fan connectorsSystem level controlPWM fan speed controlLow noise fan speed controlFan speed control
    Other FeaturesWOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ATX Power connector, ACPI power management, 4-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range-40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range8% - 90% (non-condensing)
    Non Operating Relative Humidity Range10% - 95% (non-condensing)
