A2SDI-16C-HLN4F,Embedded Denverton mITX,16Core,Quad 1GbE

MBD-A2SDI-16C-HLN4F-O
https://safeconsulting.no/web/image/product.template/10147/image_1920?unique=ba3907f

kr 9,594.16 9594.16 NOK kr 9,594.16

kr 9,594.16

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

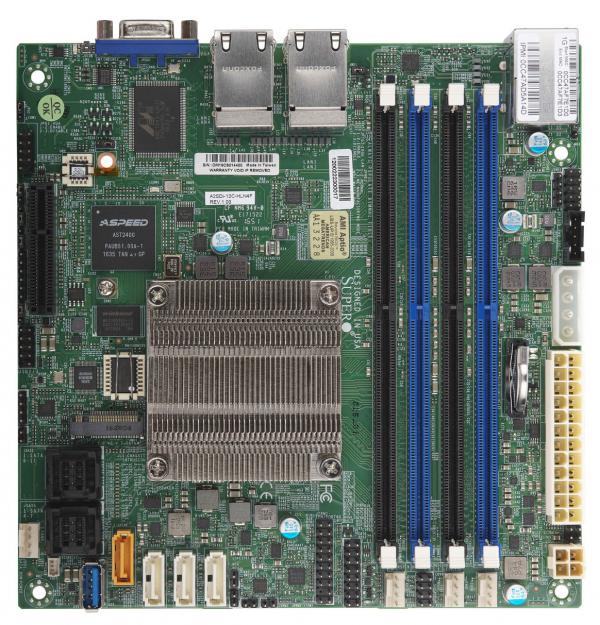

    The Supermicro MBD-A2SDI-16C-HLN4F-O is a highly versatile Mini-ITX motherboard designed for edge computing and small form factor servers. It is powered by the Intel Atom Processor C3955 and supports up to 256GB of ECC DDR4 memory.

    Key Features

    • Intel Atom Processor C3955,Single Socket FCBGA1310 supported,CPU TDP support 32W
    • Up to 256GB Registered ECC DDR4-2400MHz,Up to 64GB Unbuffered ECC/Non-ECC DDR4-2400MHz; in 4 DIMM slots
    • Expansion slots:1 PCIe 3.0 x4,M.2 Interface:PCIe 3.0 x2 and SATAM.2 Form Factor:2242, 2280M.2 Key:M-Key
    • 4 GbE LAN ports
    • 12 SATA3 (6 Gbps) ports
    • Supports 12V DC power input
    • I/O: 1 VGA, 1 COM, TPM header
    • System on Chip
    • 1 USB 3.0 (Type-A)4 USB 2.0 (2 rear, 2 via headers)

    Key Applications

    • Edge computing
    • Small form factor servers
    • Network appliances
    • Industrial automation

    Description

    The Supermicro MBD-A2SDI-16C-HLN4F-O motherboard offers robust performance and advanced features in a compact Mini-ITX form factor. Equipped with the Intel Atom Processor C3955, this motherboard supports up to 256GB of ECC DDR4 memory across four DIMM slots. It includes 4 RJ-45 gigabit Ethernet ports, 12 SATA3 ports, and multiple expansion slots including PCIe 3.0, M.2 interface, and USB slots. Additional features include a VGA port, COM port, TPM header, and system management software like SuperDoctor 5 and IPMI 2.0. This board is ideal for applications requiring high performance and reliability in a small footprint.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A2SDi-16C-HLN4F
    Physical Stats
    Form Factor
    • Mini-ITX
    Dimension
    • 6.7" x 6.7" (17.02cm x 17.02cm)
    Processor
    CPU
    • Intel® Atom® Processor C3955
    • Single Socket FCBGA-1310 supported, CPU TDP supports Up to 32W TDP
    Core
    • Up to 16 cores, 16 threads / 16MB Cache
    Note
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 256GB ECC RDIMM, DDR4-2400MT/s; Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MT/s
    Memory Type
    • 2400/2133/1866/1600 MT/s ECC/non-ECC DDR4 RDIMM Unbuffered
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB, 64GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 12 SATA3 (6 Gbps) ports
    IPMI
    • ASPEED AST2400 BMC
    Graphics
    • 1 ASPEED AST2400 BMC port(s)
    Network Controllers
    • Quad LAN with Intel® C3000 SoC, 1GbE
    Input / Output
    LAN
    • 4 RJ45 Gigabit Ethernet LAN ports
    USB
    • 4 USB 2.0 port(s) (2 via header; 2 rear)
    • 1 USB 3.2 Gen1 port(s) (1 type A)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    DOM
    • 1 SuperDOM(Disk on Module) ports
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x4
    M.2
    • M.2 Interface: SATA; PCIe 3.0 x2
    • Form Factor: 2280, 2242
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • UEFI 2.4
    • SMBIOS 2.7.1
    Management
    Software
    • SuperDoctor® 5, NMI, KVM with dedicated LAN,IPMI2.0, Watchdog
    System Management Software
    • SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power Configurations
    • Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 4 fans with tachometer monitoring, 4 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
    LED
    • UID/Remote UID
    Temperature
    • CPU thermal trip support
    FAN
    • 4x 4-pin fan headers (up to 4 fans)
    • Thermal control tachometer fan connectors, System level control, Fan speed control, Dual Cooling Zone, 4 fans with tachometer monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Support 3-pin fans (w/o speed control)
    Other Features
    • WOL, UID, System level control, RoHS, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, 12V DC or ATX Power Source, SDDC, Innovation Engine, 4-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Shield
    MCP-260-00084-0N1Standard I/O Shield for A2SDi-16C-HLN4F
    SATA Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    Retail Package
    I/O Shield
    MCP-260-00084-0N1Standard I/O Shield for A2SDi-16C-HLN4F
    QRG
    MNL-1951-QRG1Motherboard Quick Reference Guide

    Optional Part List

    Part Number Quantity Description
    1U I/O Shield
    MCP-260-00085-0B-1U I/O Shield for A2SDi-16C-HLN4F in SC505/504 Chassis
    MCP-260-00079-0N-1U I/O Shield for A2SDi-16C-HLN4F in SC813/512 Chassis
