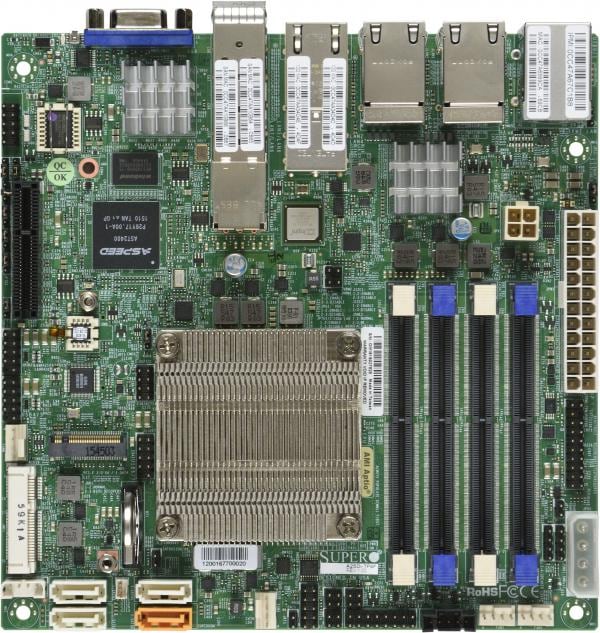

A2SDi-16C-TP8F,Embedded Mini-ITX,C3000 Atom SoC,ECC DDR4

MBD-A2SDI-16C-TP8F-O
https://safeconsulting.no/web/image/product.template/10151/image_1920?unique=ba3907f

kr 11,995.88 11995.880000000001 NOK kr 11,995.88

kr 11,995.88

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-A2SDI-16C-TP8F-O is a Mini-ITX motherboard featuring the powerful Intel Atom Processor C3958. It supports single socket FCBGA-1310 and offers up to 16 cores and 64GB memory capacity, making it ideal for high-performance and resilient server applications.

    Key Features

    • Intel® Atom® Processor C3958., Single Socket FCBGA-1310 supported, CPU TDP support 31W TDP
    • Up to 64GB Unbuffered ECC/non-ECC SO-DIMM, DDR4-2400MHz, in 4 DIMM slots
    • 1 PCIe 3.0 x41 miniPCIe with mSATA supports (half card only)M.2 Interface:PCIe 3.0 x4 and SATAM.2 Form Factor:2242, 2280M.2 Key:M-Key
    • SoC controller for 4 SATA3 (6 Gbps) ports;
    • Quad LAN with Intel® C3000 SoC2 10GBaseT, 2 10Gb SFP+Quad LAN with Intel® Ethernet Controller I350-AM41GbE
    • 1 VGA port
    • System on Chip

    Key Applications

    • Enterprise server solutions
    • Network appliances
    • Storage systems
    • Data center infrastructure

    Description

    The Supermicro MBD-A2SDI-16C-TP8F-O is designed with the Intel Atom Processor C3958 and single socket FCBGA-1310 support, offering up to 16 cores and 64GB SODIMM DDR4-2400MT/s. The motherboard provides comprehensive I/O options, including quad LAN ports, 1 PCIe 3.0 x4, and 4 SATA3 ports. Integrated management features like SuperDoctor 5 and IPMI 2.0 ensure efficient and reliable system monitoring. It's equipped for high thermal conditions, supporting operating temperatures from 0°C to 60°C and non-operating temperatures from -40°C to 85°C.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A2SDI-16C-TP8F
    Physical Stats
    Form Factor
    • Mini-ITX
    Dimension
    • 6.7" x 6.7" (17.02cm x 17.02cm)
    Processor
    CPU
    • Intel® Atom® Processor C3958
    • Single Socket FCBGA-1310 supported, CPU TDP supports Up to 31W TDP
    Core
    • Up to 16 cores, 16 threads / 16MB Cache
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 64GB Unbuffered ECC/non-ECC SODIMM, DDR4-2400MT/s
    Memory Type
    • 2400/2133/1866/1600 MT/s ECC/non-ECC DDR4 SODIMM Unbuffered
    DIMM Sizes
    • 4GB, 8GB, 16GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 4 SATA3 (6 Gbps) ports
    IPMI
    • ASPEED AST2400 BMC
    Graphics
    • 1 ASPEED AST2400 BMC port(s)
    Network Controllers
    • Quad LAN with Intel® C3000 SoC, 2 10GBaseT, 2 10Gb SFP+
    • Quad LAN with Intel® Ethernet Controller I350-AM4, 1GbE
    Input / Output
    SATA
    • 4 SATA3 (6Gbps) port(s)
    LAN
    • 4 RJ45 Gigabit Ethernet LAN ports
    • 2 10G SFP+ LAN ports
    • 2 RJ45 10GBase-T ports
    USB
    • 4 USB 2.0 port(s) (4 via header)
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    DOM
    • 1 SuperDOM(Disk on Module) ports
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x4
    • 1 miniPCIe with mSATA supports (half card only)
    M.2
    • M.2 Interface: PCIe 3.0 x4; SATA
    • Form Factor: 2242, 2280
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • UEFI 2.4
    • SMBIOS 2.7.1
    Management
    Software
    • SuperDoctor® 5, NMI,SUM, KVM with dedicated LAN,IPMI2.0, Watchdog
    System Management Software
    • SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power Configurations
    • Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 4 fans with tachometer monitoring, 4 -fan status, 1.2V (VDIMM), 1.05 (PCH), +5V, +12V, +1.8V, VCGI
    LED
    • UID/Remote UID
    Temperature
    • CPU thermal trip support
    FAN
    • 4x 4-pin fan headers (up to 4 fans)
    • Thermal control tachometer fan connectors, System level control, Fan speed control, Dual Cooling Zone, 4 fans with tachometer monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Overheat LED indication, Support 3-pin fans (w/o speed control)
    Other Features
    • WOL, UID, System level control, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, 12V DC or ATX Power Source, SDDC, Innovation Engine, 4-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Shield
    MCP-260-00098-0N1Standard I/O Shield for
    SATA Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    Retail Package
    QRG
    CBL-0044L1Motherboard Quick Reference Guide

    Optional Part List

    Part Number Quantity Description
    1U I/O Shield
    MCP-260-00100-0B-1U I/O Shield for A2SDi-TP8F in SC505/504 Chassis
    MCP-260-00099-0N-1U I/O Shield for A2SDi-TP8F in SC813/512 Chassis
