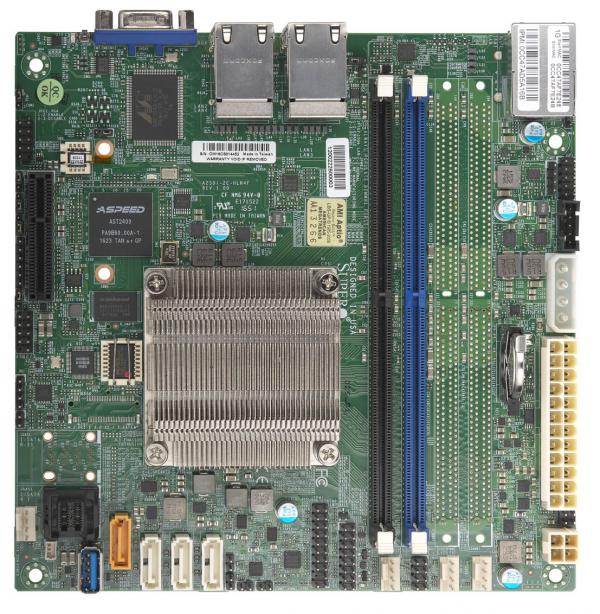

A2SDI-2C-HLN4F,Embed.Denverton mITX,2 Core,Quad 1GbE

MBD-A2SDI-2C-HLN4F-B
https://safeconsulting.no/web/image/product.template/10138/image_1920?unique=ba3907f

kr 2,998.97 2998.9700000000003 NOK kr 2,998.97

kr 2,998.97

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-A2SDI-2C-HLN4F-B is a compact Mini-ITX motherboard designed for applications requiring reliable performance in small form factors. Powered by the Intel Atom C3338 processor, it supports up to 128GB ECC DDR4 memory, provides flexible I/O options, and includes four Gigabit Ethernet ports.

    Key Features

    • Intel Atom Processor C3338,Single Socket FCBGA1310 supported,CPU TDP support 9W
    • Up to 128GB Registered ECC DDR4-1866MHz,Up to 32GB Unbuffered ECC/Non-ECC DDR4-1866MHz; in 2 DIMM slots
    • Expansion slots:1 PCIe 3.0 up to x4 (in x4 slot)*Flexible I/O - software configurable in BIOS setup
    • 4 GbE LAN ports
    • Up to 8 SATA3 (6 Gbps) ports via SoC*Flexible I/O - software configurable in BIOS setup
    • Supports 12V DC power input
    • I/O: 1 VGA, 1 COM, TPM header
    • System on Chip
    • 1 USB 3.0 (Type-A)4 USB 2.0 (2 rear, 2 via headers)

    Key Applications

    • Edge Computing
    • Network Security
    • IoT Gateways
    • Home Servers
    • Embedded Applications

    Description

    The Supermicro MBD-A2SDI-2C-HLN4F-B Mini-ITX motherboard offers a powerful and flexible platform suitable for versatile computing environments. It features the Intel Atom C3338 processor with support for up to 128GB ECC DDR4 memory slots in 2 DIMM slots and comes packed with a range of I/O options including VGA, USB, and COM ports. The motherboard is equipped with four GbE LAN ports and supports up to 8 SATA3 (6 Gbps) ports. It also features a System on Chip design, 1 VGA port, multiple USB connections, and the capability to support various expansions through PCIe.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A2SDi-2C-HLN4F
    Physical Stats
    Form Factor
    • Mini-ITX
    Dimension
    • 6.7" x 6.7" (17.02cm x 17.02cm)
    Processor
    CPU
    • Intel® Atom® Processor C3338
    • Single Socket FCBGA-1310 supported, CPU TDP supports Up to 9W TDP
    Core
    • Up to 2 cores, 2 threads / 4MB Cache
    System Memory
    Memory Capacity
    • 2 DIMM slots
    • Up to 128GB ECC RDIMM, DDR4-1866MT/s; Up to 32GB Unbuffered ECC/non-ECC UDIMM, DDR4-1866MT/s
    Memory Type
    • 2400/2133/1866/1600 MT/s ECC/non-ECC DDR4 RDIMM Unbuffered (Operating speed up to 1866MHz)
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB, 64GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    IPMI
    • ASPEED AST2400 BMC
    Graphics
    • 1 ASPEED AST2400 BMC port(s)
    Network Controllers
    • Quad LAN with Intel® C3000 SoC, 1GbE
    SATA
    Input / Output
    LAN
    • 4 RJ45 Gigabit Ethernet LAN ports
    USB
    • 4 USB 2.0 port(s) (2 via header; 2 rear)
    • 1 USB 3.2 Gen1 port(s) (1 type A)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    DOM
    • 1 SuperDOM(Disk on Module) ports
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 up to x4 (in x4 slot)
    • *Number of PCIe lane is configurable via BIOS setup: 0, 2, or 4. Total combined PCIe lanes and SATA ports is up to 8.
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • UEFI 2.4
    • SMBIOS 2.7.1
    Management
    Software
    • SuperDoctor® 5, NMI, KVM with dedicated LAN,IPMI2.0, Watchdog
    System Management Software
    • SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power Configurations
    • Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 4 fans with tachometer monitoring, 4 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
    LED
    • UID/Remote UID
    Temperature
    • CPU thermal trip support
    FAN
    • 4x 4-pin fan headers (up to 4 fans)
    • Thermal control tachometer fan connectors, System level control, Fan speed control, Dual Cooling Zone, 4 fans with tachometer monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Support 3-pin fans (w/o speed control)
    Other Features
    • WOL, UID, System level control, RoHS, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, 12V DC or ATX Power Source, SDDC, Innovation Engine, 4-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Shield
    MCP-260-00084-0N1Standard I/O Shield for A2SDi-2C-HLN4F
    SATA Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    Retail Package
    I/O Shield
    MCP-260-00084-0N1Standard I/O Shield for A2SDi-2C-HLN4F
    QRG
    MNL-1951-QRG1Motherboard Quick Reference Guide

    Optional Part List

    Part Number Quantity Description
    1U I/O Shield
    MCP-260-00085-0B-1U I/O Shield for A2SDi-2C-HLN4F in SC505/504 Chassis
    MCP-260-00079-0N-1U I/O Shield for A2SDi-2C-HLN4F in SC813/512 Chassis
