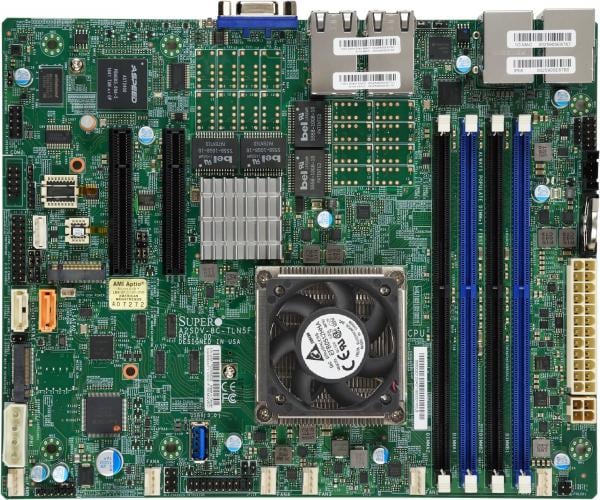

A2SDV-12C+-TLN5F,Embedded Denverton Flex ATX,12Core,Quad

Name: A2SDV-12C+-TLN5F,Embedded Denverton Flex ATX,12Core,Quad
Brand: supermicro
SKU: MBD-A2SDV-12C+-TLN5F-B
Price: 10089.76 NOK
Availability: OutOfStock

SKU:

MBD-A2SDV-12C+-TLN5F-B

kr 10,089.76 10089.76 NOK kr 10,089.76

kr 10,089.76

This combination does not exist.

ADD TO CART

Terms and Conditions

Summary Description

The Supermicro MBD-A2SDV-12C+-TLN5F-B motherboard offers robust performance with the Intel Atom Processor C3858, supporting up to 256GB ECC DDR4 memory. It is designed for flexibility with multiple I/O options including 4x 10GbE LAN ports and 2 SATA3 ports.

Key Features

Intel Atom Processor C3858,Single Socket FCBGA1310 supported,CPU TDP support 25W
Intel Quick Assist Technology
Up to 256GB Registered ECC DDR4-2400MHz,Up to 64GB Unbuffered ECC/Non-ECC DDR4-2400MHz; in 4 DIMM slots
Expansion slots:1 PCIe 3.0 x8 (Slot 6 or 7 option)
M.2 Interfaces:1 M-Key 2242/80 supports PCIe 3.0 x2/SATA1 B-Key 3042/2280 supports PCIe 3.0 x2/SATA/USB
4x 10GbE LAN ports,1x 1GbE LAN port (IPMI shared LAN)
2 SATA3 (6 Gbps) ports
Supports 12V DC power input
System on Chip
I/O: 1 VGA, 2 COM (1 via header, 1 rear RJ45), TPM header
5 USB 3.0 (4 rear, Type-A)2 USB 2.0 (2 via headers)

Key Applications

Networking
Storage servers
Enterprise applications
Cloud computing
Data processing

Description

Supermicro MBD-A2SDV-12C+-TLN5F-B is an exceptional motherboard incorporating the Intel Atom Processor C3858, supporting single socket FCBGA1310. It allows up to 256GB of ECC DDR4 memory in 4 DIMM slots and includes Intel Quick Assist Technology for enhanced data compression and encryption. Ideal for various high-speed network applications, it features 4x 10GbE LAN ports, along with substantial I/O options including 5 USB 3.0 ports, 2 USB 2.0 ports, 2 COM ports, and a TPM header. Additionally, it supports 12V DC power input and comes with various expansion slots including 1 PCIe 3.0 x8 and M.2 interfaces.

Product Specifications

Specification	Details
Product SKUs
SKUs	MBD-A2SDV-12C+-TLN5F
Physical Stats
Form Factor	Flex ATX
Dimension	9" x 7.25" (22.86cm x 18.42cm)
Processor
CPU	Intel® Atom® Processor C3858 Single Socket FCBGA-1310 supported, CPU TDP supports Up to 25W TDP
Core	Up to 12 cores, 12 threads / 12MB Cache
Note
System Memory
Memory Capacity	4 DIMM slots Up to 256GB ECC RDIMM, DDR4-2400MT/s; Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MT/s
Memory Type	2400/2133/1866/1600 MT/s ECC/non-ECC DDR4 RDIMM Unbuffered
DIMM Sizes	4GB, 8GB, 16GB, 32GB, 64GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	System on Chip
SATA	SoC controller for 2 SATA3 (6 Gbps) ports
IPMI	ASPEED AST2400 BMC
Graphics	1 ASPEED AST2400 BMC port(s)
Network Controllers	Quad LAN with 10GBase-T with Intel® X557 Single LAN with Intel® i210 Gigabit Ethernet Controller
Input / Output
LAN	4 RJ45 10GBase-T ports 1 RJ45 GbE port (IPMI Shared LAN)
USB	2 USB 2.0 port(s) (2 via header) 5 USB 3.2 Gen1 port(s) (4 rear; 1 type A)
Video Output	1 VGA port(s)
Serial Port	1 COM Port(s) (1 header)
DOM	1 SuperDOM(Disk on Module) ports
TPM	1 TPM Header
Expansion Slots
PCIe	1 PCIe 3.0 x8 Option for Slot 6 or Slot 7
M.2
System BIOS
BIOS Type	AMI UEFI
BIOS Features	UEFI 2.4 SMBIOS 2.7.1
Management
Software	SuperDoctor® 5, NMI,IPMI2.0, Watchdog
System Management Software	SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations	Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection
PC Health Monitoring
Voltage	VBAT, System temperature, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 6 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
LED	UID/Remote UID
Temperature	CPU thermal trip support
FAN	6x 4-pin fan headers (up to 6 fans) Thermal control tachometer fan connectors, System level control, Fan speed control, Dual Cooling Zone, 6 fans with tachometer status monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Support 3-pin fans (w/o speed control)
Other Features	WOL, UID, System level control, RoHS, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, 12V DC or ATX Power Source, SDDC, Intel® QuickAssist Technology, Innovation Engine, 4-pin 12v DC power connector
Operating Environment
Operating Temperature Range	0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range	-40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range	10% - 85% (non-condensing)
Non Operating Relative Humidity Range	10% - 95% (non-condensing)

Standard Part List

Part Number	Quantity	Description
Bulk Package
I/O Shield
MCP-260-00084-0N	1	Standard I/O Shield for A2SDV-TLN5F
SATA Cables
CBL-0044L	2	57.5CM SATA FLAT S-S PBF
Retail Package
I/O Shield
MCP-260-00084-0N	1	Standard I/O Shield for A2SDV-TLN5F
QRG
MNL-2015-QRG	1	Motherboard Quick Reference Guide
SATA Cables
CBL-0044L	2	57.5CM SATA FLAT S-S PBF

Optional Part List

Part Number	Quantity	Description
1U I/O Shield
MCP-260-00085-0B	-	1U I/O Shield for A2SDV-TLN5F in SC510/505/504 Chassis
MCP-260-00079-0N	-	1U I/O Shield for A2SDV-TLN5F in SC813/512 Chassis
