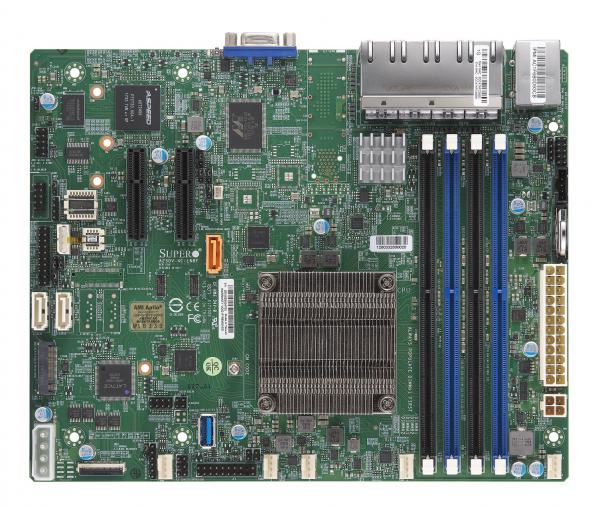

A2SDV-4C-LN8F,Embedded Denverton Flex ATX,4 Core,8x 1GbE

MBD-A2SDV-4C-LN8F-O
https://safeconsulting.no/web/image/product.template/10161/image_1920?unique=ba3907f

kr 4,981.34 4981.34 NOK kr 4,981.34

kr 4,981.34

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-A2SDV-4C-LN8F-O is designed for efficient performance and flexibility. It supports Intel® Atom® Processor C3558 with a maximum TDP of 16W, 8 RJ45 Gigabit Ethernet LAN ports, and up to 256GB of ECC DDR4 memory across four DIMM slots. The motherboard comes equipped with comprehensive input/output options and expansion capabilities, making it a powerful solution for various applications.

    Key Features

    • Intel® Atom® Processor C3558,Single Socket FCBGA1310 supported,CPU TDP support 16W
    • Intel Quick Assist Technology
    • Up to 256GB Registered ECC DDR4-2133MHz,Up to 64GB Unbuffered ECC/Non-ECC DDR4-2133MHz; in 4 DIMM slots
    • M.2 Interfaces:1 B-Key 3042/2280 supports PCIe 3.0 x2/SATA/USB
    • Expansion slots:1 PCIe 3.0 x2 (Slot 6 or 7 option)
    • 8x 1GbE RJ45 LAN ports
    • 3 SATA3 (6 Gbps) ports
    • Supports 12V DC power input
    • System on Chip
    • I/O: 1 VGA, 1 COM (1 via header), TPM header
    • 3 USB 3.0 (2 rear, Type-A)2 USB 2.0 (2 via headers)

    Key Applications

    • Network communication
    • Industrial automation
    • Data center management
    • Edge computing devices
    • IoT applications

    Description

    The Supermicro MBD-A2SDV-4C-LN8F-O is a versatile and powerful Flex ATX motherboard engineered for optimal performance in various computing environments. Powered by an Intel® Atom® Processor C3558, this motherboard supports up to 256GB of ECC DDR4 memory, ensuring both high performance and reliability. Its extensive input/output capabilities include 8 Gigabit Ethernet LAN ports, multiple USB ports, and support for M.2 and PCIe 3.0 expansions. Additional features such as Intel® Quick Assist Technology, comprehensive power management options, and robust health monitoring make it suitable for diverse applications ranging from network communication to industrial automation. The board's architectural design includes System on Chip, multiple storage ports, and a variety of management interfaces, making it a top-notch choice for professionals seeking a reliable and high-performing motherboard.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A2SDV-4C-LN8F
    Physical Stats
    Form Factor
    • Flex ATX
    Dimension
    • 9" x 7.25" (22.86cm x 18.42cm)
    Processor
    CPU
    • Intel® Atom® Processor C3558
    • Single Socket FCBGA-1310 supported, CPU TDP supports Up to 16W TDP
    Core
    • Up to 4 cores, 4 threads / 8MB Cache
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 256GB ECC RDIMM, DDR4-2133MT/s; Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MT/s
    Memory Type
    • 2400/2133/1866/1600 MT/s ECC/non-ECC DDR4 RDIMM Unbuffered (Operating speed up to 2133MHz)
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB, 64GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 3 SATA3 (6 Gbps) ports
    IPMI
    • ASPEED AST2400 BMC
    Graphics
    • 1 ASPEED AST2400 BMC port(s)
    Network Controllers
    • Quad LAN with Intel® Ethernet Controller I350-AM4
    • Quad LAN with Intel® C3000 SoC
    Input / Output
    LAN
    • 1 RJ45 Dedicated IPMI LAN port
    • 8 RJ45 Gigabit Ethernet LAN ports
    USB
    • 2 USB 2.0 port(s) (2 via header)
    • 1 USB 3.2 Gen1 port(s) (1 type A)
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    DOM
    • 1 SuperDOM(Disk on Module) ports
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x2 (in x4 slot)
    • Option for Slot 6 or Slot 7
    M.2
    • M.2 Interface: 1 SATA/PCIe 3.0 x2/USB 3.0
    • Form Factor: 2280, 3042
    • Key: B-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • UEFI 2.4
    • SMBIOS 2.7.1
    Management
    Software
    • SuperDoctor® 5, NMI,IPMI2.0, Watchdog
    System Management Software
    • SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power Configurations
    • Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection
    PC Health Monitoring
    Voltage
    • VBAT, Chassis intrusion header, 5 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
    LED
    • UID/Remote UID
    Temperature
    • CPU thermal trip support
    FAN
    • 5x 4-pin fan headers (up to 5 fans)
    • Fan speed control
    • Dual Cooling Zone
    • 5 fans with tachometer status monitoring
    Other Features
    • UID, RoHS, M.2 NGFF connector, Dual Cooling Zones, Chassis intrusion header, ATX Power connector, ACPI power management, Intel® QuickAssist Technology, 4-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Shield
    MCP-260-00133-0N1Standard I/O Shield for A2SDV-LN8F/LN10PF
    SATA Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    Retail Package
    I/O Shield
    MCP-260-00133-0N1Standard I/O Shield for A2SDV-LN8F/LN10PF
    Plastic Standoff
    FST-SCRW-00101Stand Off, H=3MM
    QRG
    MNL-2113-QRG1Motherboard Quick Reference Guide
    SATA Cables
    CBL-0044L357.5CM SATA FLAT S-S PBF

    Optional Part List

    Part Number Quantity Description
    1U I/O Shield
    MCP-260-00135-0B-1U I/O Shield for A2SDV-LN8F/LN10PF in SC510/505/504 Chassis
    MCP-260-00134-0N-1U I/O Shield for A2SDV-LN8F/LN10PF in SC813/512 Chassis
