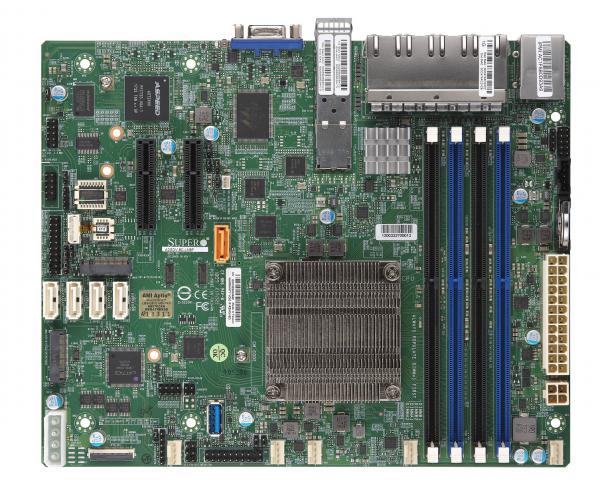

A2SDV-8C-LN10PF,Embedded Denverton Flex ATX,8 Core,8x1Gb

MBD-A2SDV-8C-LN10PF-B
https://safeconsulting.no/web/image/product.template/10168/image_1920?unique=b674791

kr 6,998.77 6998.77 NOK kr 6,998.77

kr 6,998.77

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro MBD-A2SDV-8C-LN10PF-B is a high-performance motherboard equipped with the Intel® Atom® Processor C3758. It supports up to 256GB ECC DDR4 memory across four DIMM slots and offers comprehensive connectivity, including multiple LAN ports and USB interfaces. Enhanced by Intel® Quick Assist Technology, this motherboard is optimized for high data throughput and reliability.

    Key Features

    • Intel® Atom® Processor C3758,Single Socket FCBGA1310 supported,CPU TDP support 25W
    • Intel Quick Assist Technology
    • Up to 256GB Registered ECC DDR4-2400MHz,Up to 64GB Unbuffered ECC/Non-ECC DDR4-2400MHz; in 4 DIMM slots
    • M.2 Interfaces:1 M-Key 2242/80 supports PCIe 3.0 x2/SATA1 B-Key 3042/2280 supports PCIe 3.0 x2/SATA/USB
    • Expansion slots:1 PCIe 3.0 x4 (Slot 6 or 7 option)
    • 8x 1GbE RJ45 LAN ports2x 1GbE SFP LAN ports
    • 5 SATA3 (6 Gbps) ports
    • Supports 12V DC power input
    • System on Chip
    • I/O: 1 VGA, 1 COM (1 via header), TPM header
    • 3 USB 3.0 (2 rear, Type-A)2 USB 2.0 (2 via headers)

    Key Applications

    • Data centers
    • Network appliances
    • IoT devices
    • Embedded systems

    Description

    The Supermicro MBD-A2SDV-8C-LN10PF-B is designed to deliver robust performance and reliability. It features the Intel® Atom® Processor C3758 with 8 cores and 8 threads, supporting up to 256GB ECC DDR4 memory. The motherboard includes a variety of expansion options, such as PCIe, M.2, and SATA ports, enhancing its versatility for different applications. With integrated network controllers offering multiple Gigabit Ethernet ports, it ensures high-speed connectivity and robust network performance. The board also incorporates various I/O interfaces including VGA, USB, and COM ports, making it suitable for a wide range of computing environments.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A2SDV-8C-LN10PF
    Physical Stats
    Form Factor
    • Flex ATX
    Dimension
    • 9" x 7.25" (22.86cm x 18.42cm)
    Processor
    CPU
    • Intel® Atom® Processor C3758
    • Single Socket FCBGA-1310 supported, CPU TDP supports Up to 25W TDP
    Core
    • Up to 8 cores, 8 threads / 16MB Cache
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 256GB ECC RDIMM, DDR4-2400MT/s; Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MT/s
    Memory Type
    • 2400/2133/1866/1600 MT/s ECC/non-ECC DDR4 RDIMM Unbuffered
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB, 64GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 5 SATA3 (6 Gbps) ports
    IPMI
    • ASPEED AST2400 BMC
    Graphics
    • 1 ASPEED AST2400 BMC port(s)
    Network Controllers
    • Quad LAN with Intel® Ethernet Controller I350-AM4
    • Quad LAN with Intel® C3000 SoC
    • Dual LAN with Intel® I210-IS 1G SFP
    Input / Output
    LAN
    • 1 RJ45 Dedicated IPMI LAN port
    • 8 RJ45 Gigabit Ethernet LAN ports
    • 2 1G SFP LAN ports
    USB
    • 2 USB 2.0 port(s) (2 via header)
    • 1 USB 3.2 Gen1 port(s) (1 type A)
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    DOM
    • 1 SuperDOM(Disk on Module) ports
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x4
    • Option for Slot 6 or Slot 7
    M.2
    • M.2 Interface: 1 SATA/PCIe 3.0 x2; 1 SATA/PCIe 3.0 x2/USB 3.0
    • Form Factor: 2242/2280, 3042/2280
    • Key: M-Key, B-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • UEFI 2.4
    • SMBIOS 2.7.1
    Management
    Software
    • SuperDoctor® 5, NMI,IPMI2.0, Watchdog
    System Management Software
    • SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power Configurations
    • Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection
    PC Health Monitoring
    Voltage
    • VBAT, Chassis intrusion header, 5 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
    LED
    • UID/Remote UID
    Temperature
    • CPU thermal trip support
    FAN
    • 5x 4-pin fan headers (up to 5 fans)
    • Fan speed control
    • Dual Cooling Zone
    • 5 fans with tachometer status monitoring
    Other Features
    • UID, RoHS, M.2 NGFF connector, Dual Cooling Zones, Chassis intrusion header, ATX Power connector, ACPI power management, Intel® QuickAssist Technology, 4-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Shield
    MCP-260-00133-0N1Standard I/O Shield for A2SDV-LN8F/LN10PF
    SATA Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    Retail Package
    I/O Shield
    MCP-260-00133-0N1Standard I/O Shield for A2SDV-LN8F/LN10PF
    Plastic Standoff
    FST-SCRW-00101Stand Off, H=3MM
    QRG
    MNL-2113-QRG1Motherboard Quick Reference Guide
    SATA Cables
    CBL-0044L557.5CM SATA FLAT S-S PBF

    Optional Part List

    Part Number Quantity Description
    1U I/O Shield
    MCP-260-00135-0B-1U I/O Shield for A2SDV-LN8F/LN10PF in SC510/505/504 Chassis
    MCP-260-00134-0N-1U I/O Shield for A2SDV-LN8F/LN10PF in SC813/512 Chassis
