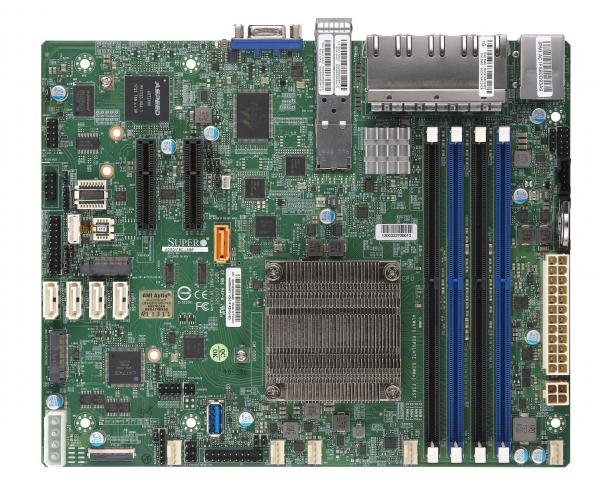

A2SDV-8C-LN10PF,Embedded Denverton Flex ATX,8 Core,8x1Gb

MBD-A2SDV-8C-LN10PF-O
https://safeconsulting.no/web/image/product.template/10167/image_1920?unique=ba3907f

kr 7,154.32 7154.32 NOK kr 7,154.32

kr 7,154.32

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-A2SDV-8C-LN10PF-O offers robust computing performance with its Intel Atom C3758 processor. It supports up to 256GB ECC DDR4 memory, advanced networking with 1GbE and 1G SFP ports, and multiple expansion slots, making it ideal for server applications.

    Key Features

    • Intel® Atom® Processor C3758,Single Socket FCBGA1310 supported,CPU TDP support 25W
    • Intel Quick Assist Technology
    • Up to 256GB Registered ECC DDR4-2400MHz,Up to 64GB Unbuffered ECC/Non-ECC DDR4-2400MHz; in 4 DIMM slots
    • M.2 Interfaces:1 M-Key 2242/80 supports PCIe 3.0 x2/SATA1 B-Key 3042/2280 supports PCIe 3.0 x2/SATA/USB
    • Expansion slots:1 PCIe 3.0 x4 (Slot 6 or 7 option)
    • 8x 1GbE RJ45 LAN ports2x 1GbE SFP LAN ports
    • 5 SATA3 (6 Gbps) ports
    • Supports 12V DC power input
    • System on Chip
    • I/O: 1 VGA, 1 COM (1 via header), TPM header
    • 3 USB 3.0 (2 rear, Type-A)2 USB 2.0 (2 via headers)

    Key Applications

    • Data Centers
    • Network Appliances
    • Embedded Systems

    Description

    The Supermicro MBD-A2SDV-8C-LN10PF-O motherboard is designed for high-performance server applications. It is equipped with an Intel Atom C3758 processor, supporting up to 8 cores and 16 threads. This motherboard offers up to 256GB ECC DDR4 memory across 4 DIMM slots. Advanced networking options include 8 1GbE RJ45 LAN ports and 2 1G SFP LAN ports. Other features include 5 SATA3 ports, 12V DC power input, and a variety of I/O options including VGA, COM, USB, and TPM header. The motherboard also supports Intel Quick Assist Technology for enhanced performance.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A2SDV-8C-LN10PF
    Physical Stats
    Form Factor
    • Flex ATX
    Dimension
    • 9" x 7.25" (22.86cm x 18.42cm)
    Processor
    CPU
    • Intel® Atom® Processor C3758
    • Single Socket FCBGA-1310 supported, CPU TDP supports Up to 25W TDP
    Core
    • Up to 8 cores, 8 threads / 16MB Cache
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 256GB ECC RDIMM, DDR4-2400MT/s; Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MT/s
    Memory Type
    • 2400/2133/1866/1600 MT/s ECC/non-ECC DDR4 RDIMM Unbuffered
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB, 64GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 5 SATA3 (6 Gbps) ports
    IPMI
    • ASPEED AST2400 BMC
    Graphics
    • 1 ASPEED AST2400 BMC port(s)
    Network Controllers
    • Quad LAN with Intel® Ethernet Controller I350-AM4
    • Quad LAN with Intel® C3000 SoC
    • Dual LAN with Intel® I210-IS 1G SFP
    Input / Output
    LAN
    • 1 RJ45 Dedicated IPMI LAN port
    • 8 RJ45 Gigabit Ethernet LAN ports
    • 2 1G SFP LAN ports
    USB
    • 2 USB 2.0 port(s) (2 via header)
    • 1 USB 3.2 Gen1 port(s) (1 type A)
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    DOM
    • 1 SuperDOM(Disk on Module) ports
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x4
    • Option for Slot 6 or Slot 7
    M.2
    • M.2 Interface: 1 SATA/PCIe 3.0 x2; 1 SATA/PCIe 3.0 x2/USB 3.0
    • Form Factor: 2242/2280, 3042/2280
    • Key: M-Key, B-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • UEFI 2.4
    • SMBIOS 2.7.1
    Management
    Software
    • SuperDoctor® 5, NMI,IPMI2.0, Watchdog
    System Management Software
    • SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power Configurations
    • Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection
    PC Health Monitoring
    Voltage
    • VBAT, Chassis intrusion header, 5 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
    LED
    • UID/Remote UID
    Temperature
    • CPU thermal trip support
    FAN
    • 5x 4-pin fan headers (up to 5 fans)
    • Fan speed control
    • Dual Cooling Zone
    • 5 fans with tachometer status monitoring
    Other Features
    • UID, RoHS, M.2 NGFF connector, Dual Cooling Zones, Chassis intrusion header, ATX Power connector, ACPI power management, Intel® QuickAssist Technology, 4-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Shield
    MCP-260-00133-0N1Standard I/O Shield for A2SDV-LN8F/LN10PF
    SATA Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    Retail Package
    I/O Shield
    MCP-260-00133-0N1Standard I/O Shield for A2SDV-LN8F/LN10PF
    Plastic Standoff
    FST-SCRW-00101Stand Off, H=3MM
    QRG
    MNL-2113-QRG1Motherboard Quick Reference Guide
    SATA Cables
    CBL-0044L557.5CM SATA FLAT S-S PBF

    Optional Part List

    Part Number Quantity Description
    1U I/O Shield
    MCP-260-00135-0B-1U I/O Shield for A2SDV-LN8F/LN10PF in SC510/505/504 Chassis
    MCP-260-00134-0N-1U I/O Shield for A2SDV-LN8F/LN10PF in SC813/512 Chassis
