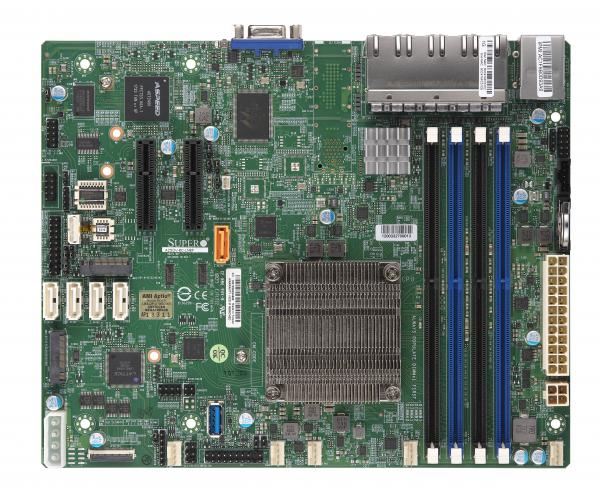

A2SDV-8C-LN8F,Embedded Denverton Flex ATX,8 Core,8x 1GbE

MBD-A2SDV-8C-LN8F-O
https://safeconsulting.no/web/image/product.template/10165/image_1920?unique=5e77b27

kr 6,636.33 6636.33 NOK kr 6,636.33

kr 6,636.33

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro MBD-A2SDV-8C-LN8F-O is a feature-packed Flex ATX motherboard designed for high performance and reliability. Powered by the Intel® Atom® Processor C3758 with Quick Assist Technology, it supports up to 256GB ECC DDR4 memory, multiple I/O options, and advanced management features.

    Key Features

    • Intel® Atom® Processor C3758,Single Socket FCBGA1310 supported,CPU TDP support 25W
    • Intel Quick Assist Technology
    • Up to 256GB Registered ECC DDR4-2400MHz,Up to 64GB Unbuffered ECC/Non-ECC DDR4-2400MHz; in 4 DIMM slots
    • M.2 Interfaces:1 M-Key 2242/80 supports PCIe 3.0 x2/SATA1 B-Key 3042/2280 supports PCIe 3.0 x2/SATA/USB
    • Expansion slots:1 PCIe 3.0 x4 (Slot 6 or 7 option)
    • 8x 1GbE RJ45 LAN ports
    • 5 SATA3 (6 Gbps) ports
    • Supports 12V DC power input
    • System on Chip
    • I/O: 1 VGA, 1 COM (1 via header), TPM header
    • 3 USB 3.0 (2 rear, Type-A)2 USB 2.0 (2 via headers)

    Key Applications

    • Small form factor servers
    • Network appliances
    • IoT gateways
    • Edge computing
    • Storage solutions

    Description

    Supermicro MBD-A2SDV-8C-LN8F-O is a versatile and high-performance motherboard that leverages the power of Intel® Atom® Processor C3758. Featuring eight cores, it supports up to 256GB of ECC DDR4 memory across four DIMM slots. The board is equipped with various I/O interfaces, including eight 1GbE RJ45 LAN ports, multiple SATA3 ports, and USB 3.0. With its robust design, it provides exceptional reliability and flexibility for a range of server and network applications. Additionally, it supports advanced management tools like IPMI 2.0 and SuperDoctor® 5 for efficient system management.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A2SDV-8C-LN8F
    Physical Stats
    Form Factor
    • Flex ATX
    Dimension
    • 9" x 7.25" (22.86cm x 18.42cm)
    Processor
    CPU
    • Intel® Atom® Processor C3758
    • Single Socket FCBGA-1310 supported, CPU TDP supports Up to 25W TDP
    Core
    • Up to 8 cores, 8 threads / 16MB Cache
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 256GB ECC RDIMM, DDR4-2400MT/s; Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MT/s
    Memory Type
    • 2400/2133/1866/1600 MT/s ECC/non-ECC DDR4 RDIMM Unbuffered
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB, 64GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 5 SATA3 (6 Gbps) ports
    IPMI
    • ASPEED AST2400 BMC
    Graphics
    • 1 ASPEED AST2400 BMC port(s)
    Network Controllers
    • Quad LAN with Intel® Ethernet Controller I350-AM4
    • Quad LAN with Intel® C3000 SoC
    Input / Output
    LAN
    • 1 RJ45 Dedicated IPMI LAN port
    • 8 RJ45 Gigabit Ethernet LAN ports
    USB
    • 2 USB 2.0 port(s) (2 via header)
    • 1 USB 3.2 Gen1 port(s) (1 type A)
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    DOM
    • 1 SuperDOM(Disk on Module) ports
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x4
    • Option for Slot 6 or Slot 7
    M.2
    • M.2 Interface: 1 SATA/PCIe 3.0 x2; 1 SATA/PCIe 3.0 x2/USB 3.0
    • Form Factor: 2242/2280, 3042/2280
    • Key: M-Key, B-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • UEFI 2.4
    • SMBIOS 2.7.1
    Management
    Software
    • SuperDoctor® 5, NMI,IPMI2.0, Watchdog
    System Management Software
    • SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power Configurations
    • Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection
    PC Health Monitoring
    Voltage
    • VBAT, Chassis intrusion header, 5 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
    LED
    • UID/Remote UID
    Temperature
    • CPU thermal trip support
    FAN
    • 5x 4-pin fan headers (up to 5 fans)
    • Fan speed control
    • Dual Cooling Zone
    • 5 fans with tachometer status monitoring
    Other Features
    • UID, RoHS, M.2 NGFF connector, Dual Cooling Zones, Chassis intrusion header, ATX Power connector, ACPI power management, Intel® QuickAssist Technology, 4-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Shield
    MCP-260-00133-0N1Standard I/O Shield for A2SDV-LN8F/LN10PF
    SATA Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    Retail Package
    I/O Shield
    MCP-260-00133-0N1Standard I/O Shield for A2SDV-LN8F/LN10PF
    Plastic Standoff
    FST-SCRW-00101Stand Off, H=3MM
    QRG
    MNL-2113-QRG1Motherboard Quick Reference Guide
    SATA Cables
    CBL-0044L557.5CM SATA FLAT S-S PBF

    Optional Part List

    Part Number Quantity Description
    1U I/O Shield
    MCP-260-00135-0B-1U I/O Shield for A2SDV-LN8F/LN10PF in SC510/505/504 Chassis
    MCP-260-00134-0N-1U I/O Shield for A2SDV-LN8F/LN10PF in SC813/512 Chassis
