A3SEV-2C-LN4, Mini ITX, Elkhard Lake ATOM EmbeddedSoCBGA

• Intel® Atom® Processor x6211E.Socket FCBGA-1493 supported, CPU TDP supports Up to 6W TDP
• Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-3200MHz, in 2 DIMM slots
• 1 PCIe 3.0 X2 (in x8 slot)1 M.2 B-Key SATA/PCIe 3.0 x2/USB 3.0, 3042/22801 M.2 E-Key PCIe 3.0 x1/USB 2.0, 2230
• Single LAN with Intel® Ethernet Controller I210ITONLY i210 support PXE3 LAN with 1GbE with Marvell® 88E1512
• System on Chip
• 1 DP (DisplayPort) port, 1 HDMI port, 1 VGA port or 1 eDP (Embedded DisplayPort) port, Supports 3 independent displays

• Industrial PCs
• Embedded Systems
• Edge Computing
• IoT Gateways
• Digital Signage
• Automation Control

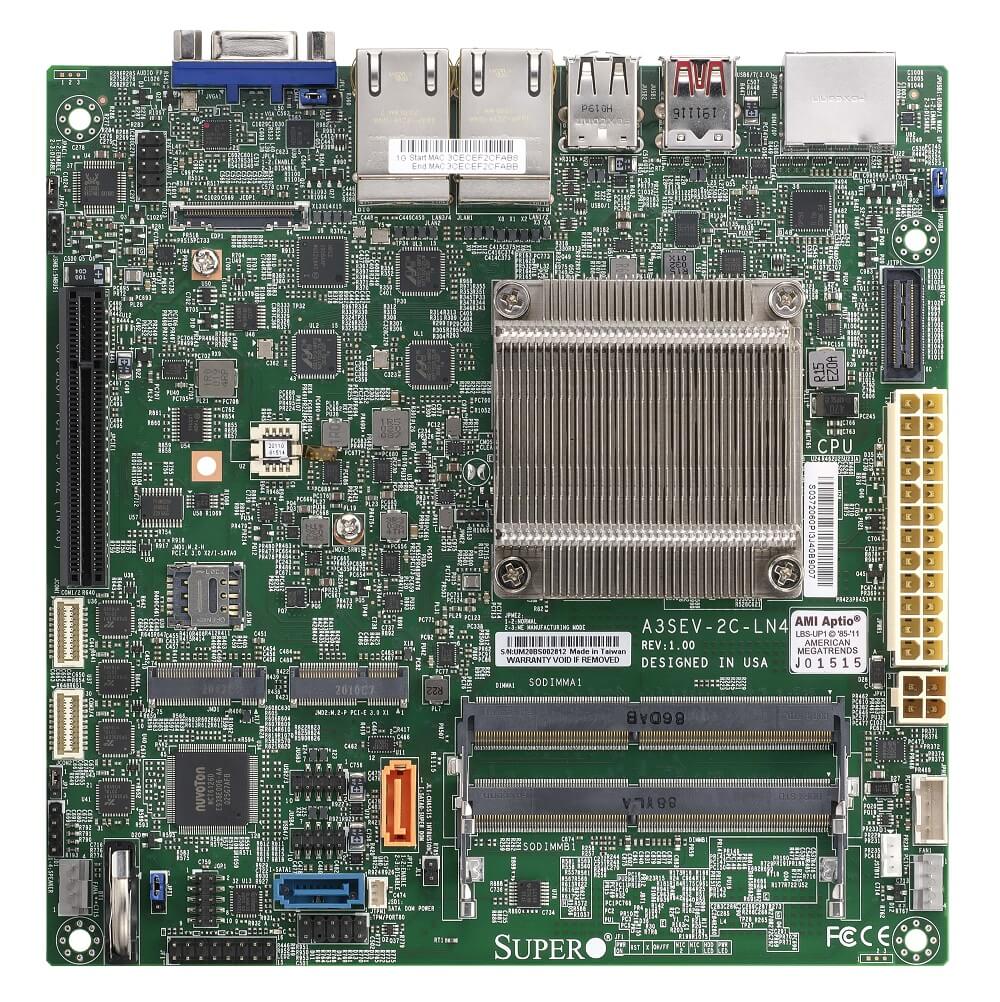

The Supermicro MBD-A3SEV-2C-LN4-B motherboard is designed to meet a wide range of computing needs. Equipped with an Intel® Atom® Processor x6211E and supporting up to 32GB of DDR4-3200 memory, this Mini-ITX motherboard provides robust performance for industrial and embedded applications. It includes one PCIe 3.0 X2 slot, multiple M.2 interfaces, and a variety of I/O ports such as HDMI, VGA, and DisplayPort, allowing for versatile and efficient system configurations. Additionally, with its comprehensive PC health monitoring and power management features, this motherboard ensures reliability and longevity in demanding environments.
