    Summary Description

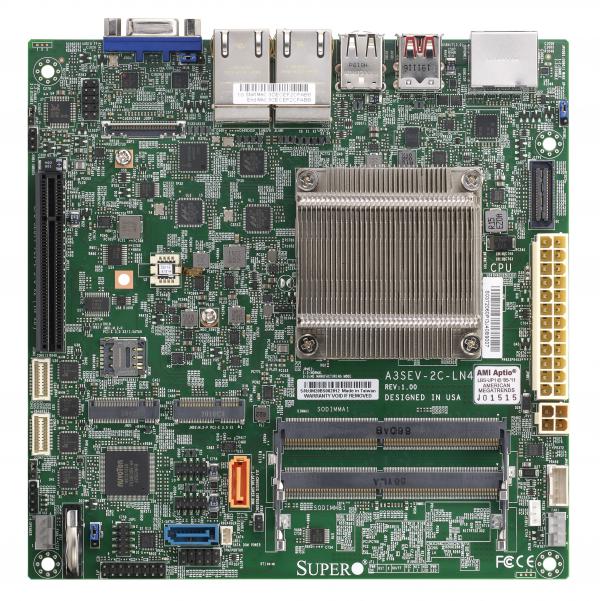

    The Supermicro MBD-A3SEV-4C-LN4 is a high-performance Mini-ITX motherboard, powered by the Intel® Atom® Processor x6425E. Designed for demanding applications, it supports up to 32GB of non-ECC DDR4-3200MHz RAM and offers robust connectivity and expansion options.

    Key Features

    • Intel® Atom® Processor x6425ESingle Socket FCBGA-1493 supported, CPU TDP supports Up to 12W TDP
    • Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-3200MHz, in 2 DIMM slots
    • 1 PCIe 3.0 X2 (in x8 slot)1 M.2 B-Key SATA/PCIe 3.0 x2/USB 3.0, 3042/22801 M.2 E-Key PCIe 3.0 x1/USB 2.0, 2230
    • Single LAN with Intel® Ethernet Controller I210ITONLY i210 support PXE3 LAN with 1GbE with Marvell® 88E1512
    • System on Chip
    • 1 DP (DisplayPort) port, 1 HDMI port, 1 VGA port or 1 eDP (Embedded DisplayPort) port, Supports 3 independent displays

    Key Applications

    • Embedded systems
    • Industrial automation
    • Digital signage
    • IoT devices

    Description

    The Supermicro MBD-A3SEV-4C-LN4 Mini-ITX motherboard is engineered for superior performance and reliability. Featuring the Intel® Atom® Processor x6425E, it supports up to 32GB of non-ECC DDR4-3200MHz memory in two DIMM slots. This motherboard provides a range of connectivity options, including single LAN with Intel® I210IT, three Gigabit LAN ports with Marvell® 88E1512, and extensive I/O capabilities such as USB 3.1 Gen2, SATA 3, DisplayPort, HDMI, VGA, and eDP. Additionally, it offers expansion options like PCIe 3.0 X2 and M.2 slots for enhanced flexibility.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A3SEV-4C-LN4
    Physical Stats
    Form Factor
    • Mini-ITX
    Dimension
    • 6.7" x 6.7" (17.02cm x 17.02cm)
    Processor
    CPU
    • Intel® Atom® Processor x6425E
    • Single Socket FCBGA-1493 supported, CPU TDP supports Up to 12W TDP
    Core
    • Up to 4 cores, 4 threads
    System Memory
    Memory Capacity
    • 2 DIMM slots
    • Up to 32GB Unbuffered non-ECC SODIMM, DDR4-3200MT/s
    Memory Type
    • 3200 MT/s non-ECC DDR4 SODIMM Unbuffered 3200MHzMT/s 260pin up to 32GB
    DIMM Sizes
    • 8GB, 16GB
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • System on Chip
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 Intel® HD Graphics port(s)
    Network Controllers
    • Single LAN with Intel® Ethernet Controller I210IT, ONLY i210 support PXE
    • 3 LAN with 1GbE with Marvell® 88E1512
    Input / Output
    SATA
    • 2 SATA3 (6Gbps) port(s)
    LAN
    • 4 RJ45 Gigabit Ethernet LAN ports
    USB
    • 2 USB 3.1 Gen2 port(s) (2 rear type A)
    • 6 USB 2.0 port(s) (4 via header; 2 rear)
    Video Output
    • 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 eDP (Embedded DisplayPort) port(s)
    Serial Port
    • 4 COM Port(s) (4 header)
    TPM
    • 1 TPM Header & Chip both
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 X2 (in x8 slot)
    M.2
    • M.2 Interface: 1 SATA/PCIe 3.0 x2/USB 3.0; 1 PCIe 3.0 x1/USB 2.0
    • Form Factor: 3042/2280, 2230
    • Key: B-Key, E-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 6.2 or later
    • UEFI 2.7
    • Plug and Play (PnP)
    • SMBIOS 3.3 or later
    • DMI 2.3
    • USB Keyboard support
    • RTC (Real Time Clock) Wakeup
    Management
    Software
    • SuperDoctor® 5, Watchdog
    Power Configurations
    • ACPI Power Management, +12V DC Power Input
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, System level control, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
    LED
    • Standby alert LED
    • CPU / System Overheat LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    FAN
    • Thermal control tachometer fan connectors, System level control, PWM fan speed control, Low noise fan speed control, Fan speed control, Dual Cooling Zone, Overheat LED indication
    Other Features
    • WOL, System level control, RoHS, CPU thermal trip support for processor protection, Chassis intrusion header, ATX Power connector, ACPI power management, 12V DC or ATX Power Source, 4-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range
    • -30°C - 70°C (-22°F - 158°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L157.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00058-0N1Standard I/O Shield for A2SAV with EMI Gasket
    Retail Package
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00058-0N1A3SEV standard 2U I/O Shield
    QRG
    MNL-2355-QRG1Motherboard Quick Reference Guide

    Optional Part List

    Part Number Quantity Description
    1U I/O Shield
    MCP-260-00068-0B11U I/O Shield for A3SEV with EMI Gasket in CS 505/504
    Audio Cable
    CBL-OTHR-09851Audio Cable 30cm
    COM Port Cable
    CBL-CDAT-06851COM Cable 30cm
    SATA Cables
    CBL-0044L157.5CM SATA FLAT S-S PBF
    SATA Power Cable
    CBL-PWEX-09821SATA Power Cable 25cm
    USB Cable
    CBL-CUSB-09831USB2.0 cable 20cm
