    Summary Description

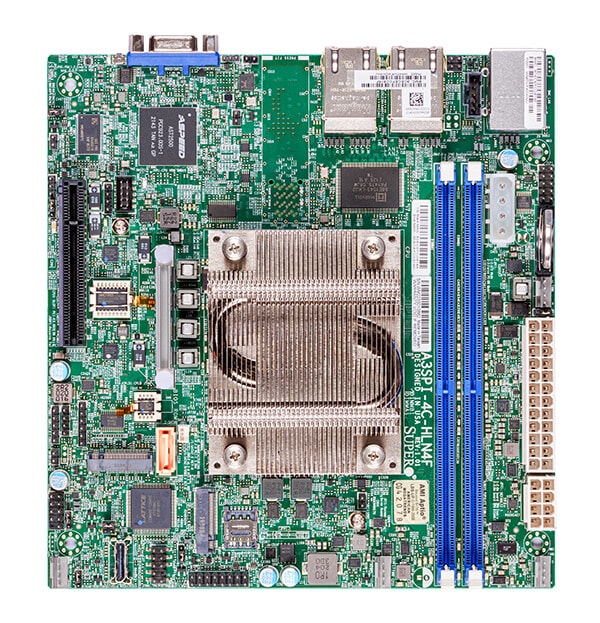

    The Supermicro MBD-A3SPI-8C-HLN4F-B motherboard showcases powerful performance with the Intel Atom Processor C5325, system on chip design, and up to 128GB ECC RDIMM DDR4-2933MHz memory support.

    Key Features

    • Intel Atom Processor C5325,Single Socket FCBGA-2106 supported,CPU TDP support 41W
    • System on Chip
    • Intel Quick Assist Technology
    • Up to 128GB ECC RDIMM DDR4-2933MHz, in 2 DIMM slots
    • Expansion slots:1 PCIe 3.0 x2 (in x8 slot)
    • 4 GbE LAN ports
    • Supports 12V DC power input
    • Up to 5 SATA3 ports from SoC (1 via SATA port, 4 via Oculink)
    • I/O: 1 VGA, 1 COM, TPM 2.0 onboard and header both
    • 2 USB 3.0 (Type-A on rear)2 USB 2.0 (via headers)
    • M.2 Interface:1x M.2 B-Key 3052 w/PCIe 3.0 & SATA3 & USB3.01x M.2 M-Key 2280 w/PCIe3.0

    Key Applications

    • Edge computing
    • Lightweight servers
    • IoT applications
    • Networking devices

    Description

    The Supermicro MBD-A3SPI-8C-HLN4F-B motherboard is equipped with the Intel Atom Processor C5325 in a single socket FCBGA-2106, supporting up to 41W TDP. This Mini-ITX form factor board offers excellent performance for various applications with its system on chip architecture, 4 GbE LAN ports, and multiple expansion and connectivity options, including PCIe, M.2, SATA3, and USB ports. Integrated with Intel Quick Assist Technology and advanced system management features, it is ideal for high-demand applications.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A3SPI-8C-HLN4F
    Physical Stats
    Form Factor
    • Mini-ITX
    Dimension
    • 6.7" x 7.1" (17.02cm x 18.3cm)
    Processor
    CPU
    • Intel® Atom® Processor C5325
    • Single Socket FCBGA-2106 supported, CPU TDP supports Up to 41W TDP
    Core
    • Up to 8 cores / 9MB Cache
    System Memory
    Memory Capacity
    • 2 DIMM slots
    • Up to 128GB ECC RDIMM, DDR4-2933MT/s
    Memory Type
    • 2933/2666/2400 MT/s ECC DDR4 RDIMM
    DIMM Sizes
    • 8GB, 16GB, 32GB, 64GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 1 SATA3 (6 Gbps) ports
    IPMI
    • ASPEED AST2500 BMC
    Graphics
    • 1 Aspeed AST2500 BMC port(s)
    Network Controllers
    • Quad LAN with Intel® C5000 SoC, 1GbE
    Input / Output
    LAN
    • 4 RJ45 Gigabit Ethernet LAN ports
    USB
    • 2 USB 2.0 port(s) (2 via header)
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 VGA D-Sub Connector port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    DOM
    • 1 SuperDOM(Disk on Module) ports
    TPM
    • 1 TPM Header & Chip both
    Others
    • 1 8-bit GPIO header
    • 1 Oculink
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x2 (in x8 slot)
    M.2
    • M.2 Interface: 1 PCIe 3.0 x4; 1 SATA/PCIe 3.0 x2/USB 3.0
    • Form Factor: 2280, 3052
    • Key: M-Key, B-Key
    System BIOS
    BIOS Type
    • 32MB AMI UEFI
    BIOS Features
    • UEFI 2.7
    • SMBIOS 3.0 or later
    • ACPI 6.0 or later
    Management
    Software
    • Redfish API,Supermicro Server Manager (SSM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
    System Management Software
    • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support, SuperDoctor® 5
    Power Configurations
    • ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection, Power-on mode for AC power recovery
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • System Lockdown
    PC Health Monitoring
    Voltage
    • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 4 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
    LED
    • UID/Remote UID
    Temperature
    • CPU thermal trip support
    FAN
    • 4x 4-pin fan headers (up to 4 fans)
    • Thermal control tachometer fan connectors, Fan speed control, Dual Cooling Zone, 4 fans with tachometer monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Support 3-pin fans (w/o speed control)
    Other Features
    • UID, RoHS, M.2 NGFF connector, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source, Intel® QuickAssist Technology
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Shield
    MCP-260-00173-0N1STD I/O Shield for A3SPI with EMI Gasket
    SATA cable
    CBL-0044L157.5CM SATA FLAT S-S PBF
    Retail Package
    I/O Shield
    MCP-260-00173-0N1STD I/O Shield for A3SPI with EMI Gasket
    OCuLink to SATA Cable
    CBL-SAST-09331SATA cable
    QRG
    MNL-2467-QRG1Motherboard Quick Reference Guide
    SATA cable
    CBL-0044L157.5CM SATA FLAT S-S PBF

    Optional Part List

    Part Number Quantity Description
    1U I/O Shield
    MCP-260-00175-0B-1U E300/E302/E200 I/O Shield for A3SPI with EMI Gasket
