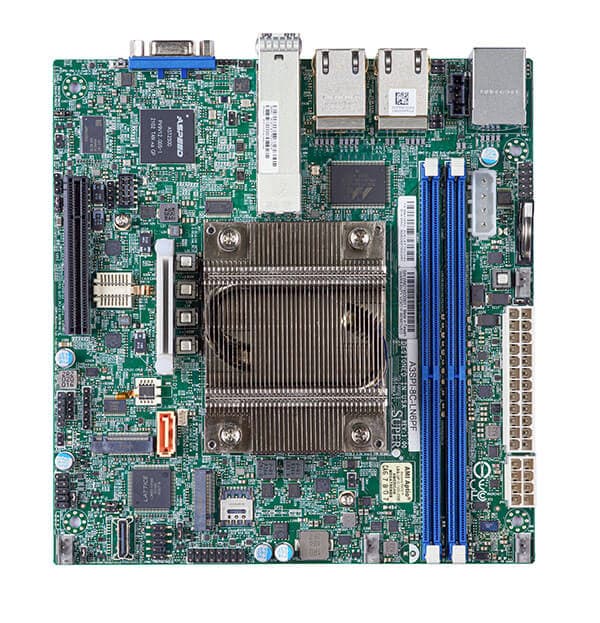

A3SPI-8C-LN6PF,Mini-ITX, Parker Ridge ATOM SoC,BGA,suppo

MBD-A3SPI-8C-LN6PF-O
https://safeconsulting.no/web/image/product.template/10129/image_1920?unique=dec9d2d

kr 9,128.31 9128.31 NOK kr 9,128.31

kr 9,128.31

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro MBD-A3SPI-8C-LN6PF-O is a high-performance Mini-ITX motherboard featuring the Intel® Atom® Processor C5325. Designed for versatility and efficient operations, it supports up to 128GB ECC RDIMM DDR4-2933MT/s across 2 DIMM slots, and includes 2 SFP+ ports and 4 GbE LAN ports.

    Key Features

    • System on Chip
    • Intel Atom Processor C5325,Single Socket FCBGA-2106 supported,CPU TDP support 41W
    • Intel Quick Assist Technology
    • Up to 128GB ECC RDIMM DDR4-2933MHz, in 2 DIMM slots
    • 2 SFP+ ports and 4 GbE LAN ports
    • Supports 12V DC power input
    • Up to 5 SATA3 ports from SoC (1 via SATA port, 4 via Oculink)
    • I/O: 1 VGA, 1 COM, TPM 2.0 onboard and header both
    • 2 USB 3.0 (Type-A on rear)2 USB 2.0 (via headers)
    • M.2 Interface:1x M.2 B-Key 3052 w/PCIe 3.0 & SATA3 & USB3.01x M.2 M-Key 2280 w/PCIe3.0
    • Expansion slots:1 PCIe 3.0 x2 (in x8 slot)

    Description

    The Supermicro MBD-A3SPI-8C-LN6PF-O motherboard offers a blend of performance and reliability, powered by the Intel® Atom® Processor C5325 and sporting a System on Chip (SoC) architecture. It supports up to 128GB of ECC RDIMM DDR4-2933MT/s memory in its two DIMM slots. With robust I/O options including 2 SFP+ ports, 4 GbE LAN ports, and multiple USB and VGA ports, this motherboard is ideal for complex networking and high-efficiency systems. Additional features such as TPM 2.0, support for 12V DC power input, 5 SATA3 ports from SoC, and comprehensive system management capabilities make it an excellent choice for a wide range of applications.

    Product Specifications

    Product SKUs
    MBD-A3SPI-8C-LN6PF
    Physical Stats
    Form FactorMini-ITX
    Dimension6.7" x 7.1" (17.02cm x 18.3cm)
    Processor
    CPUIntel® Atom® Processor C5325
    Single Socket FCBGA-2106 supported, CPU TDP supports Up to 41W TDP
    CoreUp to 8 cores / 9MB Cache
    System Memory
    Memory Capacity2 DIMM slots
    Up to 128GB ECC RDIMM, DDR4-2933MT/s
    Memory Type2933/2666/2400 MT/s ECC DDR4 RDIMM
    DIMM Sizes8GB, 16GB, 32GB, 64GB
    Memory Voltage1.2V
    Error DetectionCorrects single-bit errors
    Detects double-bit errors (using ECC memory)
    On-Board Devices
    ChipsetSystem on Chip
    SATASoC controller for 1 SATA3 (6 Gbps) ports
    IPMIASPEED AST2500 BMC
    Graphics1 Aspeed AST2500 BMC port(s)
    Network ControllersDual LAN with SoC
    Quad LAN with Intel® C5000 SoC, 1GbE
    Input / Output
    LAN4 RJ45 Gigabit Ethernet LAN ports
    2 SFP+
    USB2 USB 2.0 port(s) (2 via header)
    2 USB 3.0 port(s) (2 rear)
    Video Output1 VGA D-Sub Connector port(s)
    Serial Port1 COM Port(s) (1 header)
    DOM1 SuperDOM(Disk on Module) ports
    TPM1 TPM Header & Chip both
    Others1 8-bit GPIO header
    1 Oculink
    Expansion Slots
    PCIe1 PCIe 3.0 x2 (in x8 slot)
    M.2M.2 Interface: 1 PCIe 3.0 x4; 1 SATA/PCIe 3.0 x2/USB 3.0
    Form Factor: 2280, 3052
    Key: M-Key, B-Key
    System BIOS
    BIOS Type32MB AMI UEFI
    BIOS FeaturesUEFI 2.7
    SMBIOS 3.0 or later
    ACPI 6.0 or later
    Management
    SoftwareRedfish API,Supermicro Server Manager (SSM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0
    System Management SoftwareIPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support, SuperDoctor® 5
    Power ConfigurationsATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection, Power-on mode for AC power recovery
    PC Health Monitoring
    VoltageVBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 4 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
    LEDUID/Remote UID
    TemperatureCPU thermal trip support
    FAN4x 4-pin fan headers (up to 4 fans)
    Thermal control tachometer fan connectors, Fan speed control, Dual Cooling Zone, 4 fans with tachometer monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Support 3-pin fans (w/o speed control)
    Other FeaturesUID, RoHS, M.2 NGFF connector, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source, Intel® QuickAssist Technology
    Operating Environment
    Operating Temperature Range0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range-40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range10% - 85% (non-condensing)
    Non Operating Relative Humidity Range10% - 95% (non-condensing)

    Standard Part List

    Bulk Package
    1U I/O Shield
    Part NumberQuantityDescription
    MCP-260-00173-0N1STD I/O Shield for A3SPI with EMI Gasket
    SATA cable
    Part NumberQuantityDescription
    CBL-0044L157.5CM SATA FLAT S-S PBF
    Retail Package
    I/O Shield
    Part NumberQuantityDescription
    MCP-260-00173-0N1STD I/O Shield for A3SPI with EMI Gasket
    OCuLink to SATA Cable
    Part NumberQuantityDescription
    CBL-SAST-09331SATA Cables
    QRG
    Part NumberQuantityDescription
    MNL-2467-QRG1Motherboard Quick Reference Guide
    SATA cable
    Part NumberQuantityDescription
    CBL-0044L157.5CM SATA FLAT S-S PBF

    Optional Part List

    1U I/O Shield
    Part NumberQuantityDescription
    MCP-260-00175-0B-1U E300/E302/E200 I/O Shield for A3SPI with EMI Gasket
