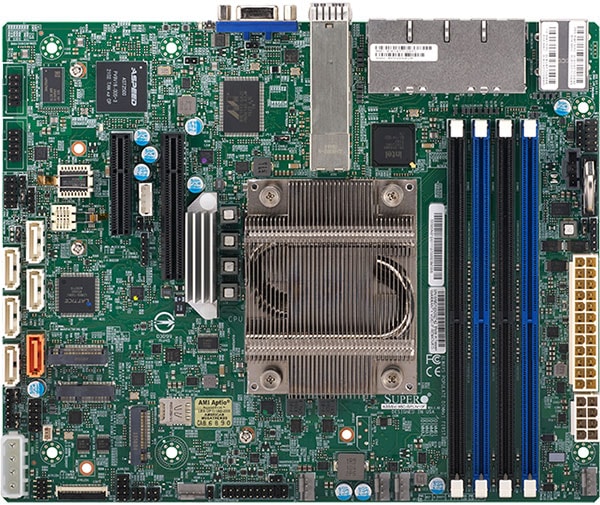

A3SSV-8C-SPLN10F Embedded Flex ATX form factor motherboa

MBD-A3SSV-8C-SPLN10F-O
https://safeconsulting.no/web/image/product.template/10131/image_1920?unique=4175d88

kr 10,439.32 10439.32 NOK kr 10,439.32

kr 10,439.32

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro MBD-A3SSV-8C-SPLN10F motherboard offers a robust platform featuring the Intel Atom P5322 processor with System on Chip, support for up to 256GB DDR4 RAM, and dual 25G SFP28 ports, designed for high-performance computing needs.

    Key Features

    • System on Chip
    • Intel Atom Processor P5322,Single Socket FCBGA-2106 supported,CPU TDP support 55 W
    • Intel Quick Assist Technology
    • Up to 256GB ECC RDIMM DDR4-2400MHz, in 4 DIMM slots
    • 2x 25G SFP28 ports and 8 GbE RJ45 LAN ports
    • Supports 12V DC power input
    • 2 USB 3.0 (Type-A on rear)2 USB 2.0 (via headers)
    • M.2 Interface:1x M.2 B-Key 2242/3042/2280 w/PCIe 2.0 x2/SATA 2.0/USB 3.01x M.2 M-Key 2242/2280/22110 w/PCIe 2.0 x4/SATA 2.0/USB 2.01x M.2 E-Key 2230 w/PCIe 2.0 x1/USB 2.0
    • Expansion slots:1 PCIe 3.0 x81 PCIe 3.0 x4
    • Up to 6 SATA 2.0 ports
    • I/O: 1 VGA, 2 COM, TPM 2.0 onboard and header both

    Key Applications

    • Enterprise computing
    • Networking
    • Data centers
    • Industrial automation
    • Telecommunications

    Description

    Supermicro's MBD-A3SSV-8C-SPLN10F motherboard is engineered with the Intel Atom P5322 processor and offers an integrated System on Chip design. This motherboard supports up to 256GB ECC RDIMM DDR4-2400MHz in 4 DIMM slots, ensuring high-speed memory performance. With 2x 25G SFP28 ports and 8 GbE RJ45 LAN ports, it provides ample connectivity options. The motherboard also supports 12V DC power input and features extensive I/O options including 2 USB 3.0 (Type-A), 2 USB 2.0, 1 VGA, and 2 COM ports. Expansion is facilitated through 1 PCIe 3.0 x8 and 1 PCIe 3.0 x4 slots. Ideal for enterprise applications requiring reliable performance and extensive features.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-A3SSV-8C-SPLN10F
    Physical Stats
    Form Factor
    • Flex ATX
    Dimension
    • 9" x 7.25" (22.86cm x 18.42cm)
    Processor
    CPU
    • Intel® Atom® Processor P5322
    • Single Socket FCBGA-2106 supported, CPU TDP supports Up to 55W TDP
    Core
    • Up to 8 cores / 9MB Cache
    Note
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 256GB ECC RDIMM, DDR4-2400MT/s
    Memory Type
    • 2400 MT/s ECC DDR4 RDIMM
    DIMM Sizes
    • 8GB, 16GB, 32GB, 64GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 6 SATA2 (3 Gbps) ports
    IPMI
    • ASPEED AST2500
    Graphics
    • 1 ASPEED AST2500 BMC port(s)
    Network Controllers
    • Dual LAN with SoC
    • Quad LAN with Intel® i350 Gigabit Ethernet Controller
    • Quad LAN with Marvell® Alaska® 88E1543
    Input / Output
    LAN
    • 2 SFP28 25 Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    • 8 RJ45 Gigabit Ethernet LAN ports
    USB
    • 2 USB 2.0 port(s) (2 via header)
    • 2 USB 3.1 Gen1 port(s) (2 rear type A)
    Video Output
    • 1 VGA D-Sub Connector port(s)
    Serial Port
    • 2 COM Port(s) (2 header)
    DOM
    • 1 SuperDOM(Disk on Module) power connector
    TPM
    • 1 TPM Header & Chip both
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x8,
    • 1 PCIe 3.0 x4
    M.2
    • M.2 Interface: 1 PCIe 2.0 x2/SATA 2.0/USB 3.0; 1 PCIe 2.0 x1/USB 2.0; 1 PCIe 2.0 x4/SATA 2.0/USB 2.0
    • Form Factor: 2242/3042/2280, 2230, 2242/2280/22110
    • Key: B-Key, E-Key, M-Key
    System BIOS
    BIOS Type
    • 32MB AMI UEFI
    BIOS Features
    • UEFI 2.7
    • SMBIOS 3.0 or later
    • ACPI 6.0 or later
    Management
    Software
    • Redfish API,Supermicro Server Manager (SSM),Supermicro Update Manager (SUM),Supermicro SuperDoctor® 5 (SD5),Super Diagnostics Offline (SDO),KVM with dedicated LAN,IPMI 2.0, SuperDoctor® 5, Intel® Node Manager,SSM
    System Management Software
    • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power Configurations
    • Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • System Lockdown
    PC Health Monitoring
    Voltage
    • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Memory temperature, Chassis intrusion header, 5 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
    LED
    • UID/Remote UID
    Temperature
    • Thermal Control for 5 Fan Connectors
    • CPU thermal trip support
    FAN
    • 5x 4-pin fan headers (up to 5 fans)
    • Fan speed control, Dual Cooling Zone, 5 fans with tachometer status monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Support 3-pin fans (w/o speed control)
    Other Features
    • UID, RoHS, Node Manager Support, M.2 NGFF connector, Dual Cooling Zones, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source, Intel® QuickAssist Technology
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Shield
    MCP-260-00133-0N1STANDARD I/O SHIELD FOR A2SDV-LN10PF
    SATA cable
    CBL-0044L257.5CM SATA FLAT S-S PBF
    Retail Package
    I/O Shield
    MCP-260-00133-0N1STANDARD I/O SHIELD FOR A2SDV-LN10PF
    Quick Installation Guide
    MNL-2258-QRG1A3SSV-8C/16C/24C-SPLN10F QUICK REFERENCE GUIDE
    SATA cable
    CBL-0044L657.5CM SATA FLAT S-S PBF
    SATA Cables
    CBL-0044L657.5CM SATA FLAT S-S PBF
