  2. [NR]C9, DT, uATX, ARL-S, UP, Core Ultra, LGA1851, B860, 125W

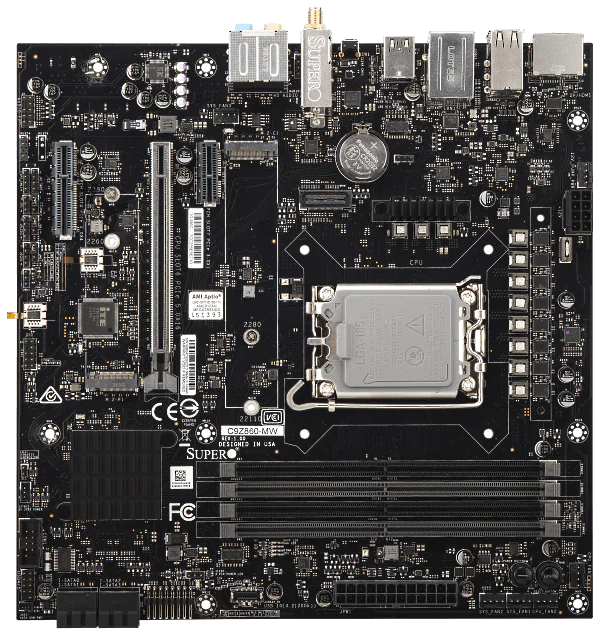

[NR]C9, DT, uATX, ARL-S, UP, Core Ultra, LGA1851, B860, 125W

SKU: MBD-C9B860-MW-B
Brand: Supermicro
https://safeconsulting.no/web/image/product.template/13541/image_1920?unique=95cb16f

kr 4,052.05 4052.05 NOK kr 4,052.05 VAT Excluded

kr 4,052.05 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    This Supermicro motherboard supports the latest Intel® Core™ Ultra processors, offering robust connectivity and expansion options including M.2 and PCIe slots. Features include onboard Wi-Fi 7 and Bluetooth® 5.4, perfect for high-performance applications.

    Key Features

    • Intel® Core™ Ultra 9/7/5 Processors, LGA 1851 (Intel® V1 Socket)TDP up to 125W
    • Intel® B860
    • Up to 192GB non-ECC UDIMM4 DDR5 5600+MT/s (OC)Supports Intel Extreme Memory Profile (XMP) memory module
    • 1 PCIe 5.0 x16 Slot1 PCIe 4.0 x4 Slot1 PCIe 4.0 x1 Slot
    • M.2 Interface:1 PCIe 5.0 x4; 1 PCIe 4.0 x4, RAID 0 &1M.2 Form Factor:2280/22110M.2 Key:M-Key
    • Single LAN with Intel® Ethernet I219-VWi-Fi 7 + Bluetooth® 5.4

    Key Applications

    • High-performance computing systems
    • AI and machine learning applications
    • Data analysis and processing
    • Digital content creation
    • Virtualization
    • Gaming development environments

    Description

    The Supermicro [NR]C9B860-MW Desktop MicroATX Motherboard supports Intel® Core™ Ultra processors in LGA1851 sockets with a TDP of up to 125W. It features up to 192GB non-ECC DDR5 memory, various PCIe and M.2 slots for expansion, and comprehensive connectivity options including USB 4.0 and Thunderbolt™ 4. Integrated Wi-Fi 7 and Bluetooth® 5.4 meet modern networking standards, making it ideal for high-performance computing environments.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-C9B860-MW
    Physical Stats
    Form Factor
    • microATX
    Dimension
    • 9.6" x 9.6" (24.38cm x 24.38cm)
    Processor
    CPU
    • Intel® Core™ Ultra 9/7/5 Processors
    • Single Socket LGA-1851 (Socket V1) supported, CPU TDP supports Up to 125W TDP
    Core
    • Up to 8+16 cores, 24 threads
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 192GB Unbuffered non-ECC UDIMM, DDR5-5600+MT/s
    Memory Type
    • 5600 MT/s None-ECC UDIMM
    DIMM Sizes
    • 8GB, 24GB, 16GB, 32GB, 48GB
    Memory Voltage
    • 1.1V
    On-Board Devices
    Chipset
    • Intel® B860
    SATA
    • Intel® B860 controller for 4 SATA 3 (6 Gbps) ports; RAID 0,1,5,10
    Audio
    • ALC 888S HD Audio
    Network Controllers
    • Single LAN with 1Gb Intel® Ethernet PHY I219-V
    • 5.76 Gbps Wi-Fi 7 + Bluetooth 5.4 * Wi-Fi frequency band and bandwidth regulatory may vary between countries. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
    Input / Output
    SATA
    • 4 SATA 3 port(s)
    USB
    • 4 USB 2.0 port(s) (2 via header; 2 rear Type-A)
    • 4 USB 3.2 Gen 1 port(s) (2 via header; 2 rear Type-A)
    • 1 USB 3.2 Gen 2x2 port(s) (1 Type C Header)
    • 1 USB 4.0 port(s) (1 rear Type-C Intel® Thunderbolt™ 4)
    Video Output
    • 1 DP (DisplayPort) port(s), 1 Intel® Thunderbolt™ 4 Type C (Shared w/ USB4) port(s), 1 HDMI port(s) Supports up to 8K@60Hz
    Serial Port
    • 1 COM Port(s) (1 header)
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 4.0 x4,
    • 1 PCIe 5.0 x16 (in x16 slot),
    • 1 PCIe 4.0 x1
    M.2
    • M.2 Interface: 1 PCIe 5.0 x4, RAID 0 & 1; 1 PCIe 4.0 x4, RAID 0 & 1
    • Form Factor: 2280/22110, 2280
    • Key: M-Key, M-Key
    System BIOS
    BIOS Type
    • 256MB SPI Flash with AMI BIOS
    BIOS Features
    • ACPI 6.0
    • Plug and Play (PnP)
    • BIOS rescue hot keys
    • SMBIOS 3.0 or later
    • Riser card auto-detection support
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, PCH temperature, CPU temperature, 3.3V standby, 1.05 (PCH), +5V, +3.3V, +12V, CPU thermal trip support, +1.8V CPU
    FAN
    • 7x 4-pin fan headers (up to 7 fans)
    • Fan speed control
    • 5 fans with tachometer status monitoring
    • Overheat LED indication
    Other Features
    • WOL, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, Voltage and Frequency Overclocking
    Operating Environment
    Operating Temperature Range
    • 0°C - 50°C (32°F - 122°F)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Shield
    MCP-260-00193-0B1I/O Shield
    SATA Cables
    CBL-0044L2SATA Cables
    Retail Package
    Antenna
    CBL-ANTD-0115SMA2WiFi 7 ANT,SMA Plug R.P,Freq 2.4-2.5/5.15-7.125GHz,RoHS
    I/O Shield
    MCP-260-00193-0B1I/O Shield
    Quick Reference Guide
    MNL-2707-QRG1Quick Reference Guide
    S-Connector
    JMP-0010L-0000-PRX1S-connector (Front Control Panel Connector/Adapter)
    SATA Cables
    CBL-0044L4SATA Cables
