  2. C9, DT, uATX, ARL-S, UP, Core Ultra, LGA1851, Z890, 125W

C9, DT, uATX, ARL-S, UP, Core Ultra, LGA1851, Z890, 125W

MBD-C9Z890-MW-O
https://safeconsulting.no/web/image/product.template/13542/image_1920?unique=ce410c7

kr 4,615.80 4615.8 NOK kr 4,615.80

kr 4,615.80

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

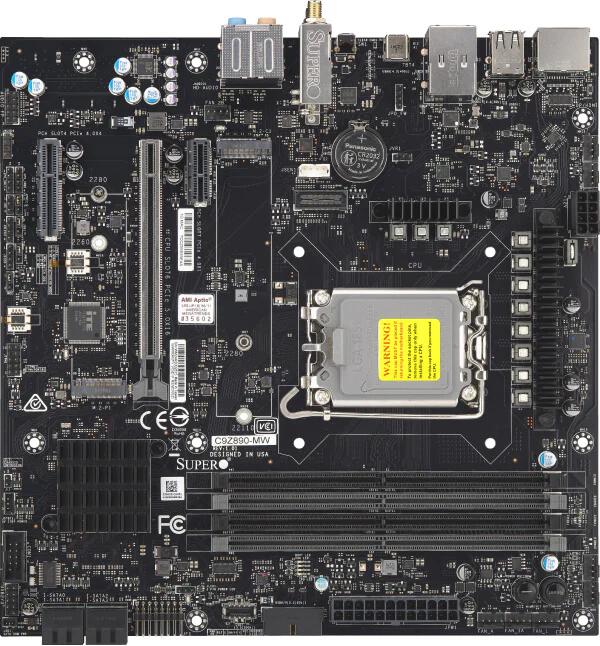

    The Supermicro C9Z890-MW motherboard is designed for performance with Intel® Core™ Ultra processors and up to 192GB DDR5-5600+ memory. It includes ample PCIe slots, Intel® Ethernet, advanced audio, and robust fan controls, ideal for high-demand systems.

    Key Features

    • Intel® Core™ Ultra 9/7/5 Processors, LGA 1851 (Intel® V1 Socket)TDP up to 125W
    • Intel® Z890
    • Up to 192GB non-ECC UDIMM4 DDR5 5600+MT/s (OC)Supports Intel Extreme Memory Profile (XMP) memory module
    • 1 PCIe 5.0 x16 Slot1 PCIe 4.0 x4 Slot1 PCIe 4.0 x1 Slot
    • M.2 Interface:1 PCIe 5.0 x4; 1 PCIe 4.0 x4, RAID 0 &1M.2 Form Factor:2280/22110M.2 Key:M-Key
    • Single LAN with Intel® Ethernet I219-VWi-Fi 7 + Bluetooth® 5.4

    Key Applications

    • Data Centers
    • Enterprise Servers
    • High-Performance Computing
    • Network Infrastructure
    • Virtualization
    • AI and Machine Learning Applications
    • Financial Services Computing
    • Scientific Research Computing
    • Storage Solutions
    • Cloud Computing

    Description

    The Supermicro C9Z890-MW motherboard supports Intel® Core™ Ultra processors with LGA 1851 socket. It features up to 192GB DDR5 memory, Intel® Z890 chipset, and multiple PCIe expansion slots. Additionally, it integrates Intel® Ethernet, Wi-Fi 7, and ALC 888S HD Audio for enhanced connectivity and multimedia performance. The board is equipped with AMI BIOS and extensive fan control for robust system management.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-C9Z890-MW
    Physical Stats
    Form Factor
    • microATX
    Dimension
    • 9.6" x 9.6" (24.38cm x 24.38cm)
    Processor
    CPU
    • Intel® Core™ Ultra 9/7/5 Processors
    • Single Socket LGA-1851 (Socket V1) supported, CPU TDP supports Up to 125W TDP
    Core
    • Up to 8+16 cores, 24 threads
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 192GB Unbuffered non-ECC UDIMM, DDR5-5600+MT/s
    Memory Type
    • 5600 MT/s None-ECC UDIMM
    DIMM Sizes
    • 8GB, 24GB, 16GB, 32GB, 48GB
    Memory Voltage
    • 1.1V
    On-Board Devices
    Chipset
    • Intel® Z890
    SATA
    • Intel® Z890 Express controller for 4 SATA 3 (6 Gbps) ports; RAID 0,1,5,10
    Audio
    • ALC 888S HD Audio
    Network Controllers
    • Single LAN with 1Gb Intel® Ethernet PHY I219-V
    • 5.76 Gbps Wi-Fi 7 + Bluetooth 5.4 * Wi-Fi frequency band and bandwidth regulatory may vary between countries. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
    Input / Output
    SATA
    • 4 SATA 3 port(s)
    USB
    • 4 USB 2.0 port(s) (2 via header; 2 rear Type-A)
    • 4 USB 3.2 Gen 1 port(s) (2 via header; 2 rear Type-A)
    • 1 USB 3.2 Gen 2x2 port(s) (1 Type C Header)
    • 1 USB 4.0 port(s) (1 rear Type-C Intel® Thunderbolt™ 4)
    Video Output
    • 1 DP (DisplayPort) port(s), 1 Intel® Thunderbolt™ 4 Type C (Shared w/ USB4) port(s), 1 HDMI port(s) Supports up to 8K@60Hz
    Serial Port
    • 1 COM Port(s) (1 header)
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 4.0 x4,
    • 1 PCIe 5.0 x16 (in x16 slot),
    • 1 PCIe 4.0 x1
    M.2
    • M.2 Interface: 1 PCIe 5.0 x4, RAID 0 & 1; 1 PCIe 4.0 x4, RAID 0 & 1
    • Form Factor: 2280/22110, 2280
    • Key: M-Key, M-Key
    System BIOS
    BIOS Type
    • 256MB SPI Flash with AMI BIOS
    BIOS Features
    • ACPI 6.0
    • Plug and Play (PnP)
    • BIOS rescue hot keys
    • SMBIOS 3.0 or later
    • Riser card auto-detection support
    PC Health Monitoring
    FAN
    • 7x 4-pin fan headers (up to 7 fans)
    • Fan speed control
    • 7 fans with tachometer status monitoring
    Other Features
    • WOL, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, Voltage and Frequency Overclocking
    Operating Environment
    Operating Temperature Range
    • 0°C - 50°C (32°F - 122°F)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Shield
    MCP-260-00193-0B1I/O Shield
    SATA Cables
    CBL-0044L2SATA Cables
    Retail Package
    Antenna
    CBL-ANTD-0115SMA2WiFi 7 ANT,SMA Plug R.P,Freq 2.4-2.5/5.15-7.125GHz,RoHS
    I/O Shield
    MCP-260-00193-0B1I/O Shield
    Quick Reference Guide
    MNL-2707-QRG1Quick Reference Guide
    S-Connector
    JMP-0010L-0000-PRX1S-connector (Front Control Panel Connector/Adapter)
    SATA Cables
    CBL-0044L4SATA Cables
