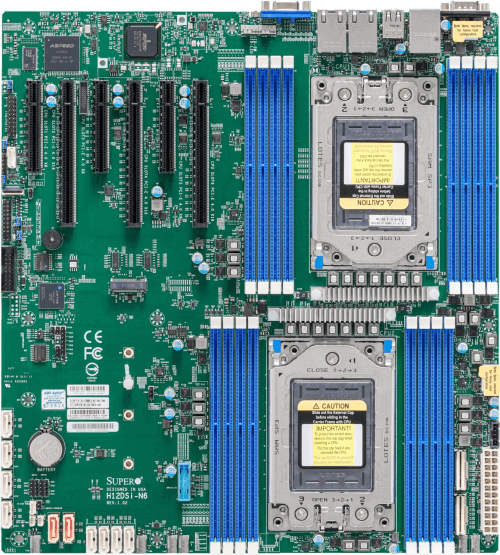

H12 AMD DP Rome/Milan platform with socket SP3CPU,SoC16

MBD-H12DSI-N6-O
https://safeconsulting.no/web/image/product.template/10239/image_1920?unique=a1dbe1e

kr 7,738.87 7738.87 NOK kr 7,738.87

kr 7,738.87

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-H12DSI-N6-O is a high-performance motherboard designed for demanding server applications, supporting dual AMD EPYC™ 7003/7002 processors, up to 4TB of ECC DDR4 3200MHz SDRAM in 16 DIMMs, multiple PCI-E 4.0 expansion slots, and a variety of storage and networking options, making it ideal for data centers and enterprise environments.

    Key Features

    • Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
    • 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs
    • Expansion slots: 3 PCI-E 4.0 x16 slots, 3 PCI-E 4.0 x8 slots M.2 Interface : 1 PCI-E 4.0 x4 M.2 Form Factor : 2280, 22110 M.2 Key : M-key
    • 10 SATA3, 2 SATADOM, 4 NVMe
    • Dual Gigabit LAN ports, 1 dedicated IPMI LAN Port
    • ASPEED AST2600 BMC graphics
    • 2 USB 2.0 ports (rear), 4 USB 3.0 ports (2 rear, 2 headers)
    • 8x 4-pin PWM Fans & Speed control

    Key Applications

    • Data centers
    • Enterprise servers
    • Virtualization
    • Cloud computing
    • High-performance computing

    Description

    Supermicro's MBD-H12DSI-N6-O motherboard provides a robust platform for server environments, featuring dual AMD EPYC™ 7003/7002 series processors with support for up to 64 cores per socket, and up to 4TB of registered ECC DDR4 3200MHz SDRAM across 16 DIMM slots. It includes 3 PCI-E 4.0 x16 slots, 3 PCI-E 4.0 x8 slots, and 1 PCI-E 4.0 x4 M.2 slot, offering versatile expansion options. The board supports a variety of storage interfaces including 10 SATA3, 2 SATADOM, and 4 NVMe. Networking capabilities are provided through dual Gigabit LAN ports and a dedicated IPMI LAN port. Additional features include ASPEED AST2600 BMC graphics, extensive I/O ports, and advanced remote management support via IPMI 2.0 and KVM over LAN.

    Product Specifications

    Specification Details
    Product SKUs
    MBD-H12DSi-N6
    • H12DSi-N6
    Physical Stats
    Form Factor
    • EATX
    Dimensions
    • 12" x 13.05" (30.5cm x 33.1cm)
    Processor/Chipset
    CPU
    • Dual AMD EPYC™ 7003/7002 Series Processors(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
    • Socket SP3
    Cores
    • Up to 64 Cores
    Chipset
    • System on Chip
    System Memory
    Memory Capacity
    • 16 DIMM slots
    • Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM
    • 8-channel memory bus
    • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
    Memory Type
    • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
    DIMM Sizes
    • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    SATA
    • SATA3 (6 Gbps)
    IPMI
    • Support for Intelligent Platform Management Interface v. 2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    • ASPEED AST2600 BMC
    Network Controllers
    • Dual LAN via Broadcom BCM5720L Gigabit Ethernet Controller
    VGA
    • ASPEED AST2600 BMC
    Input / Output
    SATA
    • 10 SATA3 (6 Gbps) ports
    LAN
    • 2x 1GbE LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 2.0 ports (rear)
    • 4 USB 3.0 ports (2 rear, 2 headers)
    VGA
    • 1 VGA port
    Others
    • 1 COM port (rear)
    • 2 SATA DOM power connectors
    • 4 PCI-E 4.0 NVMe x4 internal ports
    • TPM 2.0 header
    Expansion Slots
    PCI-Express
    • 3 PCI-E 4.0 x16 slots
    • 3 PCI-E 4.0 x8 slots
    M.2
    • Interface: 1 PCI-E 4.0 x4
    • Form Factor: 2280, 22110
    • Key: M-key
    Chassis ( Optimized for H12DSi-N6)
    2U
    • SCLA25TQC-R609LP
    • SCLA26AC12-R920LP1
    3U
    • SC835TQC-R1K03B
    Server(s) (with H12DSi-N6)
    Model(s)
    • AS -2024S-TR
    System BIOS
    BIOS Type
    • AMI 256Mb SPI Flash EEPROM
    BIOS Features
    • Plug and Play (PnP)
    • DMI 2.3
    • PCI 2.2
    • ACPI 6.2
    • USB Keyboard Support
    • SMBIOS 3.1.1
    Management
    Software
    • Super Doctor 5
    • Watch Dog
    • NMI
    • SUM
    • IPMI 2.0 , KVM with dedicated LAN
    Power Configurations
    • ACPI Power Management
    • Power-on mode control for AC power loss recovery
    PC Health Monitoring
    CPU
    • Monitors CPU Core Voltages, +1.5V, +1.8V, +12V, +5V, +5V standby
    • CPU switching voltage regulator
    • VBAT
    FAN
    • Up to 8 fan status tachometer monitoring
    • Up to 8x 4-pin fan headers
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU Thermal Trip Support
    • Thermal control for 8x Fan connectors
    • I²C Temperature Sensing Logic
    LED
    • CPU / System Overheat LED
    Other Features
    • Chassis Intrusion Detection
    • Chassis Intrusion Header
    Operating Environment / Compliance
    Environmental Specifications
    • Operating Temperature:10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)

    Optional Part List

    Part Number Quantity Description
    Part NumberQtyDescription
    TPM security module
    AOM-TPM-9655V-TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF;
