Workstation, Micro-ATX, AMD Ryzen(Zen4), LGA1718, 2 PCI

• AMD EPYC™ 4004 series and Ryzen™ 7000 Series Processorssingle socket LGA-1718 (socket AM5), up to 170W.
• Up to 192GB ECC/non-ECC Unbuffered DIMM, DDR5-5200MHz, in 4 DIMM slots.
• 2 PCIe 5.0 x16 (16/NA or 8/8), support up to 2 GPU cards(mechanical is up to 1 triple-width GPU card or 2 double-width GPU cards)1 PCIe 4.0 x4
• 2x 1Gbit LAN port(i210 AT); a dedicated Realtek 1Gbit LAN for IPMI.
• Micro-ATX form factor
• 1 USB 3.2 Gen2x2 ports (type C, 20Gb, rear); 5 USB 3.2 Gen2 ports(2 Type C, rear, support DP 1.4 Alt mode)
• 1 HDMI 2.0 port, 1 DP 1.4a port
• M.2 Interface:2 PCIe 5.0 x4 (RAID 0 & 1)M.2 Form Factor:2280/22110M.2 Key:M-Key

• Data centers
• High-performance computing
• Efficient network management
• Advanced server solutions

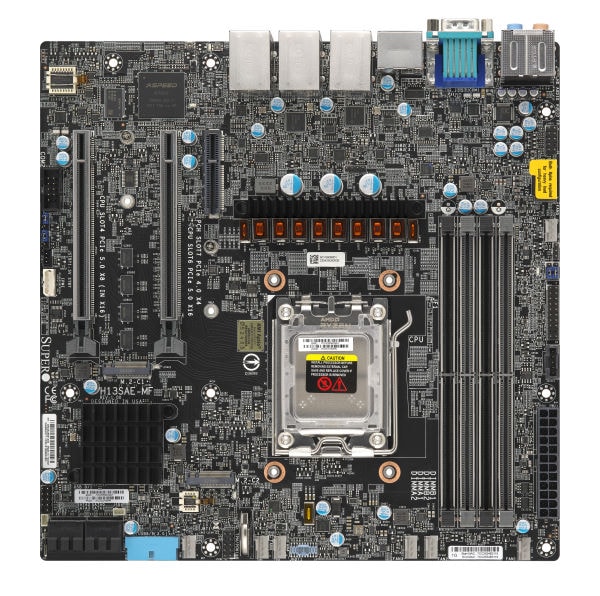

The Supermicro MBD-H13SAE-MF-O motherboard offers unparalleled performance and versatility with support for AMD EPYC 4004 and Ryzen 7000 series processors in a single socket LGA-1718 (socket AM5) configuration. With up to 192GB ECC/non-ECC unbuffered DIMM and DDR5-5200MHz in 4 DIMM slots, it ensures high-speed memory performance. The board includes 2 PCIe 5.0 x16 slots supporting up to 2 GPU cards and various other slots for expansion. Networking is bolstered by 2x 1Gbit LAN ports and a dedicated 1Gbit LAN for IPMI. The Micro-ATX form factor ensures compatibility with a wide range of cases, while advanced I/O options include USB 3.2 Gen2x2, HDMI 2.0, and DisplayPort 1.4a ports. Storage is enhanced with 2 PCIe 5.0 x4 M.2 interfaces supporting RAID 0 & 1. Comprehensive management tools ensure optimal performance and reliability.
