H13, Workstation, ATX, STP, UP, TR5, LGA 4844, 2x1G LAN

• AMD Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series ProcessorsSingle socket sTR5, LGA-4844, Up to 350W TDP, Overclocking supported
• AMD TRX50
• Up to 4TB of memory with speeds of 5200+MT/s (1DPC) with overclocking support**Memory addressing up to 1TB/channel is subject to AMD Infrastructure Roadmap for Socket sTR5 Processors
• M.2 Interface:2 PCIe 4.0 x4 (RAID 0, 1)M.2 Form Factor:2280/22110M.2 Key:M-Socket
• 2 PCIe 5.0 x16, support 2 triple/dual/single-width GPU cards2 PCIe 5.0 x8, open rear
• Dual 1Gb LAN with Broadcom BCM5720
• 4 SATA 3 (6Gb, RAID 0, 1, 10)1 MCIO connector (PCIe Gen4 x8) to support 2 U.2 ports via cable for NVMe 2.5" SSD drives
• 1 USB 3.2 Gen2x2 (20G, 1 rear Type-C)1 USB 3.2 Gen2x1 (10G, 1 header Type-C)4 USB 3.2 Gen2x1 (4 rear Type-A)1 USB 3.2 Gen1x1 (5Gb, 1 header Type-A 2 ports)1 USB 2.0 (1 header Type-A 2 ports)
• 1 Dedicated LAN for IPMI
• Overclocking supported on CPU and RDIMM

• High-performance computing
• Content creation
• Virtualization
• Database management
• Machine learning

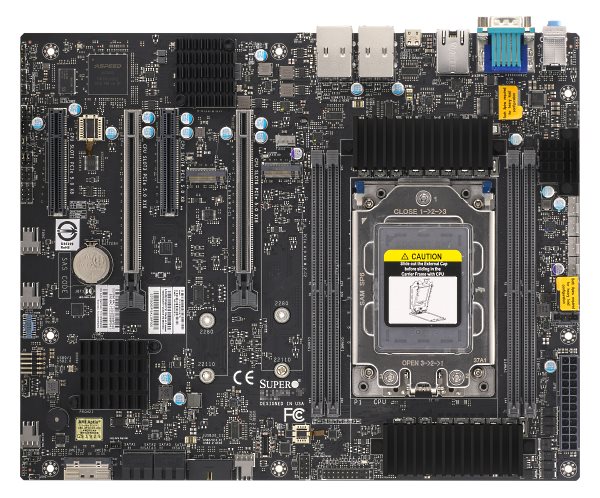

The Supermicro MBD-H13SRA-F-B motherboard is engineered to leverage the power of AMD Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors. With a single socket sTR5, LGA-4844, and up to 4TB of DDR5 memory that supports speeds of 5200+MT/s. The motherboard offers robust expansion capabilities with 2 PCIe 5.0 x16 slots, 2 PCIe 5.0 x8 slots, and 1 PCIe 4.0 x8 MCIO connector. It supports up to 4 SATA 3 ports and dual 1Gb LAN with Broadcom BCM5720 controllers. The comprehensive array of USB ports and on-board features, such as 4-pin fan headers and TPM support, ensure reliable system performance and security.
