Summary Description

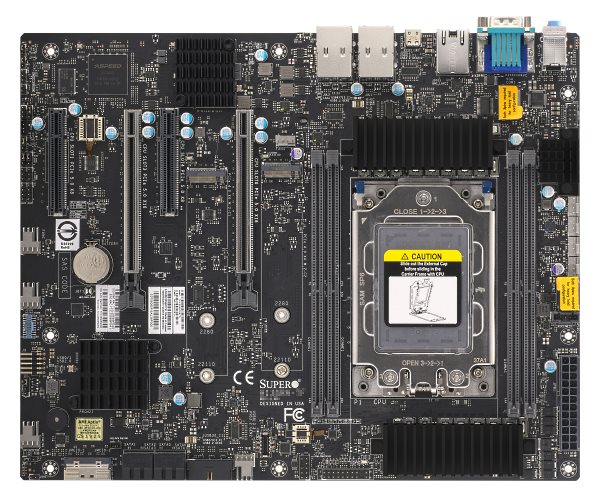

The Supermicro MBD-H13SRA-F motherboard supports AMD Ryzen Threadripper PRO 7000 WX-Series and Ryzen Threadripper 7000 Series Processors, featuring a single socket sTR5, up to 4TB memory capacity, multiple expansion slots, and robust onboard management tools. With support for dual LAN, numerous USB ports, and high-speed PCIe interfaces, it ensures high performance and versatility for advanced computing needs.

Key Features

AMD Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series ProcessorsSingle socket sTR5, LGA-4844, Up to 350W TDP, Overclocking supported
AMD TRX50
Up to 4TB of memory with speeds of 5200+MT/s (1DPC) with overclocking support**Memory addressing up to 1TB/channel is subject to AMD Infrastructure Roadmap for Socket sTR5 Processors
M.2 Interface:2 PCIe 4.0 x4 (RAID 0, 1)M.2 Form Factor:2280/22110M.2 Key:M-Socket
2 PCIe 5.0 x16, support 2 triple/dual/single-width GPU cards2 PCIe 5.0 x8, open rear
Dual 1Gb LAN with Broadcom BCM5720
4 SATA 3 (6Gb, RAID 0, 1, 10)1 MCIO connector (PCIe Gen4 x8) to support 2 U.2 ports via cable for NVMe 2.5" SSD drives
1 USB 3.2 Gen2x2 (20G, 1 rear Type-C)1 USB 3.2 Gen2x1 (10G, 1 header Type-C)4 USB 3.2 Gen2x1 (4 rear Type-A)1 USB 3.2 Gen1x1 (5Gb, 1 header Type-A 2 ports)1 USB 2.0 (1 header Type-A 2 ports)
1 Dedicated LAN for IPMI
Overclocking supported on CPU and RDIMM

Key Applications

High-performance workstations
Advanced computing platforms
Overclocked server environments
Extensive data processing

Description

The Supermicro MBD-H13SRA-F is an ATX form factor motherboard designed to support the latest AMD Ryzen Threadripper PRO 7000 WX-Series and Ryzen Threadripper 7000 Series Processors. Equipped with advanced features such as up to 4TB ECC Registered RDIMM memory, multiple PCIe 5.0 and 4.0 slots, dual LAN ports, USB 3.2 support, and IPMI for remote management. The motherboard offers excellent expandability with its M.2 slots, SATA ports with RAID support, and robust security features like TPM 2.0. It's built to handle high-performance workloads with support for overclocking and comprehensive system health monitoring.

Product Specifications

Specification	Details
Product SKUs
SKUs	MBD-H13SRA-F
Physical Stats
Form Factor	ATX
Dimension	12" x 9.6" (30.48cm x 24.384cm)
Processor
CPU	AMD Ryzen™ Threadripper™ PRO 7000 WX-Series, AMD Ryzen™ Threadripper™ 7000 Series Single Socket Socket sTR5 (LGA-4844) supported, CPU TDP supports Up to 350W TDP
Core	Up to 96 cores, 192 threads
System Memory
Memory Capacity	4 DIMM slots Up to 4TB ECC Registered RDIMM/3DS RDIMM, DDR5-5200MT/s Memory addressing up to 1TB/channel is subject to AMD Infrastructure Roadmap for Socket sTR5 Processors
Memory Type	5200 MT/s ECC DDR5 RDIMM/3DS RDIMM
DIMM Sizes	RDIMM/3DS RDIMM: 16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB, 512GB, 1024GB
Memory Voltage	1.1V
On-Board Devices
Chipset	TRX50
SATA	4 SATA3 ports; RAID 0,1,10
Audio	ALC 888S HD Audio 5.1 Channel
Network Controllers	Dual LAN with 1Gb Broadcom BCM5720 Single LAN with ASPEED AST2600, Dedicated LAN for IPMI
Input / Output
USB	5 USB 3.2 Gen2x1 port(s) (1 header type C; 4 rear type A) 1 USB 3.2 Gen2x2 port(s) (1 rear type C) 2 USB 3.2 Gen1x1 port(s) (2 via header) 2 USB 2 port(s) (2 via header)
Video Output	1 VGA port(s)
Serial Port	1 COM Port(s) (1 COM rear)
TPM	1 TPM Header
Expansion Slots
PCIe	2 PCIe 5.0 x8, Open rear, 2 PCIe 5.0 x16, metal armor protection, support 2 triple/dual/single-width GPU cards, 1 PCIe 4.0 x8, MCIO connector
M.2	M.2 Interface: 2 PCIe 4.0 x4, RAID 0, 1 Form Factor: 2280/22110 Key: M-Key
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
BIOS Features	ACPI 6.5 SMBIOS 3.6 or later UEFI 2.9 RTC (Real Time Clock) Wakeup
Management
Software	Redfish API , Supermicro Server Manager (SSM) , Supermicro Update Manager (SUM) , Supermicro SuperDoctor® 5 (SD5) , Super Diagnostics Offline (SDO) , KVM with dedicated LAN , IPMI 2.0
Power Configurations	Power-on mode for AC power recovery, ACPI Power Management, Wake-On-LAN, S4/S5
Security
Hardware	Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage	System temperature, PCH temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, Vmem, GPU temperature, NvMe temperature, Vcore, SAS HDD temperature
FAN	7x 4-pin fan headers (up to 7 fans) Fan speed control, CPU/System Overheat LED, Fan failed LED, UID/remote UID, HDD activity LED, LAN activity LED, CPU/Suspend-state indicator LED, 2 4-pin fan headers for CPU liquid cooling pump
Other Features	RoHS Chassis intrusion detection Power supply monitoring
Operating Environment
Operating Temperature Range	0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range	-20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range	10% - 85%
Non Operating Relative Humidity Range	10% - 95%

Standard Part List

Part Number	Quantity	Description
Bulk Package
I/O Shield
MCP-260-00189-0B	1	-
SATA cable
CBL-0044L	2	-
Retail Package
I/O Shield
MCP-260-00189-0B	1	-
Quick Reference Guide
MNL-2640-QRG	1	-
SATA cable
CBL-0044L	4	-

Optional Part List

Part Number	Quantity	Description
MCIO Cable
MCIO-1240U2Y-E	1	MCIO x8 to 2x SFF-8639/U.2+Pwr,40cm,G5,RoHS
TPM security module (optional, not included)
AOM-TPM-9672V	1	SPI capable TPM 2.0 with Infineon 9672 controller with vertical form factor
AOM-TPM-9672H	1	SPI capable TPM 2.0 with Infineon 9672 controller with horizontal form factor
