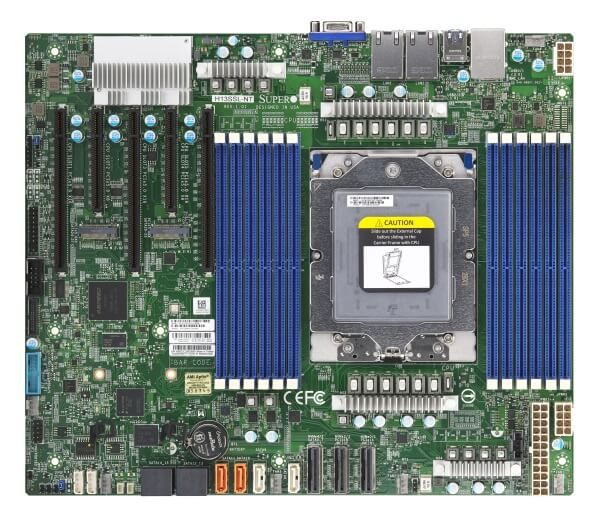

H13 AMD EPYC UP platform with socket SP5 CPU, SoC, 12x

MBD-H13SSL-NT-O
https://safeconsulting.no/web/image/product.template/10233/image_1920?unique=a1dbe1e

kr 7,954.90 7954.900000000001 NOK kr 7,954.90

kr 7,954.90

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-H13SSL-NT-O is a high-performance motherboard designed to support AMD EPYC™ 9004 series Processors. It offers advanced features including up to 3TB DDR5-4800 Memory, multiple PCIe 5.0 slots, and dual 10GBase-T LAN ports, making it ideal for demanding server and data center environments.

    Key Features

    • AMD EPYC™ 9004 series Processors
    • System on Chip
    • Up to 3TB 3DS ECC RDIMM, DDR5-4800MHz in 12 DIMM slots
    • 3 PCIe 5.0 x16 2 PCIe 5.0 x8
    • 2x 10GBase-T LAN Ports via Broadcom BCM57416
    • Up to 6 USB 3.0 ports(4 rear + 2 via header)
    • 8 SATA3
    • ASPEED AST2600 BMC graphics
    • 6 PWM 4-pin Fans with tachometer status monitoring
    • M.2 Interface:2 PCIe 4.0 x4M.2 Form Factor:2280, 22110

    Key Applications

    • Cloud Computing
    • Data Analytics
    • Virtualization
    • AI and Machine Learning
    • High-performance Computing

    Description

    The Supermicro MBD-H13SSL-NT-O motherboard is engineered to deliver superior performance and expandability. It supports the latest AMD EPYC™ 9004 series Processors, featuring up to 128 cores and 256 threads. The motherboard includes 12 DIMM slots supporting up to 3TB of DDR5-4800 ECC RDIMM memory. With a robust set of features including 3 PCIe 5.0 x16 slots, 2 PCIe 5.0 x8 slots, dual Broadcom BCM57416 10GBase-T LAN ports, and advanced system management tools, it is tailored for high-demand applications such as cloud computing, data analytics, and virtualization.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-H13SSL-NT
    Physical Stats
    Form Factor
    • ATX
    Dimension
    • 12" x 10.1" (30.48cm x 25.65cm)
    Processor
    CPU
    • AMD EPYC™ 9004 series Processors
    • Single Socket SP5 supported, CPU TDP supports Up to 400W TDP
    Core
    • Up to 128 cores, 256 threads
    System Memory
    Memory Capacity
    • 12 DIMM slots
    • Up to 3TB 3DS ECC Registered RDIMM, DDR5-4800MT/s
    Memory Type
    • 4800 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MHz (1DPC)
    DIMM Sizes
    • 16GB, 24GB, 32GB, 40GB, 48GB, 64GB, 80GB, 96GB, 128GB, 192GB, 256GB
    Memory Voltage
    • 1.1V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    Network Controllers
    • Dual LAN with Broadcom BCM57416 10GBase-T
    Input / Output
    SATA
    • 8 SATA3 (6Gbps) port(s)
    LAN
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 6 USB 3.0 port(s) (4 USB; 2 via header)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    TPM
    • 1 TPM Header
    Others
    • 1 MCIO (PCIe 5.0 x8/SATA3) Port(s)
    • 2 MCIO (PCIe 5.0 x8) Port(s)
    Expansion Slots
    PCIe
    • 3 PCIe 5.0 x16 (in x16 slot),
    • 2 PCIe 5.0 x8
    M.2
    • M.2 Interface: 2 SATA/PCIe 4.0 x4
    • Form Factor: 2280/22110
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    BIOS Features
    • ACPI 6.4
    • SMBIOS 3.5 or later
    • UEFI 2.8
    • Plug and Play (PnP)
    • USB Keyboard support
    Management
    Software
    • Redfish API , Supermicro Server Manager (SSM) , Supermicro Update Manager (SUM) , Supermicro SuperDoctor® 5 (SD5) , Super Diagnostics Offline (SDO) , KVM with dedicated LAN , IPMI 2.0
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    PC Health Monitoring
    Voltage
    • VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby
    LED
    • UID/Remote UID
    • BMC/IPMI Heartbeat LED
    Other Features
    • RoT
    FAN
    • 6x 4-pin fan headers (up to 6 fans)
    Operating Environment
    Operating Temperature Range
    • 10°C - 35°C (50°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Shield
    MCP-260-00073-0N1Standard I/O Shield
    SATA Cables
    CBL-0044L657.5CM SATA FLAT S-S PBF
    Retail Package
    I/O Shield
    MCP-260-00073-0N1STD I/O SHIELD
    SATA cable
    CBL-0044L657.5 cm SATA FLAT S-S PBF

    Optional Part List

    Part Number Quantity Description
    TPM security module (optional, not included)
    AOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
