    Summary Description

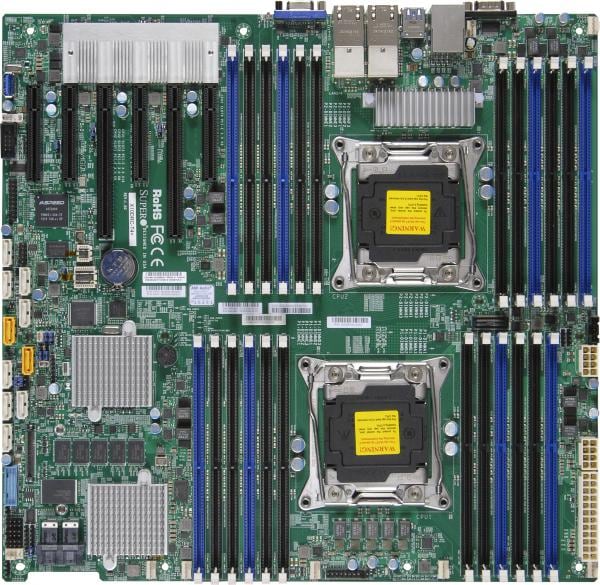

    The Supermicro MBD-X10DRC-LN4+ is a robust motherboard offering dual socket R3 (LGA 2011) support for Intel® Xeon® E5-2600 v3/v4 processors, along with extensive expansion capabilities, advanced memory support, and multiple high-speed I/O options.

    Key Features

    • Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; UPI up to 9.6GT/s
    • Intel® C612 chipset
    • Up to 3TB† ECC 3DS LRDIMM, up to DDR4- 2400†MHz ; 24x DIMM slots
    • 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, and 1 PCI-E 2.0 x4 (in x8) slot
    • Quad LAN w/ Intel® i350 GbE
    • 10 SATA3 (6Gbps) ports w/ Intel® C612 controller; RAID 0, 1, 5, 10
    • 8 SAS3 (12Gbps) ports w/ Broadcom® 3108 controller; RAID 0, 1, 5, 6, 10, 50, 60 SuperCap option support
    • Integrated IPMI 2.0 and KVM with Dedicated LAN
    • 5 USB 3.0 (2 rear, 2 front panel, 1 Type-A) 4 USB 2.0 (2 rear, 2 front panel)

    Key Applications

    • Data centers
    • Cloud computing
    • Enterprise servers
    • Virtualization
    • Big data analytics
    • High performance computing

    Description

    The Supermicro MBD-X10DRC-LN4+ motherboard provides unparalleled performance for data-intensive applications. It supports up to 3TB ECC 3DS LRDIMM, offers 24 DIMM slots, and includes multiple PCIe 3.0 and 2.0 slots for high-speed connectivity. With an Intel® C612 chipset, the motherboard also supports advanced RAID configurations and features integrated IPMI 2.0 for remote management.

    Product Specifications

    Specification Details
    Product SKUs- Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs.
    MBD-X10DRC-LN4+
    • X10DRC-LN4+
    Physical Stats
    Form Factor
    • E.E. ATX
    Dimensions
    • 13.68" x 13" (34.75cm x 33.02cm)
    Processor/Cache
    CPU
    • Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
    • Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W
    Cores / Cache
    • Up to 22 cores † / Up to 55MB† cache
    Note
    • ** Motherboard supports this maximum TDP. Please verify your system can thermally support.
    System Memory
    Memory Capacity
    • Up to 768GB Registered ECC RDIMM, DDR4-2400MHz; Up to 3TB 3DS ECC LRDIMM, in 24 DIMM slots
    Memory Type
    • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
    DIMM Sizes
    • RDIMM: 4GB, 8GB, 16GB, 32GB
    • LRDIMM: 32GB, 64GB
    • 3DS LRDIMM: 128GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    On-Board Devices
    Chipset
    • Intel® C612
    SATA
    • Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    SAS
    • Broadcom 3108 SAS3 (12Gbps) controller; HW RAID 0, 1, 5, 6, 10, 50, 602GB Cache with optional SuperCap backup moduleSupports up to 16 devices as default, more HDD devices support is also available as an option *For special SKU, please contact your Supermicro Sales.
    AHCI SATA
    • SATA3 (6Gbps); RAID 0, 1, 5, 10
    SCU SATA
    • SATA3 (6Gbps); RAID 0, 1, 5, 10
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    • ASPEED AST2400 BMC
    Network Controllers
    • Quad LAN with Intel® i350 Gigabit Ethernet ControllerSingle LAN with Virtual Machine Device Queues reduce I/O overheadSingle LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 outputSingle LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)
    Graphics
    • Aspeed AST2400 BMC
    Input / Output
    SATA
    • 10 SATA3 (6Gbps) port
    LAN
    • 4 RJ45 Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 2.0 ports (2 rear Type A))
    • 3 USB 3.0 ports (2 rear + 1 Type A)
    Video Output
    • 1 VGA port
    Serial Port / Header
    • 2 COM Ports (1 rear, 1 header)2 fast UART 16550 serial
    TPM
    • 1 TPM Header
    Expansion Slots
    PCI-E
    • 2 PCI-E 3.0 x16,
    • 3 PCI-E 3.0 x8
    • 1 PCI-E 2.0 x4 (in x8 slot)
    System BIOS
    BIOS Type
    • 128Mb SPI Flash EEPROM with AMI BIOS
    BIOS Features
    • Plug and Play (PnP)
    • PCI 2.3
    • ACPI 1.0 / 2.0 / 3.0 / 4.0
    • USB Keyboard support
    • SMBIOS 2.7.1
    • UEFI 2.3.1
    Management
    Software
    • Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SuperDoctor® 5, Watchdog
    Power Configurations
    • ACPI Power Management
    • Power-on mode for AC power recovery
    PC Health Monitoring
    Voltage
    • +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 Phase-switching voltage regulator, Chassis intrusion header, Memory Voltages
    FAN
    • 7x 4-pin fan headers (up to 7 fans), 8x fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control
    Temperature
    • Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI
    LED
    • CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID
    Other Features
    • Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC
    Operating Environment
    Operating Temperature Range
    • 10°C - 35°C (50°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    Motherboard
    MBD-X10DRC-LN4+1X10DRC-LN4+ Motherboard
    X10DRC-LN4+-B
    MBD-X10DRC-LN4+-B1X10DRC-LN4+ Motherboard
    I/O Shield
    MCP-260-00042-0N1STD I/O shield for X10 socket R server MB with Gasket
    I/O Cables
    CBL-0044L2SATA CABLE 61CM FLAT S-S PBF
    Retail Package
    Motherboard
    MBD-X10DRC-LN4+1X10DRC-LN4+ Motherboard
    X10DRC-LN4+-P
    MBD-X10DRC-LN4+-P1X10DRC-LN4+ Motherboard
    I/O Shield
    MCP-260-00042-0N1STD I/O shield for X10 socket R server MB with Gasket
    I/O Cables
    CBL-0044L2SATA CABLE 61CM FLAT S-S PBF
    CBL-SAST-05322Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s
    Quick Reference Guide
    MNL-1560-QRG1Quick Reference Guide

    Optional Part List

    Part Number Quantity Description
    Heat Sink(optional, not included)
    --http://www.supermicro.com/manuals/brochure/x10_HeatSink_Compatibility.pdf
    TPM security module(optional, not included)
    AOM-TPM-9655V AOM-TPM-9655H-TPM module with Infineon 9655 Vertical or Horizontal depends on the server
    AOM-TPM-9655V-S AOM-TPM-9655H-S-TPM 1.2 module with Infineon 9655, RoHS/REACH, PBF; Vertical or Horiztonal depends on the server, provision for TXT
    AOM-TPM-9665V AOM-TPM-9665H-TPM 2.0 module with Infineon 9665, RoHS/REACH, PBF; Vertical or Horizontal depends on the server
    AOM-TPM-9665V-S AOM-TPM-9655H-S-TPM 2.0 module with Infineon 9665, RoHS/REACH, PBF; Vertical or Horizontal depends on the server, provisioned for TXT
    SuperDOM
    --Supermicro SATA DOM Solutions http://www.supermicro.com/products/nfo/SATADOM.cfm
    SuperCap TFM module
    BTR-TFM8G-Broadcom®CVM021SuperCap TFM module
    I/O Cables
    CBL-SAST-05322Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s,HF
