    Summary Description

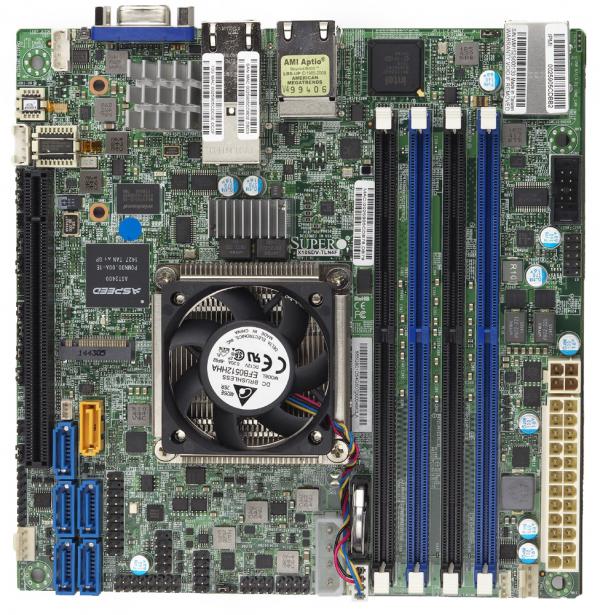

    The Supermicro MBD-X10SDV-6C+-TLN4F-B is a Mini-ITX motherboard that offers exceptional performance with the Intel® Xeon® processor D-1528. This board supports up to 128GB ECC RDIMM DDR4 memory, has multiple expansion slots including PCI-E 3.0 x16 and M.2 PCI-E 3.0 x4, and features robust network and storage connectivity.

    Key Features

    • Intel® Xeon® processor D-1528, Single socket FCBGA 1667; 6-Core, 12 Threads, 35W
    • System on Chip
    • Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
    • 1 PCI-E 3.0 x16, M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/2280
    • 2 10GbE and 2 GbE LAN ports
    • 6 SATA3 (6Gbps) ports via SoC
    • 2 USB 3.0 ports (rear) 4 USB 2.0 ports (via headers)
    • 1 SuperDOM, 1 COM, TPM header, GPIO and SMbus headers
    • 12V DC Input and ATX Power Source

    Key Applications

    • Enterprise servers
    • Embedded systems
    • Network appliances
    • Storage systems

    Description

    The Supermicro MBD-X10SDV-6C+-TLN4F-B motherboard is designed for high-performance server applications, integrating the Intel® Xeon® processor D-1528 with a 6-core, 12-thread configuration and 9MB cache. The board supports up to 128GB of ECC RDIMM DDR4-2133MHz or up to 64GB of non-ECC UDIMM DDR4-2133MHz across four DIMM sockets. Key connectivity options include 1 PCI-E 3.0 x16 slot, 1 M.2 PCI-E 3.0 x4 (with SATA support), and four LAN ports (2 10GbE and 2 GbE). The X10SDV-6C+-TLN4F also offers extensive I/O options and comprehensive system management support, making it ideal for various types of server and embedded applications.

    Product Specifications

    Specification Details
    Product SKUs
    MBD-X10SDV-6C+-TLN4F
    • X10SDV-6C+-TLN4F
    Physical Stats
    Form Factor
    • Mini-ITX
    Dimensions
    • 6.7" x 6.7" (17.02cm x 17.02cm)
    Processor/Cache
    CPU
    • Intel® Xeon® Processor D-1528.
    • Single Socket FCBGA1667 supported, CPU TDP support 35W
    Cores / Cache
    • 6 cores, 12 threads / 9MB cache
    System Memory
    Memory Capacity
    • Up to 128GB Registered ECC RDIMM, DDR4-2133MHz
    • Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots
    Memory Type
    • 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Network Controllers
    • Dual LAN with Intel® Ethernet Controller I350-AM2Dual LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 outputSoC Dual 10GbE ControllerSingle LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)
    Graphics
    • Aspeed AST2400 BMC
    Input / Output
    SATA
    • 6 SATA3 (6Gbps) port
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    • 2 RJ45 10GBase-T ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 4 USB 2.0 ports (4 headers, Type A))
    • 2 USB 3.0 ports (2 rear)
    Video Output
    • 1 VGA port
    Serial Port / Header
    • 1 COM Port (1 header)
    TPM
    • TPM Header
    Expansion Slots
    PCI-E
    • 1 PCI-E 3.0 x16
    M.2
    • 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280
    System BIOS
    BIOS Type
    • 128Mb SPI Flash with AMI BIOS
    BIOS Features
    • PCI 3.0
    • ACPI 5.0
    • USB Keyboard support
    • Hardware BIOS Virus protection
    • RTC (Real Time Clock) Wakeup
    • SMBIOS 2.8
    • UEFI 2.4
    Management
    Software
    • Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog
    Power Configurations
    • ACPI Power Management
    • CPU Fan auto-off in sleep mode
    • Power-on mode for AC power recovery
    PC Health Monitoring
    Voltage
    • +1.8V, +12V, +3.3V, +5V, 1.2V (VDIMM), 4 -fan status, Chassis intrusion header, Memory, Monitors for CPU Cores, Supports system management utility, System level control, System temperature
    FAN
    • 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Fan speed control, Low noise fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, Status monitoring for speed control, System level control, Thermal control tachometer fan connectors
    Temperature
    • Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
    LED
    • CPU / System Overheat LED
    Other Features
    • 12V DC or ATX Power Source, 4-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, Hyper-Speed Technology hardware acceleration, M.2 NGFF connector, Node Manager Support, RoHS, SDDC, System level control, UID, WOL
    Operating Environment
    Operating Temperature Range
    • 0°C ~ 60°C (32°F ~ 140°F)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    Motherboard
    MBD-X10SDV-6C+-TLN4F1X10SDV-6C+-TLN4F Motherboard
    I/O Cables
    CBL-0044L257.5CM SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00084-0N1STD I/O SHIELD

    Optional Part List

    Part Number Quantity Description
    1U I/O Shield
    MCP-260-00085-0B11U I/O Shield for X10SDV-F/TLN4F in CSE-510/505/504
    MCP-260-00079-0N11U I/O shield for X10SDV-F/TLN4F in SC813/SC512 chassis
