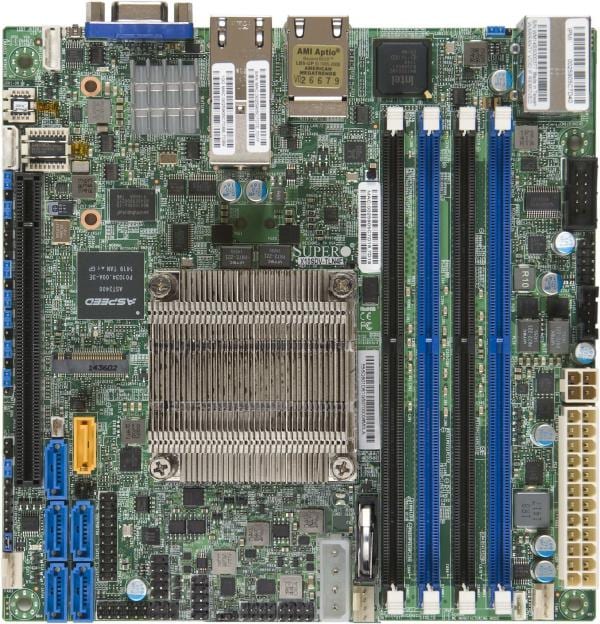

| MBD-X10SDV-6C-TLN4F | |
| Physical Stats |
| Form Factor | |
| Dimensions | - 6.7" x 6.7" (17.02cm x 17.02cm)
|
| Processor/Cache |
| CPU | - Intel® Xeon® Processor D-1528.
- Single Socket FCBGA1667 supported, CPU TDP support 35W
|
| Cores / Cache | - 6 cores, 12 threads / 9MB cache
|
| System Memory |
| Memory Capacity | - Up to 128GB Registered ECC RDIMM, DDR4-2133MHz
- Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots
|
| Memory Type | - 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
|
| DIMM Sizes | |
| Memory Voltage | |
| Error Detection | - Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| On-Board Devices |
| Chipset | |
| SATA | - SoC controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
|
| IPMI | - Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
|
| Network Controllers | - Dual LAN with Intel® Ethernet Controller I350-AM2Dual LAN with 10Gbase-TSingle LAN with Virtual Machine Device Queues reduce I/O overheadSingle LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 outputSingle LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)
|
| Graphics | |
| Input / Output |
| SATA | |
| LAN | - 2 RJ45 Gigabit Ethernet LAN ports
- 2 RJ45 10GBase-T ports
- 1 RJ45 Dedicated IPMI LAN port
|
| USB | - 4 USB 2.0 ports (4 headers, Type A))
- 2 USB 3.0 ports (2 rear)
|
| Video Output | |
| Serial Port / Header | |
| TPM | |
| Expansion Slots |
| PCI-E | |
| M.2 | - 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280
|
| System BIOS |
| BIOS Type | - 128Mb SPI Flash with AMI BIOS
|
| BIOS Features | - PCI 3.0
- ACPI 5.0
- USB Keyboard support
- Hardware BIOS Virus protection
- RTC (Real Time Clock) Wakeup
- SMBIOS 2.8
- UEFI 2.4
|
| Management |
| Software | - Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog
|
| System Management Software | |
| Power Configurations | - ACPI Power Management
- Control of power-on for recovery from AC power loss
- CPU thermal trip support for processor protection
|
| PC Health Monitoring |
| Voltage | - +1.8V, +12V, +3.3V, +5V, 1.2V (VDIMM), 4 -fan status, 4 fans with tachometer monitoring, Chassis intrusion header, Memory, Memory Voltages, Monitors for CPU Cores, Supports system management utility, System level control, System temperature
|
| FAN | - 4x 4-pin fan headers (up to 4 fans), Dual Cooling Zone, Fan speed control, Low noise fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, Status monitoring for on/off control, Status monitoring for speed control, System level control, Thermal control tachometer fan connectors
|
| Temperature | - Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
|
| LED | - CPU / System Overheat LED, UID/Remote UID
|
| Other Features | - 12V DC or ATX Power Source, 4-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, Hyper-Speed Technology hardware acceleration, M.2 NGFF connector, Node Manager Support, RoHS
|
| Operating Environment |
| Operating Temperature Range | - 0°C ~ 60°C (32°F ~ 140°F)
|
