Dual Processor Skylake DCO W/WIO Riser Capability-SINGLE

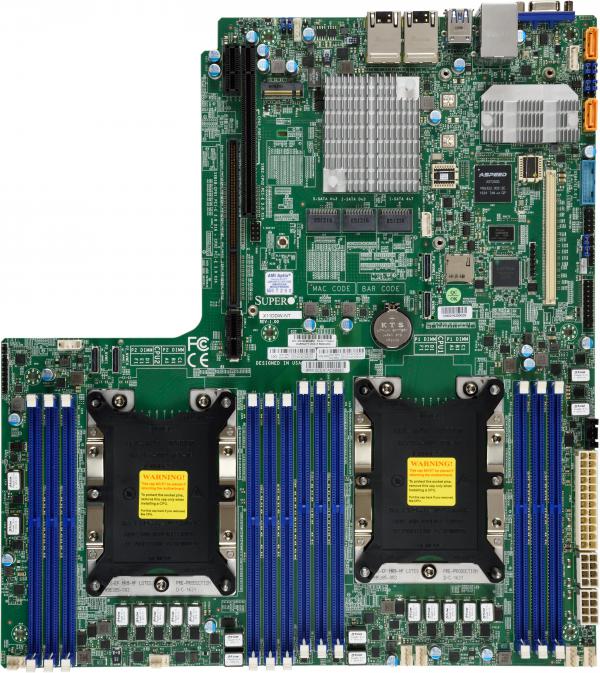

MBD-X11DDW-NT-O
https://safeconsulting.no/web/image/product.template/611/image_1920?unique=4175d88

kr 8,172.89 8172.89 NOK kr 8,172.89

kr 8,172.89

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro MBD-X11DDW-NT-O is designed to deliver exceptional performance and scalability for data center and enterprise applications. It supports dual-socket LGA-3647, up to 3TB DDR4 memory, and features advanced I/O, storage, and management options.

    Key Features

    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
    • Intel® C622
    • Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz, in 12 DIMM slots;Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).
    • 1 PCIe 3.0 x32 Left Riser Slot,1 PCIe 3.0 x16 Right Riser Slot,1 PCIe 3.0 x16 for Add-On-Module (AOM)M.2 Interface:PCIe 3.0 x4M.2 Form Factor:2242, 2260, 2280, 22110M.2 Key:M-KeyU.2 Interface: PCIe 3.0 x4,4 PCIe 3.0 NVMe x4 Internal Port(s)
    • Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • Dual LAN with 10Gbase-Tfrom C622
    • 1 VGA port

    Key Applications

    • Data center
    • Enterprise
    • High-performance computing
    • Virtualization
    • Cloud computing
    • Storage server
    • Big data analytics

    Description

    The Supermicro MBD-X11DDW-NT-O motherboard is engineered for high performance and reliability, catering to the needs of data centers and enterprises. Equipped with the Intel C622 chipset, it supports 2nd Gen Intel Xeon Scalable Processors, delivering up to 205W TDP with dual UPI up to 10.4 GT/s. The board features 12 DIMM slots for up to 3TB DDR4 memory and supports Intel Optane DC Persistent Memory. With extensive I/O options, including PCIe 3.0, M.2, SATA3, and various USB ports, along with robust network capabilities with dual 10GBase-T LAN, this motherboard ensures optimal connectivity and expansion. Additionally, the board integrates advanced management tools like SuperDoctor® 5 and supports various health monitoring features.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11DDW-NT
    Physical Stats
    Form Factor
    • Proprietary WIO
    Dimension
    • 12.3" x 13.4" (31.24cm x 34.04cm)
    Processor
    CPU
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
    • Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s
    Note
    • BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
    System Memory
    Memory Capacity
    • 12 DIMM slots
    • Up to 3TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 3TB 3DS ECC RDIMM, DDR4-2933MT/s
    • Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).
    Memory Type
    • 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
    DIMM Sizes
    • LRDIMM: 64GB, 128GB
    • RDIMM: 64GB, 128GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • Intel® C622
    SATA
    • Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2500
    Graphics
    • 1 ASPEED AST2500 BMC port(s)
    Network Controllers
    • Dual LAN with 10Gbase-T, from C622
    Input / Output
    LAN
    • 2 RJ45 10GBase-T ports
    USB
    • 6 USB 3.2 Gen1 port(s) (2 via header; 4 rear)
    Video Output
    • 1 VGA port(s)
    DOM
    • 2 SuperDOM(Disk on Module) ports
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x32 Left Riser Slot,
    • 1 PCIe 3.0 x16 Right Riser Slot,
    • 1 PCIe 3.0 x16 for Add-On-Module (AOM)
    M.2
    • M.2 Interface: PCIe 3.0 x4
    • Form Factor: 22110, 2280, 2242, 2260
    • Key: M-Key
    System BIOS
    BIOS Type
    • 256MB UEFI
    Management
    Software
    • SuperDoctor® 5,SUM, KVM with dedicated LAN,SPM, Intel® Node Manager,SSM,IPMI2.0, Watchdog
    PC Health Monitoring
    Voltage
    • Monitors CPU voltages, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
    LED
    • UID/Remote UID
    • Power LED
    • BMC/IPMI Heartbeat LED
    • CPU / System Overheat LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    FAN
    • 6x 4-pin fan headers (up to 6 fans)
    • PWM fan speed control
    • 6 fans with tachometer status monitoring
    • Status monitoring for speed control
    Other Features
    • UID, RoHS, Node Manager Support, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection
    Operating Environment
    Operating Temperature Range
    • 10°C - 35°C (50°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    IO Cable
    CBL-SAST-0388L-021IPASS to 4 SATA cable
    X11DDW-NT
    MBD-X11DDW-NT1Motherboard
    Retail Package
    IO Cable
    CBL-SAST-0388L-021IPASS to 4 SATA cable
    Quick Reference Guide
    MNL-1907-QRG1Quick Reference Guide
    X11DDW-NT
    MBD-X11DDW-NT1Motherboard

    Optional Part List

    Part Number Quantity Description
    TPM security module (optional, not included)
    AOM-TPM-9670V-S-SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
    AOM-TPM-9671V-S-SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
