  2. X11 DP Skylake,16 DIMM DDR4,4 PCI-E 3.0x8,3 PCI-E 3.0x16

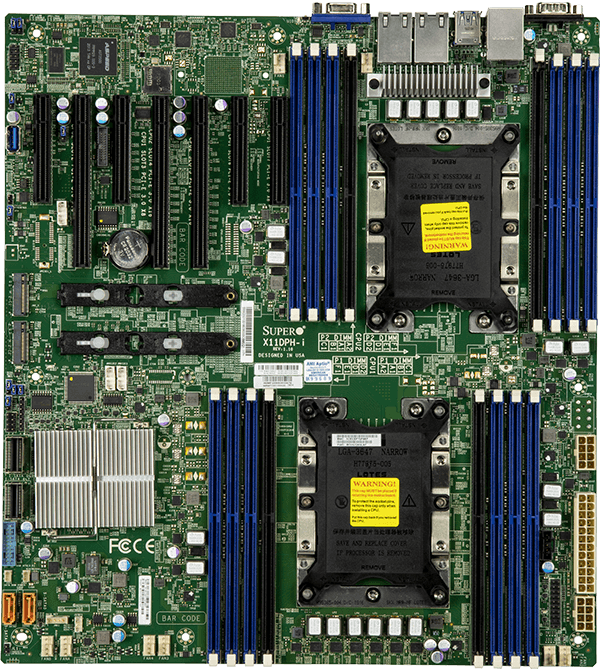

X11 DP Skylake,16 DIMM DDR4,4 PCI-E 3.0x8,3 PCI-E 3.0x16

MBD-X11DPH-I-O
https://safeconsulting.no/web/image/product.template/9867/image_1920?unique=5a19258

kr 6,455.41 6455.41 NOK kr 6,455.41

kr 6,455.41

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X11DPH-I-O is engineered to support 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors. It delivers robust performance, expandability, and reliability for data centers and advanced computing environments.

    Key Features

    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s
    • Intel® C621
    • Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHzOr 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots;Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);
    • 3 PCIe 3.0 x16,4 PCIe 3.0 x8M.2 Interface:2 PCIe 3.0 x4M.2 Form Factor:2242/2260/2280/22110M.2 Key:M-Key (RAID 0,1 support)
    • Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • Dual LAN with 1GbE with Intel® X722 + Marvell 88E1512
    • 1 VGA port

    Key Applications

    • Data Centers
    • High-Performance Computing
    • Server Virtualization
    • Enterprise Resource Planning

    Description

    The Supermicro MBD-X11DPH-I-O motherboard is tailored for enterprises demanding superior performance and scalability. Featuring dual socket LGA-3647 support, it can handle Intel® Xeon® Scalable Processors with up to 205W TDP. It supports up to 4TB of DDR4 memory, 10 SATA3 ports, dual 1GbE LAN, and diverse expansion options with its multiple PCIe slots and M.2 interfaces. The board is equipped with advanced health monitoring, comprehensive I/O ports, and TPM security module support, ensuring reliability and security for critical applications.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11DPH-i
    Physical Stats
    Form Factor
    • E-ATX
    Dimension
    • 12" x 13" (30.48cm x 33.02cm)
    Processor
    CPU
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
    • Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s
    System Memory
    Memory Capacity
    • 16 DIMM slots
    • Up to 2TB Intel® Optane™ Persistent Memory 100 Series, DDR4-2666MT/s
    • Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s
    Memory Type
    • 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
    DIMM Sizes
    • LRDIMM: 64GB
    • RDIMM: 64GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • Intel® C621
    SATA
    • Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2500
    Network Controllers
    • Dual LAN with 1GbE with Intel® X722 + Marvell 88E1512
    Input / Output
    SATA
    • 10 SATA3 (6Gbps) port(s)
    LAN
    • 2 1GbE LAN ports
    USB
    • 7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 1 COM Port(s) (1 rear)
    DOM
    • 2 SATADOM(Disk on Module) power connector support
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 3 PCIe 3.0 x16,
    • 4 PCIe 3.0 x8
    M.2
    • M.2 Interface: 2 PCIe 3.0 x4, RAID 0,1
    • Form Factor: 2242/2260/2280/22110
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    Management
    Software
    • SuperDoctor® 5,SUM, KVM with dedicated LAN,SPM, Intel® Node Manager,SSM,IPMI2.0, Watchdog
    PC Health Monitoring
    Voltage
    • Monitors CPU voltages, Chipset Voltage, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
    LED
    • UID/Remote UID
    • Power LED
    • BMC/IPMI Heartbeat LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • Thermal Control for 8 Fan Connectors
    FAN
    • 8x 4-pin fan headers (up to 8 fans)
    • PWM fan speed control
    Other Features
    • WOL, UID, RoHS, CPU thermal trip support for processor protection, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, SDDC, NCSI header
    Operating Environment
    Operating Temperature Range
    • 10°C - 35°C (50°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L257.5 cm SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00042-0N1STD I/O SHIELD

    Optional Part List

    Part Number Quantity Description
    TPM security module (optional, not included)
    AOM-TPM-9670H1SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
    AOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9671V1SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9671H1SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
