X11 DP Skylake,16 DIMM DDR4,4 PCI-E 3.0x8,3PCI-E 3.0x16

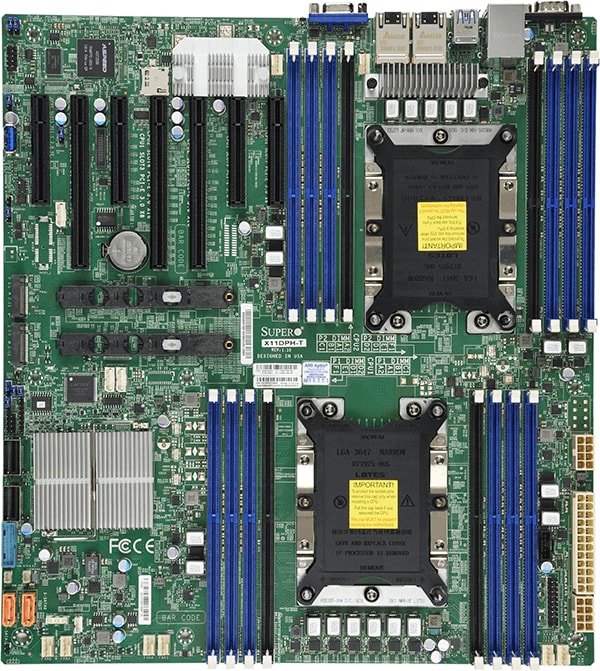

MBD-X11DPH-T-B
https://safeconsulting.no/web/image/product.template/602/image_1920?unique=774dd05

kr 7,611.16 7611.16 NOK kr 7,611.16

kr 7,611.16

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X11DPH-T-B is designed for high-performance computing with support for 2nd Gen Intel Xeon Scalable Processors, up to 4TB of DDR4 RAM, and a multitude of I/O options including 10GBase-T LAN and multiple PCI-E slots. Ideal for data centers and enterprise applications.

    Key Features

    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s
    • Intel® C622
    • Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHzOr 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots;Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);
    • 3 PCIe 3.0 x16,4 PCIe 3.0 x8M.2 Interface:2 PCIe 3.0 x4M.2 Form Factor:2242/2260/2280/22110M.2 Key:M-Key (RAID 0,1 support)
    • Dual LAN with 10GBase-T with Intel® X722 + X557
    • Intel® C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • 1 VGA port

    Key Applications

    • Enterprise Servers
    • Data Centers
    • High Performance Computing
    • Storage Systems

    Description

    Supermicro's MBD-X11DPH-T-B motherboard is engineered to provide superior performance and flexibility for data centers and enterprise environments. It supports 2nd Gen Intel Xeon Scalable Processors along with the Intel C622 chipset, delivering robust computing power. The motherboard can accommodate up to 4TB of ECC DDR4-2933MHz memory across 16 DIMM slots and supports Intel Optane DC Persistent Memory for enhanced scalability. Its extensive connectivity options include 10 SATA3 ports with RAID support, multiple M.2 slots, dual 10GBase-T LAN ports, and an array of USB ports. Additionally, the board features comprehensive PC health monitoring and management capabilities, making it a reliable choice for demanding applications.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11DPH-T
    Physical Stats
    Form Factor
    • E-ATX
    Dimension
    • 12" x 13" (30.48cm x 33.02cm)
    Processor
    CPU
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
    • Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s
    Note
    • BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP
    • BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SPBIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
    System Memory
    Memory Capacity
    • 16 DIMM slots
    • Up to 2TB Intel® Optane™ Persistent Memory 100 Series, DDR4-2666MT/s
    • Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s
    • Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
    Memory Type
    • 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
    DIMM Sizes
    • LRDIMM: 64GB
    • RDIMM: 64GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • Intel® C622
    SATA
    • Intel® C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2500
    Network Controllers
    • Dual LAN with 10GBase-T with Intel® X722 + X557
    Input / Output
    SATA
    • 10 SATA3 (6Gbps) port(s)
    LAN
    • 2 RJ45 10GBase-T ports
    USB
    • 7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 1 COM Port(s) (1 rear)
    DOM
    • 2 SATADOM(Disk on Module) power connector support
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 3 PCIe 3.0 x16,
    • 4 PCIe 3.0 x8
    M.2
    • M.2 Interface: 2 PCIe 3.0 x4, RAID 0,1
    • Form Factor: 2242/2260/2280/22110
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    Management
    Software
    • SuperDoctor® 5,SUM, KVM with dedicated LAN,SPM, Intel® Node Manager,SSM,IPMI2.0, Watchdog
    PC Health Monitoring
    Voltage
    • Monitors CPU voltages, Chipset Voltage, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
    LED
    • UID/Remote UID
    • Power LED
    • BMC/IPMI Heartbeat LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • Thermal Control for 8 Fan Connectors
    FAN
    • 8x 4-pin fan headers (up to 8 fans)
    • PWM fan speed control
    • 8x fans with tachometer monitoring
    Other Features
    • WOL, UID, RoHS, CPU thermal trip support for processor protection, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, SDDC, NCSI header
    Operating Environment
    Operating Temperature Range
    • 10°C - 35°C (50°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L257.5 cm SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00042-0N1STD I/O SHIELD
    Retail Package
    I/O Cables
    CBL-0044L257.5 cm SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00042-0N1STD I/O SHIELD

    Optional Part List

    Part Number Quantity Description
    TPM security module (optional, not included)
    AOM-TPM-9670H1SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
    AOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9671V1SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9671H1SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
