  2. Mainstream MBD for X11DP EATX, 16DIMMs-BULK

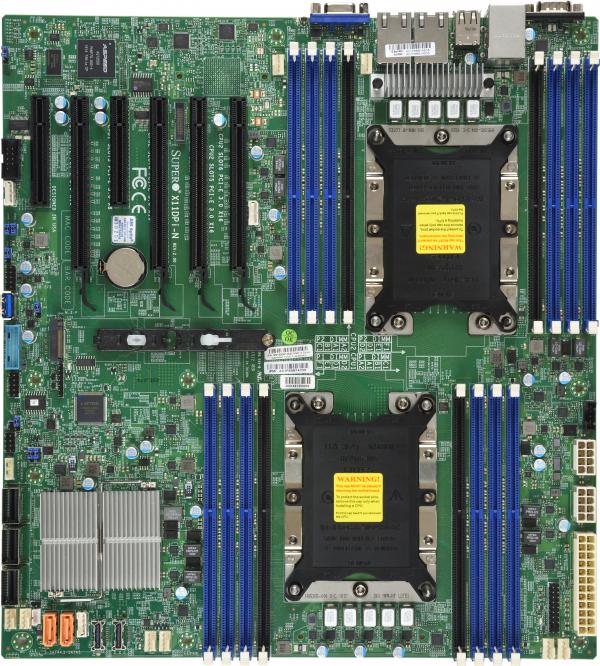

Mainstream MBD for X11DP EATX, 16DIMMs-BULK

MBD-X11DPI-N-B
https://safeconsulting.no/web/image/product.template/594/image_1920?unique=73d2afe

kr 6,850.21 6850.21 NOK kr 6,850.21

kr 6,850.21

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X11DPI-N-B is an enterprise-grade motherboard designed for high-performance computing. It supports 2nd Gen Intel® Xeon® Scalable Processors in dual LGA-3647 sockets, providing robust computing power. With up to 4TB DDR4-2933MHz memory capacity across 16 DIMM slots and extensive I/O options, it's ideal for data centers and advanced computing environments.

    Key Features

    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable ProcessorsDual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
    • Intel® C621
    • Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHzOr 2TB Intel© PMem, DDR4-2666MHz, in 16 DIMM slots;Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);
    • 4 PCIe 3.0 x16,2 PCIe 3.0 x8,2 PCIe 3.0 NVMe x4 Internal Port(s)M.2 Interface:PCIe 3.0 x4M.2 Form Factor:2260, 2280, 22110M.2 Key:M-Key
    • Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • Dual LAN with 1GbE LAN with Intel® X722
    • 1 VGA port

    Key Applications

    • High-Performance Computing (HPC)
    • Data Centers
    • Server Environments
    • Cloud Computing
    • Virtualization
    • Storage Solutions

    Description

    The Supermicro MBD-X11DPI-N-B is built for demanding data center environments, supporting the latest Intel® Xeon® Scalable Processors. With dual LGA-3647 sockets, up to 4TB DDR4-2933MHz memory, and multiple high-speed PCIe 3.0 slots, this motherboard ensures exceptional performance and flexibility. It features Intel® C621 chipset, dual 1GbE LAN, numerous USB ports, and comprehensive monitoring capabilities. Enhance your computational infrastructure with the MBD-X11DPI-N-B motherboard.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11DPI-No
    Physical Stats
    Form Factor
    • E-ATX
    Dimension
    • 12" x 13" (30.48cm x 33.02cm)
    Processor
    CPU
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
    • Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s
    Core
    • Up to 28 cores
    Note
    • BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP
    System Memory
    Memory Capacity
    • 16 DIMM slots
    • Up to 2TB Intel® Optane™ Persistent Memory 100 Series, DDR4-2666MT/s
    • Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s
    • Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
    Memory Type
    • 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
    DIMM Sizes
    • LRDIMM: 128GB
    • RDIMM: 64GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • Intel® C621
    SATA
    • Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2500
    Graphics
    • 1 ASPEED AST2500 BMC port(s)
    Network Controllers
    • Dual LAN with 1GbE LAN with Intel® X722
    Input / Output
    SATA
    • 14 SATA3 (6Gbps) port(s)
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 4 USB 2.0 port(s) (2 via header; 2 rear)
    • 3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 VGA port(s)
    Serial Port
    • 2 COM Port(s) (1 header; 1 rear)
    DOM
    • 2 SuperDOM(Disk on Module) ports
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 4 PCIe 3.0 x16,
    • 2 PCIe 3.0 x8
    M.2
    • M.2 Interface: PCIe 3.0 x4
    • Form Factor: 22110, 2280, 2260
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    Management
    Software
    • SuperDoctor® 5,SUM, KVM with dedicated LAN,SPM, Intel® Node Manager,SSM,IPMI2.0, Watchdog
    PC Health Monitoring
    Voltage
    • Monitors CPU voltages, 3.3V standby, +5V standby, +5V, +3.3V, +12V
    LED
    • UID/Remote UID
    • Power LED
    • BMC/IPMI Heartbeat LED
    • CPU / System Overheat LED
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • PECI
    FAN
    • 8x 4-pin fan headers (up to 8 fans)
    • PWM fan speed control
    Other Features
    • UID, RoHS, Node Manager Support, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, SDDC, NCSI header
    Operating Environment
    Operating Temperature Range
    • 10°C - 35°C (50°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    I/O Cables
    CBL-0044L257.5 cm SATA FLAT S-S PBF
    I/O Shield
    MCP-260-00042-0N1STD I/O SHIELD
    Retail Package
    I/O Shield
    MCP-260-00042-0N1STD I/O SHIELD
    X11DPi-N
    MBD-X11DPi-N1Motherboard

    Optional Part List

    Part Number Quantity Description
    TPM security module (optional, not included)
    AOM-TPM-9670V-S-SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9671V-S-SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
