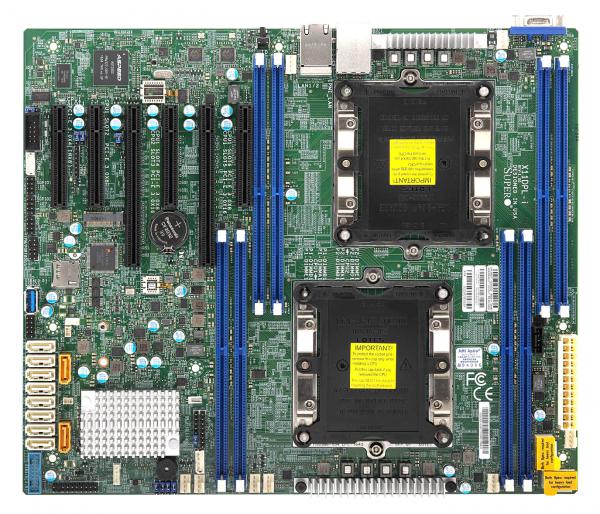

X11DPL-i Dual Xeon Scalable Processors, 8 DIMM, ATX MB, RoHS

MBD-X11DPL-I-O
https://safeconsulting.no/web/image/product.template/605/image_1920?unique=1caa98b

kr 6,220.67 6220.67 NOK kr 6,220.67

kr 6,220.67

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro MBD-X11DPL-I-O is an advanced ATX motherboard designed for high-performance computing, featuring dual socket support for 2nd Gen Intel Xeon Scalable Processors, up to 2TB of DDR4 memory, and multiple expansion slots.

    Key Features

    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 140W TDP, 2 UPI up to 10.4 GT/s
    • Intel® C621
    • Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots
    • 2 PCIe 3.0 x16,3 PCIe 3.0 x8,1 PCIe 3.0 x4 (in x8 slot)M.2 Interface:1 SATA/PCIe 3.0 x4M.2 Form Factor:2260, 2280M.2 Key:M-Key
    • Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • Dual LAN with 1GbE with Intel® X722 + Marvell 88E1512
    • 1 VGA port

    Description

    Supermicro's MBD-X11DPL-I-O motherboard is equipped with state-of-the-art features including dual socket LGA-3647, supporting both 2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors. It boasts an Intel C621 chipset and supports up to 2TB of 3DS ECC RDIMM or LRDIMM DDR4 memory. With 10 SATA3 ports, RAID support, multiple PCIe slots, dual LAN with 1GbE, and a variety of other I/O options, it is designed for versatile and robust performance in demanding environments.

    Product Specifications

    Product SKUs
    MBD-X11DPL-I
    Physical Stats
    Form FactorATX
    Dimension12.076" x 10.15" (30.67cm x 25.78cm)
    Processor
    CPU2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
    Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 140W TDP, Dual UPI up to 10.4 GT/s
    System Memory
    Memory Capacity8 DIMM slots
    Up to 2TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-2933MT/s
    Memory Type2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
    DIMM SizesLRDIMM: 128GB
    RDIMM: 64GB
    Memory Voltage1.2V
    Error DetectionCorrects single-bit errors
    On-Board Devices
    ChipsetIntel® C621
    SATAIntel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMIASPEED AST2500
    Graphics1 ASPEED AST2500 BMC port(s)
    Network ControllersDual LAN with 1GbE with Intel® X722 + Marvell 88E1512
    Input / Output
    SATA10 SATA3 (6Gbps) port(s)
    LAN2 RJ45 Gigabit Ethernet LAN ports
    USB4 USB 2.0 port(s) (2 via header; 2 rear)
    3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)
    Video Output1 VGA port(s)
    Serial Port1 COM Port(s) (1 header)
    DOM2 SuperDOM(Disk on Module) ports
    TPM1 TPM Header
    Expansion Slots
    PCIe2 PCIe 3.0 x16,
    3 PCIe 3.0 x8,
    1 PCIe 3.0 x4 (in x8 slot)
    M.2M.2 Interface: 1 SATA/PCIe 3.0 x4
    Form Factor: 2280, 2260
    Key: M-Key
    System BIOS
    BIOS TypeAMI UEFI
    Management
    SoftwareSuperDoctor® 5, NMI,SUM, KVM with dedicated LAN,SPM, Intel® Node Manager,SSM,IPMI2.0, Watchdog
    System Management SoftwareIPMICFG, IPMIView for Linux/Windows, SMCIPMITool
    Power ConfigurationsACPI Power Management
    PC Health Monitoring
    VoltageSupports system management utility, Monitors CPU voltages, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, 8 -fan status
    LEDUID/Remote UID
    CPU / System Overheat LED
    TemperatureCPU thermal trip support
    PECI
    FAN8x 4-pin fan headers (up to 8 fans)
    PWM fan speed control
    Overheat LED indication
    Other FeaturesUID, Node Manager Support, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, SDDC
    Operating Environment
    Operating Temperature Range10°C - 35°C (50°F - 95°F)
    Non-Operating Temperature Range-40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range8% - 90% (non-condensing)
    Non Operating Relative Humidity Range5% - 95% (non-condensing)

    Standard Part List

    Bulk Package
    I/O Cables
    Part NumberQuantityDescription
    CBL-0044L2SATA CABLE 61CM FLAT S-S PBF
    I/O Shield
    Part NumberQuantityDescription
    MCP-260-00110-0N1Standard I/O Shield for X11DPL-i with EMI Gasket
    Retail Package
    I/O Cables
    Part NumberQuantityDescription
    CBL-0044L6SATA CABLE 61CM FLAT S-S PBF
    I/O Shield
    Part NumberQuantityDescription
    MCP-260-00110-0N1Standard I/O Shield for X11DPL-i with EMI Gasket

    Optional Part List

    1U I/O Shield
    Part NumberQuantityDescription
    MCP-260-00111-0N-1U I/O Shield for X11DPL-i with EMI Gasket
    TPM security module (optional, not included
    Part NumberQuantityDescription
    AOM-TPM-9670V-SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9670V-S-SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
