  2. X11 Purely Platform,11pcs PCIe Slots MAX I/O Optimized

X11 Purely Platform,11pcs PCIe Slots MAX I/O Optimized

SKU: MBD-X11DPX-T-B
Brand: Supermicro
https://safeconsulting.no/web/image/product.template/9881/image_1920?unique=e6ef904

kr 10,941.22 10941.22 NOK kr 10,941.22 VAT Excluded

kr 10,941.22 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

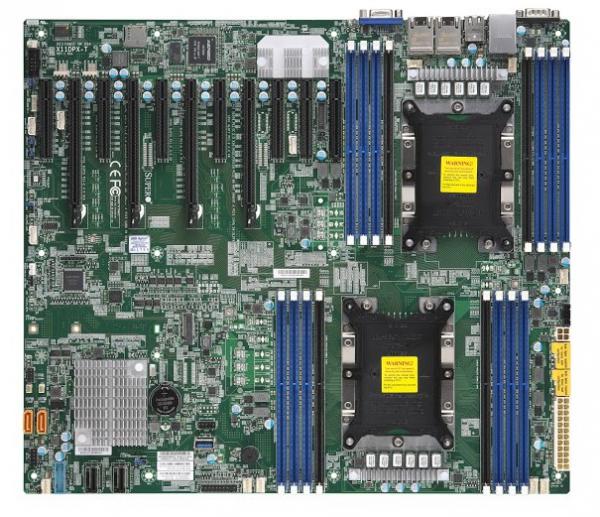

    The Supermicro MBD-X11DPX-T-B is a robust dual-socket server motherboard designed for high-performance computing, supporting 2nd Gen Intel Xeon Scalable Processors with up to 28 cores and an impressive memory capacity of up to 4TB DDR4 RAM.

    Key Features

    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s
    • Intel® C621
    • Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHzOr 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots;Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).
    • 2 PCIe 3.0 x16,8 PCIe 3.0 x8,1 PCIe 3.0 x4 (in x8 slot) Or 4 PCIe 3.0 x16 and 4 PCIe 3.0 x8 and 1 PCIe 3.0 x4 (in x8 slot)M.2 Interface:1 PCIe 3.0 x4M.2 Form Factor:2280, 22110M.2 Key:M-Key
    • Dual LAN with Intel® X550 10GBase-T Ethernet Controller
    • Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • 1 VGA D-Sub Connector port

    Key Applications

    • High-performance computing
    • Enterprise servers
    • Data-intensive applications
    • Cloud computing
    • Virtualization
    • Big data analytics
    • AI workloads
    • Database management

    Description

    The Supermicro MBD-X11DPX-T-B is equipped with dual sockets for 2nd Gen Intel Xeon Scalable Processors, each supporting up to 28 cores. It offers extensive memory support, including up to 4TB DDR4 ECC RDIMM/LRDIMM and Intel Optane DC Persistent Memory. The board comes with a powerful set of features including multiple PCIe slots, dual 10GBase-T Ethernet, advanced storage capabilities with 10 SATA3 ports, and comprehensive management tools. Ideal for data-intensive applications and enterprise environments, this motherboard ensures scalability and high reliability.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11DPX-T
    Physical Stats
    Form Factor
    • Proprietary
    Dimension
    • 15.12" x 13.2" (38.4cm x 33.53cm)
    Processor
    CPU
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
    • Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s
    Core
    • Up to 28 cores
    Note
    • BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
    System Memory
    Memory Capacity
    • 16 DIMM slots
    • Up to 2TB Intel® Optane™ Persistent Memory 100 Series, DDR4-2666MT/s
    • Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s
    • Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).
    Memory Type
    • 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
    DIMM Sizes
    • 64GB
    • LRDIMM: 64GB, 128GB
    • RDIMM: 64GB, 128GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • Intel® C621
    SATA
    • Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2500
    Graphics
    • 1 ASPEED AST2500 BMC port(s)
    Network Controllers
    • Dual LAN with Intel® X550 10GBase-T Ethernet Controller
    Input / Output
    SATA
    • 10 SATA3 (6Gbps) port(s)
    LAN
    • 2 RJ45 10GBase-T ports
    USB
    • 4 USB 2.0 port(s) (2 via header; 2 rear)
    • 3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 VGA D-Sub Connector port(s)
    Serial Port
    • 2 COM Port(s) (1 header; 1 rear)
    DOM
    • 2 SuperDOM(Disk on Module) port with build power
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 2 PCIe 3.0 x16,
    • 8 PCIe 3.0 x8,
    • 1 PCIe 3.0 x4 (in x8 slot) Or 4 PCIe 3.0 x16 and 4 PCIe 3.0 x8 and 1 PCIe 3.0 x4 (in x8 slot)
    M.2
    • M.2 Interface: 1 PCIe 3.0 x4
    • Form Factor: 2280, 22110
    • Key: M-Key
    System BIOS
    BIOS Type
    • 32MB AMI SPI Flash ROM
    BIOS Features
    • Plug and Play (PnP)
    • ACPI 1.0 / 2.0 / 3.0 / 4.0
    • USB Keyboard support
    • SMBIOS 2.7.1
    • UEFI 2.3.1
    Management
    Software
    • SuperDoctor® 5, NMI,SUM, KVM with dedicated LAN,SPM, Intel® Node Manager,SSM, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
    Power Configurations
    • ACPI Power Management
    PC Health Monitoring
    Voltage
    • VBAT, Supports system management utility, HT, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, +1.8V, 5+1 Phase-switching voltage regulator, 10 -fan status
    LED
    • UID/Remote UID
    • Suspend static indicator LED
    • CPU / System Overheat LED
    Other Features
    • RoHS
    • Node Manager Support
    • CPU thermal trip support for processor protection
    • Chassis intrusion detection
    FAN
    • 10x 4-pin fan headers (up to 10 fans)
    Operating Environment
    Operating Temperature Range
    • 10°C - 35°C (50°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
