    Summary Description

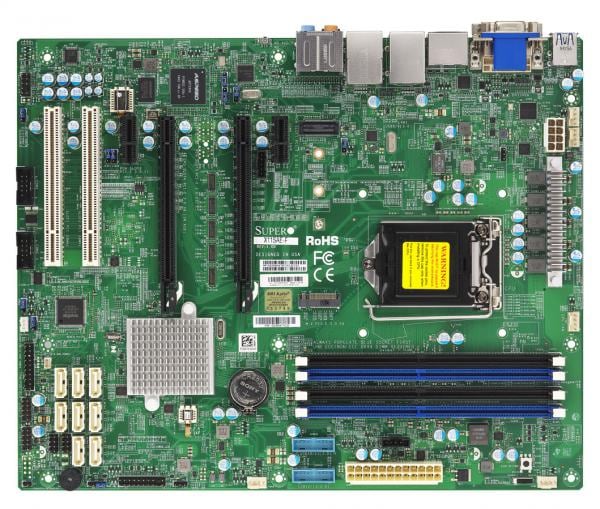

    The Supermicro MBD-X11SAE-F-O is a versatile ATX motherboard designed for high-performance computing with support for Intel Xeon E3-1200 v5/v6, 6th/7th Gen Core i7/i5/i3 series processors, offering multiple SATA3, PCIe, and USB 3.1 ports.

    Key Features

    • Single socket H4 (LGA 1151) supportsIntel® Xeon® processor E3-1200 v5/v6,Intel® 6th/7th Gen. Core™ i7/i5/i3 series,Intel® Celeron® and Intel® Pentium®
    • Intel® C236 chipset
    • Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots
    • 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCIe M.2 (support PCIe x4 only, 2242/2260/2280)
    • 2 PCIe 3.0 x16 (run at 16/NA or 8/8), 2 PCIe 3.0 x1, and 2 5V PCI 32-bit slots
    • Single GbE LAN with Intel® i210-AT (Share with IPMI); single GbE LAN with Intel® i219LM
    • 6 USB 3.0 (2 rear + 4 via header(s))6 USB 2.0 (2 rear + 4 via header(s))2 USB 3.1 (10Gbps, rear)
    • I/O: 1 VGA, 2 COM, TPM header

    Key Applications

    • High-performance computing
    • Workstations
    • Data processing
    • Server applications

    Description

    The Supermicro MBD-X11SAE-F-O motherboard is built for robust performance and flexibility, catering to a wide range of computing needs. It supports single-socket H4 (LGA 1151) processors including Intel Xeon E3-1200 v5/v6 and Intel 6th/7th Gen Core i7/i5/i3 series. With up to 64GB of DDR4 memory, eight SATA3 ports, multiple PCIe slots, and extensive USB connectivity, this ATX motherboard excels in data handling and peripheral support. Integrated network and audio controllers ensure seamless communication and high-quality sound.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11SAE-F
    Physical Stats
    Form Factor
    • ATX
    Dimension
    • 12" x 9.6" (30.48cm x 24.38cm)
    Processor
    CPU
    • Intel® Xeon® processor E3-1200 v6/v5, Intel® 6th/7th Generation Core™ i3 series, Intel® 6th/7th Generation Core™ i5 series, Intel® 6th/7th Generation Core™ i7 series
    • Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MT/s
    Memory Type
    • 2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
    DIMM Sizes
    • 4GB, 8GB, 16GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • Intel® C236
    SATA
    • Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 ASPEED AST2400 BMC port(s)
    Network Controllers
    • Single LAN with Intel® PHY I219LM LAN controller
    • Single LAN with Intel® Ethernet Controller I210-AT, (Share with IPMI)
    Input / Output
    USB
    • 8 USB 2.0 port(s) (6 via header; 2 rear Type A)
    • 6 USB 3.2 Gen 1x1 port(s) (2 rear Type A; 4 via header)
    • 2 USB 3.2 Gen 2x1 port(s) (2 rear Type A)
    Video Output
    • 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s)
    Serial Port
    • 2 COM Port(s) (2 header)
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 2 PCIe 3.0 x16,
    • 2 PCIe 3.0 x12 PCI
    • 2 - 5V PCI 32bit
    • ***2 PCIe x16 slots are running at x16/NA or x8/x8 ***
    M.2
    • M.2 Interface: 1 PCIe 3.0 x4
    • Form Factor: 2242/2260/2280
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • Plug and Play (PnP)
    • DMI 2.3
    • PCI 3.0
    • ACPI 5.0
    • USB Keyboard support
    • Hardware BIOS Virus protection
    • SMBIOS 3.0
    • UEFI 2.3.1
    • RTC (Real Time Clock) Wakeup
    Management
    Software
    • SuperDoctor® 5,SPM,IPMI2.0, Watchdog
    Power Configurations
    • Power-on mode for AC power recovery, ACPI Power Management, Keyboard Wakeup from Soft-Off, CPU Fan auto-off in sleep mode
    PC Health Monitoring
    Voltage
    • VBAT, Monitors CPU voltages, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V
    LED
    • UID/Remote UID
    • Suspend static indicator LED
    • CPU / System Overheat LED
    Temperature
    • CPU thermal trip support
    • Thermal Monitor 2 (TM2) support
    • PECI
    • I2C temperature sensing logic
    FAN
    • 5x 4-pin fan headers (up to 5 fans)
    • Fan speed control
    • Overheat LED indication
    Other Features
    • WOL, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, Intel Smart Response Technology
    Operating Environment
    Operating Temperature Range
    • 0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range
    • -20°C - 60°C (-4°F - 140°F)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    IO shield
    MCP-260-00063-1N1X11SAE-F I/O Shield
    SATA cable
    CBL-0044L257.5CM SATA FLAT S-S PBF
    Retail Package
    IO shield
    MCP-260-00063-1N1X11SAE-F I/O Shield
    Quick Reference Guide
    MNL-1820-QRG1X11SAE-F Quick Reference Guide
    SATA cable
    CBL-0044L657.5CM SATA FLAT S-S PBF
