    Summary Description

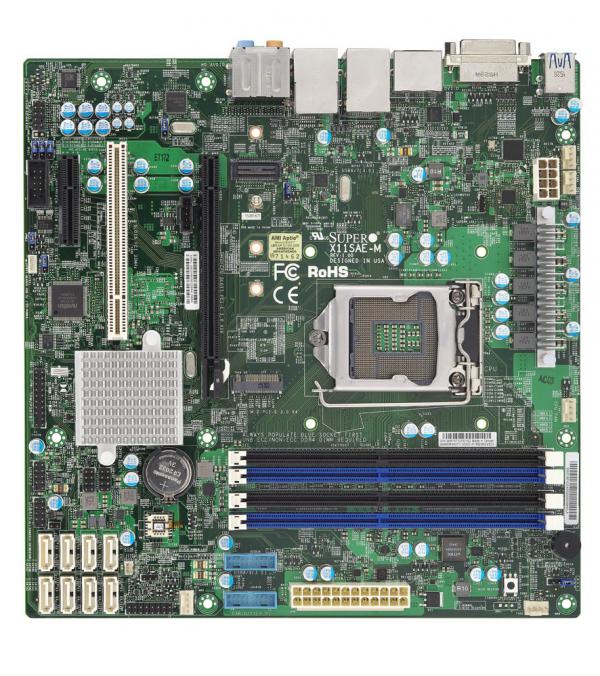

    The Supermicro MBD-X11SAE-M-B is a versatile Micro-ATX motherboard supporting Intel® Xeon® E3-1200 v5/v6, 6th/7th Gen. Core™ i7/i5/i3 series, Intel® Celeron®, and Intel® Pentium® processors. It offers robust performance, advanced features, and reliable connectivity for various applications.

    Key Features

    • Single socket H4 (LGA 1151) supportsIntel® Xeon® processor E3-1200 v5/v6,Intel® 6th/7th Gen. Core™ i7/i5/i3 series,Intel® Celeron® and Intel® Pentium®
    • Intel® C236 chipset
    • Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots
    • 1 PCIe 3.0 x16, 1 PCIe 3.0 x4, and 1x 5V PCI 32-bit slots
    • 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCIe M.2 (support PCIe x4 only, 2242/2260/2280/22110)
    • Single GbE LAN with Intel® i210-AT,Single GbE LAN with Intel® i219LM
    • 6 USB 3.0 (2 rear + 4 via header(s))6 USB 2.0 (2 rear + 4 via header(s))2 USB 3.1 (10Gbps, rear)

    Key Applications

    • Server Applications
    • Workstations
    • Enterprise Applications
    • Data Centers
    • High-Performance Computing
    • Industrial Automation
    • OEM Solutions
    • Network Appliances
    • Virtualization

    Description

    The Supermicro MBD-X11SAE-M-B motherboard is designed for high performance and reliability. Featuring a single socket H4 (LGA 1151) that supports Intel® Xeon® processor E3-1200 v5/v6 and 6th/7th Gen. Core™ i7/i5/i3 series, this motherboard ensures excellent computing power. It includes an Intel® C236 chipset, up to 64GB DDR4 memory support, multiple expansion slots, robust onboard devices, and extensive connectivity options for versatile applications. The product monitors CPU voltages, includes LED indicators for system health, and supports temperature monitoring for optimal performance and stability.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11SAE-M
    Physical Stats
    Form Factor
    • Micro-ATX
    Dimension
    • 9.6" x 9.6" (24.38cm x 24.38cm)
    Processor
    CPU
    • Intel® Xeon® processor E3-1200 v6/v5, Intel® 6th/7th Generation Core™ i3 series, Intel® 6th/7th Generation Core™ i5 series, Intel® 6th/7th Generation Core™ i7 series
    • Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MT/s
    Memory Type
    • 2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
    DIMM Sizes
    • 4GB, 8GB, 16GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • Intel® C236
    SATA
    • Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    Audio
    • ALC 888S HD Audio
    Network Controllers
    • Single LAN with Intel® PHY I219LM LAN controller
    • Single LAN with Intel® Ethernet Controller I210-AT
    Input / Output
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 6 USB 2.0 port(s) (4 via header; 2 rear)
    • 6 USB 3.1 Gen1 port(s) (2 rear; 4 via header)
    • 2 USB 3.1 Gen2 port(s) (2 type A)
    Video Output
    • 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x16,
    • 1 PCIe 3.0 x4
    • 1 - 5V PCI 32bit
    M.2
    • M.2 Interface: 1 PCIe 3.0 x4
    • Form Factor: 2242/2260/2280
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • Plug and Play (PnP)
    • DMI 2.3
    • PCI 3.0
    • ACPI 5.0
    • USB Keyboard support
    • Hardware BIOS Virus protection
    • SMBIOS 3.0
    • UEFI 2.3.1
    • RTC (Real Time Clock) Wakeup
    Management
    Software
    • SuperDoctor® 5, AMT, vPro, Watchdog
    Power Configurations
    • Power-on mode for AC power recovery, ACPI Power Management, Keyboard Wakeup from Soft-Off, CPU Fan auto-off in sleep mode
    PC Health Monitoring
    Voltage
    • VBAT, Monitors CPU voltages, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V
    LED
    • UID/Remote UID
    • Suspend static indicator LED
    • CPU / System Overheat LED
    Temperature
    • CPU thermal trip support
    • Thermal Monitor 2 (TM2) support
    • PECI
    • I2C temperature sensing logic
    FAN
    • 5x 4-pin fan headers (up to 5 fans)
    • Fan speed control
    • Overheat LED indication
    Other Features
    • WOL, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ATX Power connector, 8-pin 12v DC power connector, Intel Smart Response Technology
    Operating Environment
    Operating Temperature Range
    • 0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range
    • -20°C - 60°C (-4°F - 140°F)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    IO shield
    MCP-260-00063-1N1X11SAE-M I/O Shield
    SATA cable
    CBL-0044L257.5CM SATA FLAT S-S PBF
    Retail Package
    IO shield
    MCP-260-00063-1N1X11SAE-M I/O Shield
    Quick Reference Guide
    MNL-1819-QRG1X11SAE-M Quick Reference Guide
    SATA cable
    CBL-0044L457.5CM SATA FLAT S-S PBF

    Optional Part List

    Part Number Quantity Description
    TPM security module (optional, not included
    AOM-TPM-9665V1-
