MBD-X11SAE-SINGLE

Name: MBD-X11SAE-SINGLE
Brand: supermicro
SKU: MBD-X11SAE-O
Price: 3138.75 NOK
Availability: OutOfStock

SKU:

MBD-X11SAE-O

kr 3,138.75 3138.75 NOK kr 3,138.75

kr 3,138.75

This combination does not exist.

ADD TO CART

Terms and Conditions

Summary Description

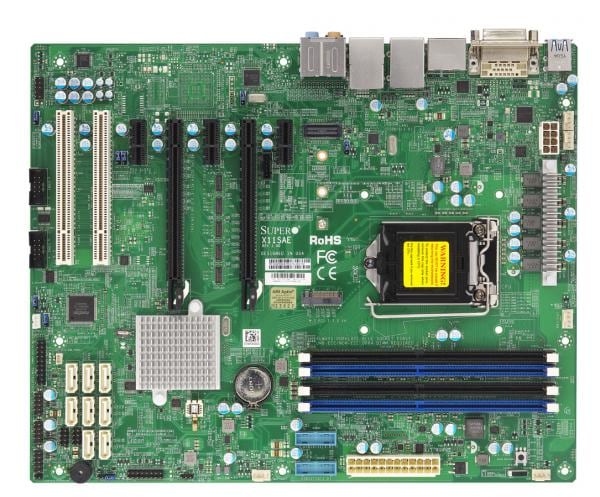

The Supermicro MBD-X11SAE-O is an ATX form factor motherboard supporting Intel® Xeon® E3-1200 v5/v6, 6th/7th Gen. Intel® Core™ i7/i5/i3, Intel® Celeron®, and Intel® Pentium® processors. Equipped with Intel® C236 chipset, it features up to 64GB DDR4, multiple PCIe slots, 8 SATA3, dual GbE LAN, USB 3.0/3.1, and extensive I/O options, ensuring robust performance for various applications.

Key Features

Single socket H4 (LGA 1151) supportsIntel® Xeon® processor E3-1200 v5/v6,Intel® 6th/7th Gen. Core™ i7/i5/i3 series,Intel® Celeron® and Intel® Pentium®
Intel® C236 chipset
Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots
2 PCIe 3.0 x16 (run at 16/NA or 8/8), 3 PCIe 3.0 x1, and 2 5V PCI 32-bit slots
8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCIe M.2 (support PCIe x4 only, 2242/2260/2280)
Single GbE LAN with Intel® i210-AT,Single GbE LAN with Intel® i219LM
6 USB 3.0 (2 rear + 4 via header(s))8 USB 2.0 (2 rear + 6 via header(s))2 USB 3.1 (10Gbps, rear)
I/O: 2 COM, TPM header

Key Applications

Workstations
Servers
High-performance PCs
Network Attached Storage
Video Editing

Description

The Supermicro MBD-X11SAE-O motherboard is designed for exceptional performance and reliability, supporting a wide range of Intel® processors including Intel® Xeon® E3-1200 v5/v6 and 6th/7th Gen. Intel® Core™ processors. Featuring the Intel® C236 chipset, this ATX motherboard offers extensive connectivity options with 8 SATA3 (6Gbps) ports, dual GbE LAN, and numerous USB 3.0/3.1 ports. Its memory support includes up to 64GB of DDR4, with four DIMM slots. The board also comes with multiple PCIe expansion slots, providing flexibility for various use cases. Advanced I/O options include dual Gb LAN, multiple video outputs (DP, HDMI, DVI-D), and legacy ports like COM. It also includes advanced management features like SuperDoctor® 5 and supports voltage, temperature, and fan monitoring for robust system health management.

Product Specifications

Specification	Details
Product SKUs
SKUs	MBD-X11SAE
Physical Stats
Form Factor	ATX
Dimension	12" x 9.6" (30.48cm x 24.38cm)
Processor
CPU	Intel® Xeon® processor E3-1200 v6/v5, Intel® 6th/7th Generation Core™ i3 series, Intel® 6th/7th Generation Core™ i5 series, Intel® 6th/7th Generation Core™ i7 series Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP A Graphic Integrated CPU is required to have the on-board video functioned. Examples: E3-1265L v3, E3-1275 v3
Note	BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ i3 Processors and Intel® Xeon® Processor E3-1200 v6 series
System Memory
Memory Capacity	4 DIMM slots Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MT/s
Memory Type	2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
DIMM Sizes	4GB, 8GB, 16GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel® C236
SATA	Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 + 1 PCIe M.2(PCIe x4, 2242/2260/2280)(No Raid Support)
Audio	ALC 888S HD Audio
Network Controllers	Single LAN with Intel® PHY I219LM LAN controller Single LAN with Intel® Ethernet Controller I210-AT
Input / Output
USB	8 USB 2.0 port(s) (6 via header; 2 rear Type A) 6 USB 3.2 Gen 1x1 port(s) (2 rear Type A; 4 via header) 2 USB 3.2 Gen 2x1 port(s) (2 rear Type A) 2 USB 3.1 Gen 2 ports (2 Rear)
Video Output	1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s)
Serial Port	2 COM Port(s) (2 header)
TPM	1 TPM Header
Expansion Slots
PCIe	2 PCIe 3.0 x16, 3 PCIe 3.0 x1, *2 PCIe x16 slots are running at x16/NA or x8/x8 * 2 PCI,
M.2	M.2 Interface: 1 PCIe 3.0 x4 Form Factor: 2242/2260/2280 Key: M-Key
System BIOS
BIOS Type	AMI UEFI
BIOS Features	Plug and Play (PnP) DMI 2.3 PCI 3.0 ACPI 5.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 3.0 UEFI 2.3.1 RTC (Real Time Clock) Wakeup
Management
Software	SuperDoctor® 5, AMT, vPro, Watchdog
Power Configurations	Power-on mode for AC power recovery, ACPI Power Management, Keyboard Wakeup from Soft-Off, CPU Fan auto-off in sleep mode
PC Health Monitoring
Voltage	VBAT, Monitors CPU voltages, Chassis intrusion header, +5V, +3.3V, +12V
LED	UID/Remote UID Suspend static indicator LED CPU / System Overheat LED
Temperature	CPU thermal trip support Thermal Monitor 2 (TM2) support PECI I2C temperature sensing logic
FAN	5x 4-pin fan headers (up to 5 fans) Fan speed control Overheat LED indication
Other Features	WOL, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ATX Power connector, 8-pin 12v DC power connector, Intel Smart Response Technology
Operating Environment
Operating Temperature Range	0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range	-20°C - 60°C (-4°F - 140°F)

Standard Part List

Part Number	Quantity	Description
Bulk Package
I/O Shield
MCP-260-00063-1N	1	X11SAE I/O Shield
SATA cable
CBL-0044L	2	57.5CM SATA FLAT S-S PBF
Retail Package
I/O Shield
MCP-260-00063-1N	1	X11SAE I/O Shield
Quick Reference Guide
MNL-1820-QRG	1	X11SAE Quick Reference Guide
SATA cable
CBL-0044L	6	57.5CM SATA FLAT S-S PBF
