  2. X11SAN,Embed 3.5"SBC,Apollo Lake SoC Pentium N4200-SINGL

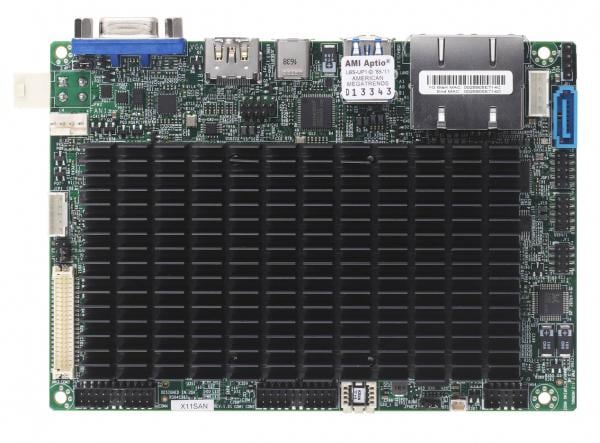

X11SAN,Embed 3.5"SBC,Apollo Lake SoC Pentium N4200-SINGL

MBD-X11SAN-O
https://safeconsulting.no/web/image/product.template/9890/image_1920?unique=5a19258

kr 2,859.19 2859.19 NOK kr 2,859.19

kr 2,859.19

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Summary Description

    The Supermicro MBD-X11SAN-O is a feature-rich motherboard designed with an Intel Pentium processor and support for up to 8GB DDR3L memory. It offers dual GbE LAN, multiple USB and SATA ports, and reliable onboard TPM 2.0 for enhanced security.

    Key Features

    • Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
    • Intel® Pentium™ Processor N4200 (6W, 4C)
    • 1 M.2 B-Key 2280, 1 Full size Mini-PCIe, 1 SATA 3.0
    • Dual GbE LAN with Intel® i210-AT
    • Intel® Goldmont microarchitecture 14nm System-on-Chip
    • 1 USB 3.1 Gen2 Type-C port, 2 USB 3.0 ports, 4 USB 2.0 ports, 4 COM ports, 1 SATA 3.0, 8-bit GPIO, SMBus
    • Supports 12V DC power input
    • 1 HDMI, 1 VGA, 1 48-bit LVDS, Intel® HD Graphic 3 independent displays
    • Supports on board TPM 2.0

    Key Applications

    • Embedded systems
    • Digital signage
    • Industrial automation
    • Medical devices
    • POS systems

    Description

    The Supermicro MBD-X11SAN-O motherboard is equipped with the Intel® Pentium™ Processor N4200 and supports up to 8GB DDR3L memory in a single DIMM socket. It features dual GbE LAN with Intel® i210-AT controllers and a wide range of I/O options including USB 3.1, SATA 3.0, HDMI, VGA, and more. The motherboard also integrates TPM 2.0 for robust security. Designed for efficiency, it supports 12V DC power input and is suitable for various applications including embedded systems, digital signage, and industrial automation.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11SAN
    Physical Stats
    Form Factor
    • 3.5" SBC
    Dimension
    • 5.7" x 4" (14.6cm x 10.16cm)
    Processor
    CPU
    • Intel® Pentium™ Processor N4200
    • Single Socket FCBGA-1296 supported, CPU TDP supports Up to 6W TDP
    System Memory
    Memory Capacity
    • 1 DIMM slots
    • Up to 8GB Unbuffered non-ECC SODIMM, DDR3-1866MT/s
    Memory Type
    • 1866 MT/s non-ECC DDR3 SODIMM Unbuffered DDR3L up to 8GB
    DIMM Sizes
    • 2GB, 4GB, 8GB
    Memory Voltage
    • 1.35V
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 1 SATA3 (6 Gbps) ports
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 Intel® HD Graphics port(s)
    Network Controllers
    • Dual LAN with Intel® Ethernet Controller I210-AT
    Input / Output
    SATA
    • 1 SATA3 (6Gbps) port(s)
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 1 USB 3.2 Gen2 port(s) (1 type C)
    • 4 USB 2.0 port(s) (4 via header)
    • 2 USB 3.0 port(s) (2 rear)
    Video Output
    • 1 VGA port(s), 1 HDMI port(s), 1 48-bit LVDS port(s)
    Serial Port
    • 4 COM Port(s) (4 header), (2 RS232, 2 RS232/422/485, RS-485 supports Auto flow control)
    TPM
    • 1 TPM Chip
    Others
    • 1 8-bit GPIO header
    • 1 SMBus header
    • 1 System Fan
    • 1 HD Audio header (Mic-in/headphone-Out)(Audio only support at 0~60C)
    • 1 Panel backlight power header
    • 1 Speaker
    Expansion Slots
    PCIe
    • 1 Full size Mini-PCIe (USB2.0 1,PCIe Gen2 x 1)
    • 1 M.2 2280 B-Key (PCIe Gen2 x 1,SATA x 1)
    M.2
    • M.2 Interface: SATA; PCIe 2.0 x1; USB 2.0
    • Form Factor: 2280
    • Key: B-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • Plug and Play (PnP)
    • DMI 2.3
    • ACPI 5.0
    • SMBIOS 2.7.1
    • UEFI 2.4
    Management
    Software
    • SuperDoctor® 5, Watchdog
    System Management Software
    • SuperDoctor 5
    Power Configurations
    • ACPI Power Management, +12V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper
    PC Health Monitoring
    Voltage
    • VBAT, System temperature, System level control, 3.3V standby, +5V, +3.3V, +12V, +1.35V, VCGI
    LED
    • Standby alert LED
    Temperature
    • CPU thermal trip support
    FAN
    • 1x 4-pin fan header (up to 1 fan)
    • Thermal control tachometer fan connectors
    • System level control
    • PWM fan speed control
    • Low noise fan speed control
    • Fan speed control
    Other Features
    • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 4-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range
    • 0°C - 60°C (32°F - 140°F)
    Non-Operating Temperature Range
    • -40°C - 85°C (-40°F - 185°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range
    • 10% - 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    Heatsink
    SNK-C0103L-11X11SAN Fanless Heatsink with height 19mm
    SATA cable
    CBL-SAST-08811SATA Data cable 25CM
    SATA Power Cable
    CBL-PWEX-09821SATA Power Cable 25cm
    Retail Package
    Audio Cable
    CBL-OTHR-09861Audio Cable 20cm
    COM Cable
    CBL-CUSB-09841COM Cable 20cm
    Heatsink
    SNK-C0103L-11X11SAN Fanless Heatsink with height 19mm
    QRG
    MNL-1935-QRG1Motherboard Quick Reference Guide
    SATA cable
    CBL-SAST-08811SATA Data cable 25CM
    SATA Power Cable
    CBL-PWEX-09821SATA Power Cable 25cm
    USB Cable
    CBL-CUSB-09831USB2.0 cable 20cm

    Optional Part List

    Part Number Quantity Description
    M.2 Module bracket
    MCP-290-00161-0N1Bracket for add 2242/3042 module support
    Mini PCIe extended bracket
    MCP-110-00097-0N1Mini PCIe extended bracket to extend half size to full size
