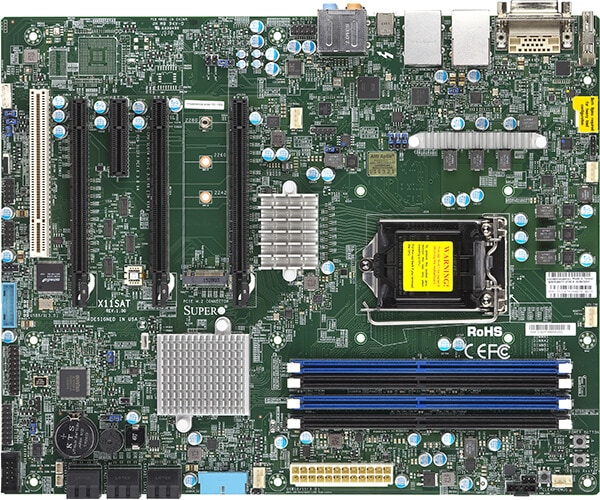

    Summary Description

    The Supermicro MBD-X11SAT-B is a versatile ATX motherboard featuring a single socket H4 (LGA 1151). It supports a wide range of Intel® processors, including Xeon® E3-1200 v5/v6, 6th/7th Gen Core™ i7/i5/i3, as well as Intel® Celeron® and Pentium® series processors. It is designed to maximize system performance with up to 64GB DDR4 memory and various I/O options.

    Key Features

    • Single socket H4 (LGA 1151) supportsIntel® Xeon® processor E3-1200 v5/v6,Intel® 6th/7th Gen. Core™ i7/i5/i3 series,Intel® Celeron® and Intel® Pentium®
    • Intel® C236 chipset
    • Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots
    • 3 PCIe 3.0 x16 (run at 16/NA/16 or 16/8/8), 1 PCIe 3.0 x1 (in x4), and 1 5V PCI 32-bit slots
    • 6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
    • M.2 NGFF connector
    • Single GbE LAN with Intel® i210-AT,Single GbE LAN with Intel® i219LM
    • 6 USB 3.0 (2 rear + 4 via header(s)) ,4 USB 2.0 (2 rear + 2 via header(s)),1 USB 3.1 (10Gbps) Type C ports (rear, share with Thunderbolt and display port)
    • I/O: 1 COM, TPM header

    Key Applications

    • High-performance computing
    • Server applications
    • Intel processor support
    • Network management
    • Data storage solutions

    Description

    The Supermicro MBD-X11SAT-B motherboard offers advanced features for high-performance computing. With support for Intel® Xeon® E3-1200 v5/v6 and 6th/7th Gen Core™ processors, this ATX motherboard is powered by the Intel® C236 chipset. It supports up to 64GB of DDR4 memory across 4 DIMM slots and offers versatile connectivity with 3 PCIe 3.0 x16 slots, one PCIe 3.0 x1 slot, and one 5V PCI 32-bit slot. Storage options include 6 SATA3 ports supporting RAID 0, 1, 5, and 10, and an M.2 NGFF connector. The motherboard is equipped with single GbE LAN via Intel® i210-AT and i219LM. Additionally, it features multiple USB ports, TPM header, and advanced cooling solutions with 5 fan headers.

    Product Specifications

    Specification Details
    Physical Stats
    Form Factor
    • ATX
    Dimension
    • 12" x 9.6" (30.48cm x 24.38cm)
    Processor
    CPU
    • Intel® Xeon® processor E3-1200 v6/v5, Intel® 6th/7th Generation Core™ i3 series, Intel® 6th/7th Generation Core™ i5 series, Intel® 6th/7th Generation Core™ i7 series
    • Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MT/s
    Memory Type
    • 2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
    DIMM Sizes
    • 4GB, 8GB, 16GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • Intel® C236
    SATA
    • Intel® C236 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    Audio
    • ALC 888S HD Audio
    Network Controllers
    • Single LAN with Intel® Ethernet Controller I210-AT, + Single Intel Ethernet PHY i219LM
    Input / Output
    USB
    • 4 USB 2.0 port(s) (2 via header; 2 rear)
    • 6 USB 3.1 Gen1 port(s) (2 rear; 4 via header)
    • 1 USB 3.1 Gen2 port(s) (1 rear type C)
    Video Output
    • 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 3 PCIe 3.0 x16,
    • 1 PCIe 3.0 x1
    • 1 - 5V PCI 32bit
    • ***3 PCIex16 slots are running at 16/NA/16 or 16/8/8.*** ***PCIe x1 is in x4 slot***
    M.2
    • M.2 Interface: 1 PCIe 3.0 x4
    • Form Factor: 2242/2260/2280
    • Key: M-Key
    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • Plug and Play (PnP)
    • DMI 2.3
    • PCI 3.0
    • ACPI 5.0
    • USB Keyboard support
    • Hardware BIOS Virus protection
    • SMBIOS 3.0
    • UEFI 2.3.1
    • RTC (Real Time Clock) Wakeup
    Management
    Software
    • SuperDoctor® 5, AMT, vPro, Watchdog
    Power Configurations
    • Power-on mode for AC power recovery, ACPI Power Management, Keyboard Wakeup from Soft-Off, CPU Fan auto-off in sleep mode
    PC Health Monitoring
    Voltage
    • VBAT, Monitors CPU voltages, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V
    LED
    • UID/Remote UID
    • Suspend static indicator LED
    • CPU / System Overheat LED
    Temperature
    • CPU thermal trip support
    • Thermal Monitor 2 (TM2) support
    • PECI
    • I2C temperature sensing logic
    FAN
    • 5x 4-pin fan headers (up to 5 fans)
    • Fan speed control
    • Overheat LED indication
    Other Features
    • WOL, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ATX Power connector, 8-pin 12v DC power connector, Intel Smart Response Technology
    Operating Environment
    Operating Temperature Range
    • 0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range
    • -20°C - 60°C (-4°F - 140°F)
    General
    Product SKUs- Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs.
    • MBD-X11SAT

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    IO shield
    MCP-260-00097-0N1X11SAT I/O Shield
    SATA cable
    CBL-0044L257.5CM SATA FLAT S-S PBF
    Retail Package
    IO shield
    MCP-260-00097-0N1X11SAT I/O Shield
    Quick Reference Guide
    MNL-1823-QRG1X11SAT Quick Reference Guide
    SATA cable
    CBL-0044L657.5CM SATA FLAT S-S PBF
