C246,Xeon-E/Core i3/Pentium/Celeron,LGA1151 Socket-H4,9

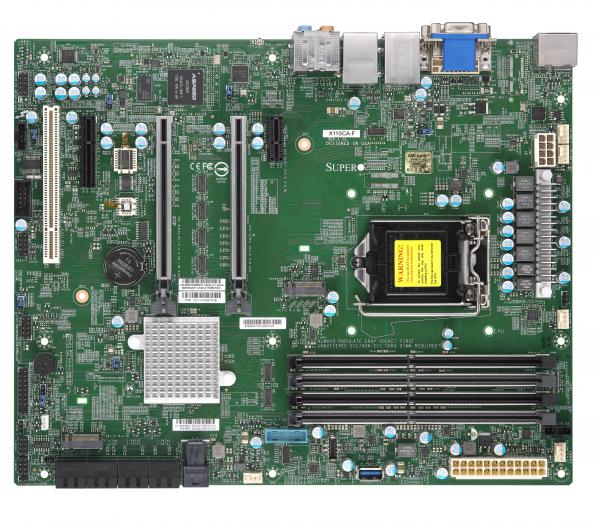

MBD-X11SCA-F-B
https://safeconsulting.no/web/image/product.template/9905/image_1920?unique=8d6572e

kr 3,731.22 3731.2200000000003 NOK kr 3,731.22

kr 3,731.22

Not Available For Sale

    This combination does not exist.

    Summary Description

    The Supermicro MBD-X11SCA-F-B motherboard is designed for performance and scalability, supporting Intel® Xeon E-2100/E-2200 processors, and 8th/9th Gen Intel® Core™, Pentium®, and Celeron® processors. It features multiple PCIe expansion slots, extensive I/O options, and robust on-board storage capabilities.

    Key Features

    • 8th/9th Gen Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® Processors, Intel® Xeon® E-2100 Processors, Intel® Xeon® E-2200 Processors, Single LGA-1151 (Socket H4), Up to 95W TDP
    • Intel® C246
    • Single LAN with Intel® Ethernet Controller I210-ATShared with IPMISingle LAN with Intel® PHY I219LM LAN controller
    • Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
    • 1 PCIe 3.0 x4,1 PCIe 3.0 x1,2 PCIex16 slots are running at NA/16, or 8/81 - 5V PCI 32bitM.2 Interface:2 PCIe 3.0 x4M.2 Form Factor:2242/2260/2280/22110M.2 Key:M-KeyM.2#1 is shared with PCIex4 slot, M.2#2 is shared with U.2U.2 Interface: 1 PCIe 3.0 x4
    • Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • 1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port, 1 VGA port,Intel UHD P630 graphic(For Xeon E-21xxG/E-22xxG series only)

    Key Applications

    • Servers
    • Workstations
    • High-Performance Computing
    • Network Appliances
    • Embedded Solutions

    Description

    The Supermicro MBD-X11SCA-F-B motherboard delivers high performance and flexibility for a wide range of applications. Equipped with Intel® C246 chipset, it supports a variety of Intel® processors including Xeon E-2100/E-2200 and 8th/9th Gen Core™, Pentium®, and Celeron® processors. It provides up to 128GB DDR4 memory in 4 DIMM slots, multiple PCIe slots, and comprehensive I/O options including USB, SATA, and video outputs. Integrated with robust network controllers and management software, this motherboard ensures reliable connectivity and efficient management.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • MBD-X11SCA-F
    Physical Stats
    Form Factor
    • ATX
    Dimension
    • 12" x 9.6" (30.48cm x 24.38cm)
    Processor
    CPU
    • Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor
    • Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MT/s
    Memory Type
    • 2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin
    DIMM Sizes
    • 2GB, 4GB, 8GB, 16GB, 32GB
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • Intel® C246
    SATA
    • Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2500
    Audio
    • ALC 888S HD Audio
    Graphics
    • 1 ASPEED AST2500 BMC port(s)
    Network Controllers
    • Single LAN with Intel® PHY I219LM LAN controller
    • Single LAN with Intel® Ethernet Controller I210-AT, Shared with IPMI
    Input / Output
    LAN
    • 2 1GbE LAN ports
    USB
    • 2 USB 2.0 port(s) (2 via header)
    • 4 USB 3.1 Gen1 port(s) (2 via header; 2 rear type A)
    • 4 USB 3.1 Gen2 port(s) (1 via header; 1 rear type C; 1 type A; 1 rear type A)
    Video Output
    • 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s)
    Serial Port
    • 1 COM Port(s) (1 header)
    DOM
    • 1 SATADOM(Disk on Module) power connector support
    TPM
    • 1 TPM Header
    Expansion Slots
    PCIe
    • 1 PCIe 3.0 x4,
    • 1 PCIe 3.0 x1,
    • 2 PCIex16 slots are running at NA/16, or 8/8
    • 1 - 5V PCI 32bit
    M.2
    • M.2 Interface: 2 PCIe 3.0 x4
    • Form Factor: 2242/2260/2280/22110
    • Key: M-Key
    System BIOS
    BIOS Type
    • 128MB UEFI
    Management
    Software
    • SuperDoctor® 5,SUM,SSM,IPMI2.0, Watchdog
    System Management Software
    • SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power Configurations
    • Power-on mode for AC power recovery, ACPI Power Management, ATX Power connector, Keyboard Wakeup from Soft-Off
    PC Health Monitoring
    Voltage
    • VBAT, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 5 -fan status, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
    LED
    • Standby alert LED
    FAN
    • PWM fan speed control
    • Low noise fan speed control
    • Fan speed control
    • 5 fans with tachometer status monitoring
    Other Features
    • WOL, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range
    • 0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range
    • -20°C - 60°C (-4°F - 140°F)

    Standard Part List

    Part Number Quantity Description
    Bulk Package
    IO shield
    MCP-260-00122-0N1X11SCA Series IO Shield
    M.2 SSD Holder
    MCP-450-00005-0B or MCP-450-00006-0B2M.2 SSD Holder
    SATA cable
    CBL-0044L2SATA3 Cable
    Retail Package
    IO shield
    MCP-260-00122-0N1X11SCA Series IO Shield
    M.2 SSD Holder
    MCP-450-00005-0B or MCP-450-00006-0B2M.2 SSD Holder
    Quick Reference Guide
    MNL-2087-QRG1X11SCA Series Quick Reference Guide
    SATA cable
    CBL-0044L6SATA3 Cable
