C246,Xeon-E/Core i3/Pentium/Celeron,LGA1151 Socket-H4,9

MBD-X11SCA-W-B
https://safeconsulting.no/web/image/product.template/9907/image_1920?unique=dec9d2d

kr 3,956.07 3956.07 NOK kr 3,956.07

kr 3,956.07

Not Available For Sale

    This combination does not exist.

    Summary Description

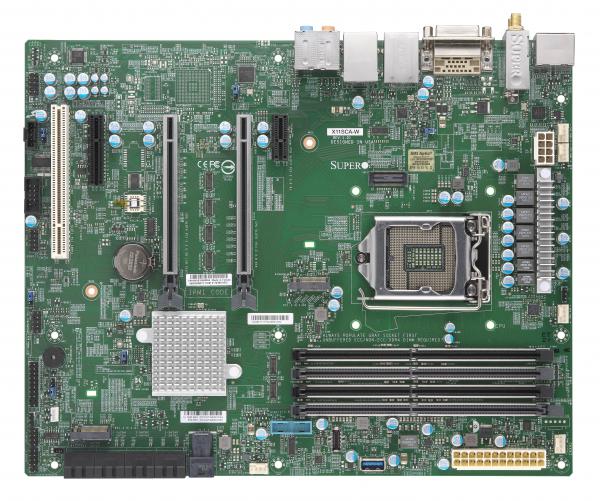

    Supermicro's MBD-X11SCA-W-B motherboard supports both Intel® Xeon® E-2100/E-2200 processors and 8th/9th Gen Intel® Core™ processors, making it suitable for a range of applications. With robust networking capabilities, extensive connectivity options, and advanced system management features, this motherboard ensures high performance and reliability.

    Key Features

    • 8th/9th Gen Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® Processors, Intel® Xeon® E-2100 Processors, Intel® Xeon® E-2200 Processors, Single LGA-1151 (Socket H4), Up to 95W TDP
    • Intel® C246
    • Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
    • 1 PCIe 3.0 x4,1 PCIe 3.0 x1,2 PCIex16 slots are running at NA/16, or 8/81 - 5V PCI 32bitM.2 Interface:2 PCIe 3.0 x4M.2 Form Factor:2242/2260/2280/22110M.2 Key:M-KeyM.2#1 are shared with PCIex4 slot, M.2#2 is shared with U.2U.2 Interface: 1 PCIe 3.0 x4
    • Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • 1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port,Intel UHD P630 graphic(For CPU Xeon E-21XXGE-22XXG series only)
    • Single LAN with Intel® Ethernet Controller I210-ATSingle LAN with Intel® PHY I219LM LAN controllerSupport vProSingle LAN withGigabit LAN WiFi + Bluetooth 5.0

    Description

    The Supermicro MBD-X11SCA-W-B is engineered to support Intel® Xeon® E-2100/E-2200 processors as well as 8th/9th Generation Intel® Core™ i9/i7/i5/i3, Pentium®, and Celeron® processors. This ATX form factor motherboard is equipped with up to 128GB Unbuffered ECC/non-ECC DDR4-2666MHz memory in 4 DIMM slots, making it ideal for demanding applications. It features Intel® C246 chipset and eight SATA3 (6 Gbps) ports, supporting RAID 0, 1, 5, and 10 for enhanced storage capabilities. The MBD-X11SCA-W-B also includes 1 HDMI, 1 DVI-D, and 1 DisplayPort, providing multiple high-definition video output options, and it is equipped with robust networking capabilities including dual Gigabit LAN ports and onboard WiFi and Bluetooth 5.0.

    Product Specifications

    Product SKUs
    MBD-X11SCA-W
    Physical Stats
    Form FactorATX
    Dimension12" x 9.6" (30.48cm x 24.38cm)
    Processor
    CPUIntel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor
    Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
    System Memory
    Memory Capacity4 DIMM slots
    Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MT/s
    Memory Type2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin
    DIMM Sizes2GB, 4GB, 8GB, 16GB, 32GB
    Memory Voltage1.2V
    On-Board Devices
    ChipsetIntel® C246
    SATAIntel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    AudioALC 888S HD Audio
    Network ControllersSingle LAN with Intel® Ethernet Controller I210-AT, Support vPro
    Single LAN
    Single LAN with Intel® PHY I219LM LAN controller, Gigabit LAN WiFi + Bluetooth 5.0
    Input / Output
    LAN2 1GbE LAN ports
    USB2 USB 2.0 port(s) (2 via header)
    4 USB 3.1 Gen1 port(s) (2 via header; 2 rear type A)
    4 USB 3.1 Gen2 port(s) (1 via header; 1 rear type C; 1 type A; 1 rear type A)
    Video Output1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s)
    Serial Port1 COM Port(s) (1 header)
    DOM1 SATADOM(Disk on Module) power connector support
    TPM1 TPM Header
    Expansion Slots
    PCIe1 PCIe 3.0 x4,
    1 PCIe 3.0 x1,
    2 PCIex16 slots are running at NA/16, or 8/8
    1 - 5V PCI 32bit
    M.2M.2 Interface: 2 PCIe 3.0 x4
    Form Factor: 2242/2260/2280/22110
    Key: M-Key
    System BIOS
    BIOS Type128MB UEFI
    Management
    SoftwareSuperDoctor® 5, AMT, vPro, Watchdog
    System Management SoftwareSuperDoctor 5
    Power ConfigurationsPower-on mode for AC power recovery, ACPI Power Management, ATX Power connector, Keyboard Wakeup from Soft-Off
    PC Health Monitoring
    VoltageVBAT, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 5 -fan status, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
    LEDStandby alert LED
    FANPWM fan speed control
    Low noise fan speed control
    Fan speed control
    5 fans with tachometer status monitoring
    Other FeaturesWOL, RoHS, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, 8-pin 12v DC power connector
    Operating Environment
    Operating Temperature Range0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range-20°C - 60°C (-4°F - 140°F)

    Standard Part List

    Bulk Package
    IO shield
    Part NumberQuantityDescription
    MCP-260-00122-0N1X11SCA Series IO Shield
    M.2 SSD Holder
    Part NumberQuantityDescription
    MCP-450-00005-0B or MCP-450-00006-0B2M.2 SSD Holder
    SATA cable
    Part NumberQuantityDescription
    CBL-0044L2SATA3 Cable
    WiFi+BT Antenna
    Part NumberQuantityDescription
    CBL-ANTDB-SMA2WiFi and Bluetooth Antenna Set(2 pcs a set)
    Retail Package
    IO shield
    Part NumberQuantityDescription
    MCP-260-00122-0N1X11SCA Series IO Shield
    M.2 SSD Holder
    Part NumberQuantityDescription
    MCP-450-00005-0B or MCP-450-00006-0B2M.2 SSD Holder
    Quick Reference Guide
    Part NumberQuantityDescription
    MNL-2087-QRG1X11SCA Series Quick Reference Guide
    SATA cable
    Part NumberQuantityDescription
    CBL-0044L6SATA3 Cable
    WiFi+BT Antenna
    Part NumberQuantityDescription
    CBL-ANTDB-SMA2WiFi+BlueTooth Antenna(2 pcs a set)
