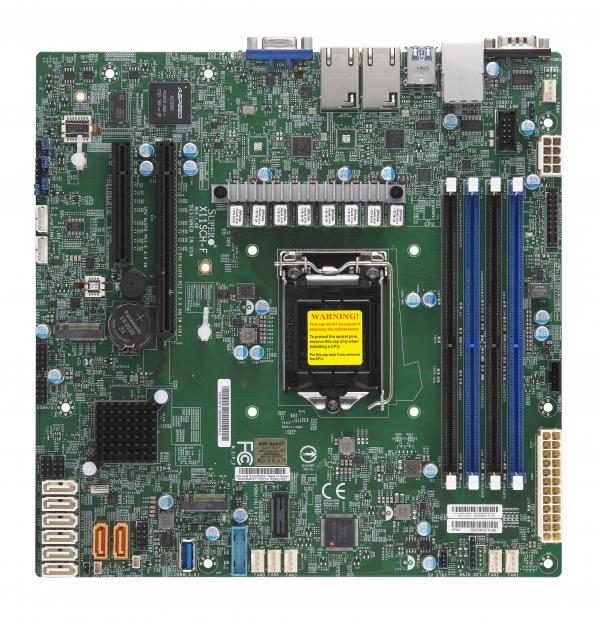

CFL Xeon E processor family,SKT LGA1151,C246 chipset,4xD

Name: CFL Xeon E processor family,SKT LGA1151,C246 chipset,4xD
Brand: supermicro
SKU: MBD-X11SCH-F-B
Price: 3342.07 NOK
Availability: BackOrder

SKU:

MBD-X11SCH-F-B

kr 3,342.07 3342.07 NOK kr 3,342.07

kr 3,342.07

This combination does not exist.

ADD TO CART

Terms and Conditions

Summary Description

The Supermicro MBD-X11SCH-F-B is designed to support 8th and 9th Generation Intel® Core™ i3/Pentium®/Celeron® processors, along with Intel® Xeon® E-2100 and E-2200 processors. This Micro-ATX motherboard offers up to 128GB of DDR4 ECC UDIMM memory, dual Gigabit LAN ports, multiple USB ports, and extensive I/O options, ensuring robust performance and flexibility for a variety of applications.

Key Features

8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
Intel® C246 chipset
Up to 128GB DDR4 2666MHz ECC UDIMM; 4 DIMM slots
Expansion slots: 1 PCIe 3.0 x8 (in x16) and 1 PCIe 3.0 x8 slots
2x M.2 NGFF connectorsM.2 Interface:PCIe 3.0 x4Form Factor: 2280, 22110Key: M-Key
8 SATA3 (6Gbps) via C246; RAID 0, 1, 5, 10
2 USB 3.1 Gen 2 (rear); 3 USB 3.1 Gen 1 (1 Type A, 2 via header(s)); 6 USB 2.0 (2 rear, 4 via header(s))
Dual GbE LAN ports via Intel® i210
I/O: 1 VGA, 2 COM, TPM header
2 SuperDOM with built-in power

Key Applications

Business workstations
High-performance computing
Home servers
Network-attached storage

Description

Supermicro's MBD-X11SCH-F-B motherboard delivers outstanding performance and reliability, supporting 8th/9th Gen Intel® Core™ i3/Pentium®/Celeron® and Intel® Xeon® E-2100/E-2200 processors. This Micro-ATX board features Intel® C246 chipset, dual LAN ports, multiple USB 3.1 and 2.0 ports, and 8 SATA3 ports with RAID support. It also includes 4 DIMM slots, allowing up to 128GB DDR4 ECC UDIMM memory, M.2 connectivity, and advanced management capabilities. Ideal for both business and home environments, this motherboard provides essential functionality and advanced features.

Product Specifications

Specification	Details
Product SKUs
SKUs	MBD-X11SCH-F
Physical Stats
Form Factor	Micro-ATX
Dimension	9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU	8th/9th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
Core	Up to 8 cores, 16 threads
System Memory
Memory Capacity	4 DIMM slots Up to 128GB ECC , DDR4-2666MT/s
Memory Type	2666/2400/2133 MT/s SDRAM 72-bit,
DIMM Sizes	4GB, 8GB, 16GB, 32GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors
On-Board Devices
Chipset	Intel® C246
SATA	Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2500
Graphics	1 ASPEED AST2500 BMC port(s)
Network Controllers	Dual LAN with Intel® Ethernet Controller I210
Input / Output
SATA	8 SATA3 (6Gbps) port(s)
LAN	2 RJ45 Gigabit Ethernet LAN ports
USB	6 USB 2.0 port(s) (4 via header; 2 rear) 3 USB 3.1 Gen1 port(s) (2 via header; 1 type A) 2 USB 3.1 Gen2 port(s) (2 rear)
Video Output	1 VGA port(s)
Serial Port	2 COM Port(s) (1 header; 1 rear)
TPM	1 TPM Header
Expansion Slots
PCIe	1 PCIe 3.0 x8 (in x16 slot), 1 PCIe 3.0 x8
M.2	M.2 Interface: PCIe 3.0 x4 Form Factor: 22110, 2280 Key: M-Key
System BIOS
BIOS Type	256MB UEFI
BIOS Features	ACPI 6.0 SMBIOS 2.7 Plug and Play (PnP) RTC (Real Time Clock) Wakeup UEFI 2.7 USB Keyboard support PCI 3.0
Management
Software	SuperDoctor® 5, NMI,SUM,SPM, Intel® Node Manager,SSM,IPMI2.0, Watchdog
System Management Software	IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations	Power-on mode for AC power recovery, ACPI Power Management
PC Health Monitoring
Voltage	VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
LED	UID/Remote UID CPU / System Overheat LED
FAN	6x 4-pin fan headers (up to 6 fans) Thermal control tachometer fan connectors Fan speed control 6 fans with tachometer status monitoring Overheat LED indication
Other Features	WOL, UID, Node Manager Support, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ACPI power management
Operating Environment
Operating Temperature Range	0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)

Standard Part List

Part Number	Quantity	Description
Bulk Package
I/O Cables
CBL-0044L	2	57.5CM SATA FLAT S-S PBF
I/O Shield
MCP-260-00042-0N	1	STD I/O Shield for X11SCH-F with EMI Gasket
Retail Package
I/O Cables
CBL-0044L	6	57.5CM SATA FLAT S-S PBF
I/O Shield
MCP-260-00042-0N	1	STD I/O Shield for X11SCH-F with EMI Gasket
QRG
MNL-2105-QRG	1	Motherboard Quick Reference Guide

Optional Part List

Part Number	Quantity	Description
TPM security module
AOM-TPM-9670V	-	SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
AOM-TPM-9671V	-	SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
AOM-TPM-9670H	-	SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
AOM-TPM-9671H	-	SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
